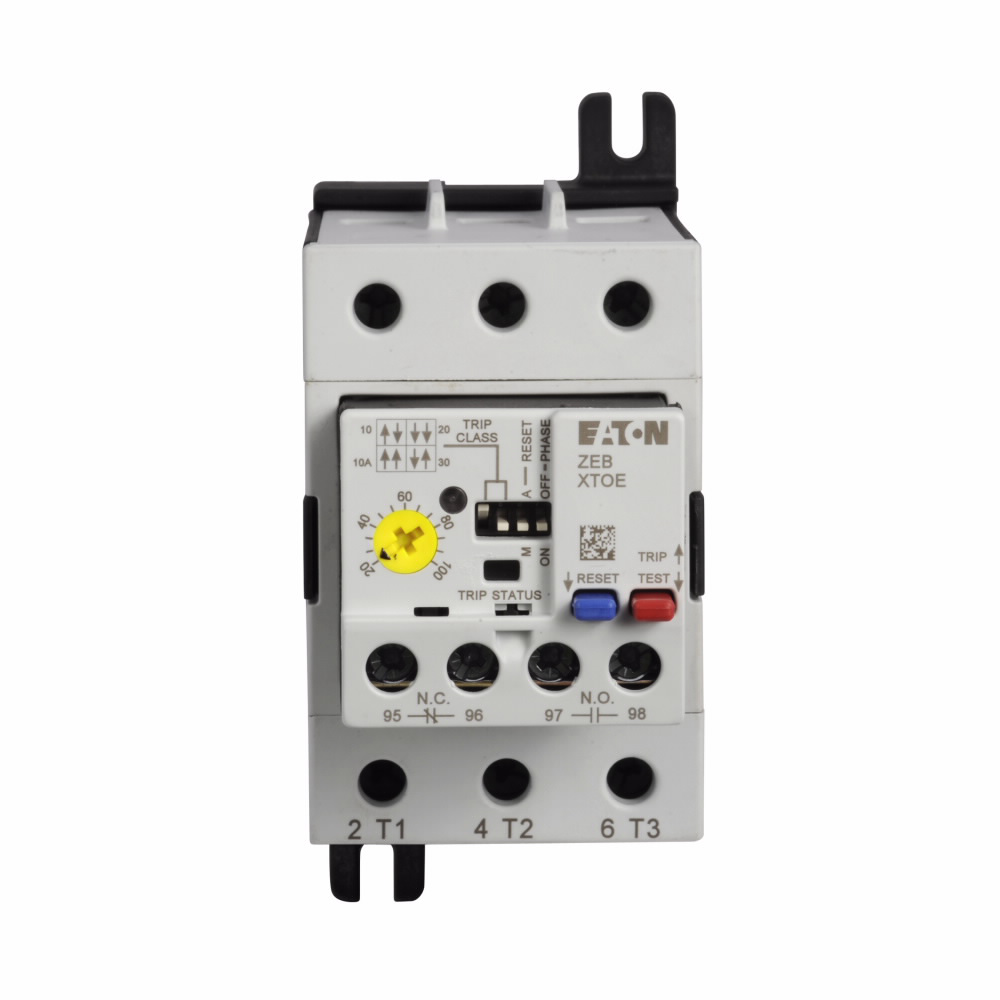

Eaton XTOE100GCS ETN XTOE100GCS C445 Access 20-100A

Product Description

The Eaton XTOE100GCS is an electronic overload relay designed for motor protection. This relay operates within an overload range of twenty to one hundred amps. It features a frame size of one hundred five millimeters and uses a normally open and normally closed contact configuration. It mounts directly to contactors and offers selectable trip types of ten Amps, ten, twenty, or thirty Amps.

• Overload range: twenty to one hundred amps
• Frame size: one hundred five millimeters
• Direct contactor mounting

Product Highlights

This relay provides automatic motor protection and electronic thermal modeling for precise operation.

Product Information

Standard Information

• Brand: Eaton
• Manufacturer Part Number: XTOE100GCS

Technical Specifications

• Amperage Rating: 20-100 A
• Frame Size: 105 mm
• Contact Configuration: 1 NO - 1 NC
• Trip Type: Selectable 10 A, Class 10, 20, 30
• Mounting Type: Direct
• Applications: Commercial, Institutional Buildings
• Standards/Approvals: CSA Certified, EN 60947, UL Listed, RoHS Compliant
• Coil Voltage: 600 VAC, 12 VDC
