Eaton XTOBP60BC1 Thermal Overload Relay 0.4-0.6 A (Frame B)

EATON
Brand: EATON
SKU: XTOBP60BC1
Availability: In Stock

Ships same day if ordered by 12 pm
$78.40
$78.40
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

Eaton XTOBP60BC1 is an IEC-rated thermal overload relay for protection of three-phase motors. It employs a bimetallic thermal element with a Class 10 trip characteristic and an adjustable full-load current setting of 0.4–0.6 A to detect overload, phase asymmetry, and phase failure. The size B device is intended for use with XT series contactors and provides manual or automatic reset options and auxiliary contact outputs for control signaling.

  • IEC-rated bimetallic thermal overload relay with Class 10 trip characteristic; protects against overload, phase asymmetry and phase failure
  • Adjustable current range 0.40–0.60 A; frame B sizing for use with XTCE007/009/012/015 contactors
  • Manual or automatic reset options; provides auxiliary contacts (1 NO, 1 NC); requires Pozidriv screwdriver size 2 for adjustments

Product Highlights

IEC-rated bimetallic thermal overload relay, Class 10, adjustable 0.4–0.6 A, compatible with XT series B-frame contactors

Product Information

Standard Information

  • Brand: EATON
  • Manufacturer Part Number: XTOBP60BC1
  • Country of Origin: Germany
Technical Specifications
Brand
EATON
MPN
XTOBP60BC1
Product Type
Thermal overload relay
Series
XTOB / XT
Trip Class
Class 10
Frame Size
B
Current Rating
0.4 - 0.6 A
Poles
3
Auxiliary Contacts
1 NO, 1 NC
Reset Type
Manual / Automatic
Mounting Type
Direct mount to XT series contactors
Compatible Contactors
XTCE007, XTCE009, XTCE012, XTCE015
Connection Type
Wire
Ambient Operating Temperature
-13 to 131 °F
Approvals
ATEX, CE, CSA, UL

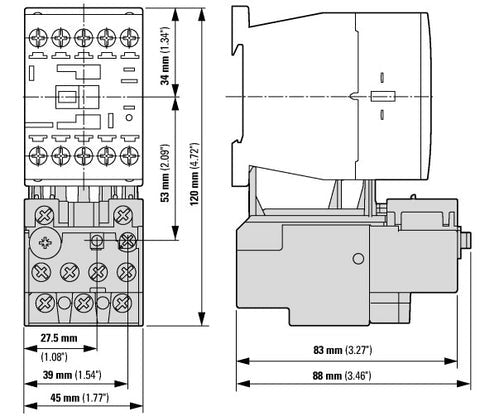

Dimensions (H x W x D)
1.81" x 2.84" x 3.82"
Weight
0.30 lbs
Country of Origin
Germany
UPC
4015082784348
RoHS Compliance
Compliant
Tools Required
Pozidriv screwdriver size 2
