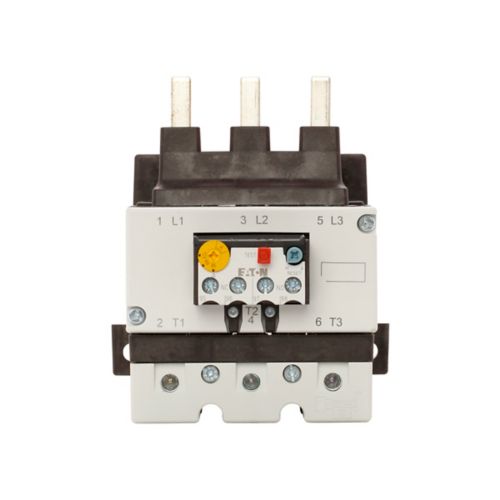

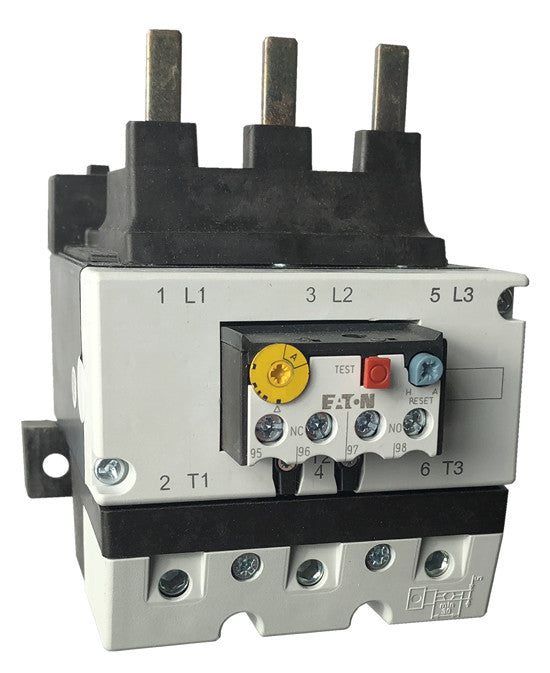

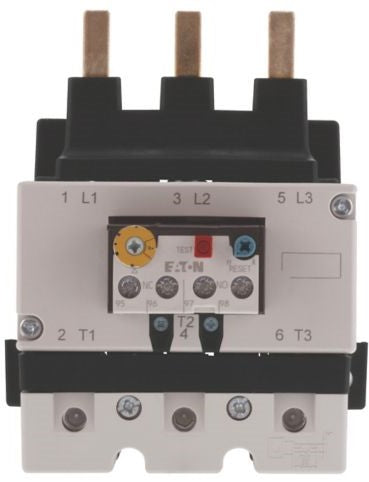

Eaton XTOB125GC1 Overload Relay 95-125A

Product Description

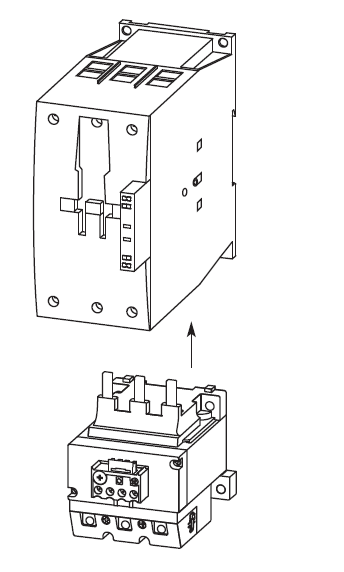

The Eaton XTOB125GC1 overload relay is an IEC-rated thermal overload relay designed for the protection of three-phase motors. It reliably protects loads against overload, phase asymmetry, and phase failure. It features Class 10 tripping and can be directly mounted to any Eaton XTCE095F, XTCE115G or XTCE150G 3 pole contactor.

• Protects three-phase motors
• Protects against overload, phase asymmetry, and phase failure
• Selectable Manual or Automatic Reset

Product Highlights

The EATON XTOB125GC1 overload relay offers efficient motor protection with Class 10 tripping and direct mounting to contactors.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: XTOB125GC1

Technical Specifications

• Manufacturer: EATON
• Brand: EATON
• Product Group: BISS
• Product Type: Overload Relay
• MPN: XTOB125GC1

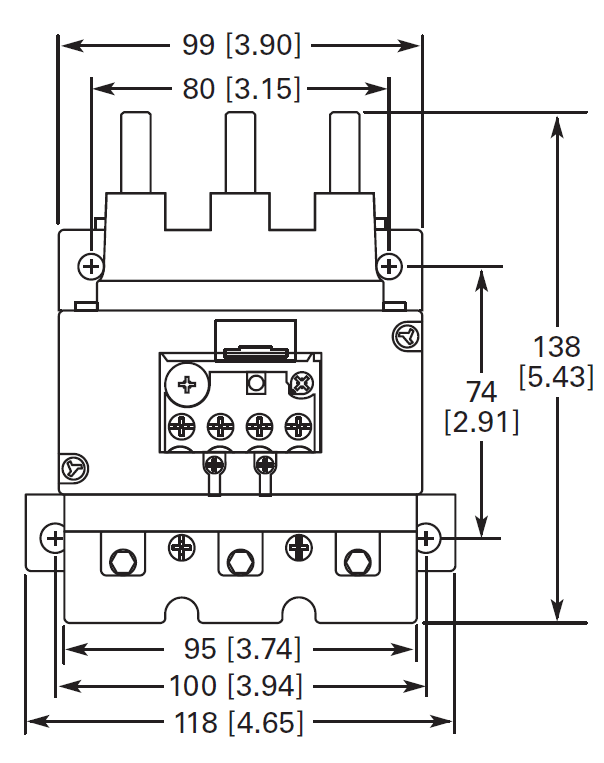

• Product Length/Depth: 5.28 in
• Product Height: 5.43 in
• Product Width: 4.65 in
• Compliances: ATEX Compliant CE Marked RoHS Compliant
• Certifications: UL Listed CSA Certified IEC 60947 EN 60947
• Overload range: 95-125 A
• Frame size: 90 mm
• Mounting: Direct
• For Use With: XTCE080 - XTCE0150 Contactors
• Amp Range: 95 - 125
• Class: 10
• Size: G
• Connects to: XTCE095F / XTCE115G XTCE150G
• Auxiliaries: 1 N.O. / 1 N.C.
• Reset: Manual or Automatic
• Trip Class: 10 (10 seconds or less)
• Poles: 3
• Type: NEMA, Thermal, IEC, Overload Relay
• Amps Range: 90 - 125
• Overload Current Min: 95A
• Overload Current Max: 125A
• Product Range: XT Series
