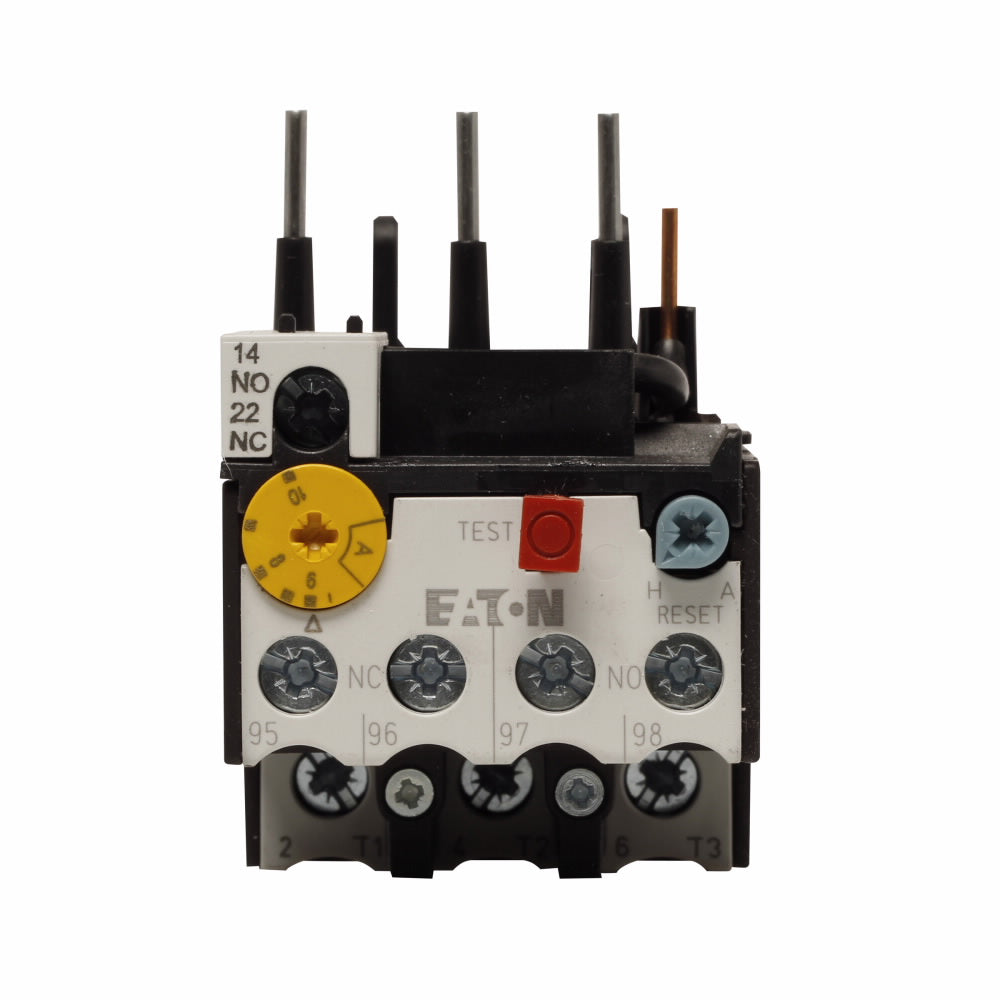

Eaton XTOB010CC1 Overload Relay 6-10A Frame C Class 10

Product Description

The Eaton XTOB010CC1 Thermal Overload Relay is designed for robust motor protection. Engineered to safeguard motors in industrial settings, this relay is suitable for stationary machinery, pumps, and compressors applications.

• Bi-metallic thermal protection mechanism to prevent motor overheating.
• Dual contact configuration with 1NO-1NC offers reliable performance.
• Designed for direct mounting to contactors within a compact frame design.

Product Highlights

This Eaton model is a highlight of the XT series, known for its space-saving design and efficient control options including both metallic and non-metallic enclosures. Compatible with 18-32A contactors, it supports a trip class of 10A.

Product Information

Standard Information

• Brand: Eaton
• MPN: XTOB010CC1
• Mounting Type: Direct

Technical Specifications

• Amperage Rating: 6 to 10 A
• Temperature Range: -13 to 131 degrees Fahrenheit
• Standards/Approvals: EN 60947, IEC 60947, CSA Certified, UL Listed, CE Marked, ATEX Compliant, RoHS Compliant
• Contact Form: 1NO-1NC
• Country of Origin: Germany
