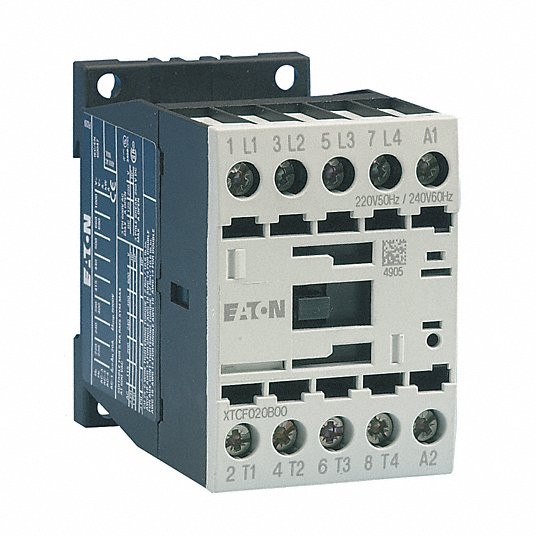

Eaton XTCF020B00A Xt Iec Contactor 20A (45 mm)

EATON
Brand: EATON
SKU: XTCF020B00A
Availability: In Stock

Ships same day if ordered by 12 pm
$208.51
$208.51
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

The Eaton XTCF020B00A XT IEC contactor is a full voltage non-reversing contactor with a 20A amperage rating. It is designed for connecting and disconnecting power to motors and other high-current equipment. This four-pole contactor is suitable for various applications and features screw terminals for easy connection.

  • Amperage Rating: 20A
  • Coil Voltage: 110-120 Vac, 50/60 Hz
  • Four-pole configuration

Product Highlights

The Eaton XTCF020B00A contactor is UL Listed, CSA Certified, and IEC 60947/EN 60947 compliant.

Product Information

Standard Information

  • Brand: EATON
  • Manufacturer Part Number: XTCF020B00A
  • Country of Origin: Romania
Technical Specifications
SKU
XTCF020B00A
Product Name
Eaton XT IEC contactor
Catalog Number
XTCF020B00A
EAN
4015082769673
Product Length/Depth
2.75 in
Product Height
2 in
Product Width
3 in
Product Weight
0.48501698 lb
Compliances
RoHS Compliant CE Marked
Certifications
UL Listed CSA Certified IEC 60947 EN 60947
Catalog Notes
Screw terminals (6-65A); 5 mm (80-150A); no lugs (185-2000A)
Product Type
Contactors
Amperage Rating
20A
HP rating - max
1, 2/3, 3, 10, 10 hp (1/3PH @115,230/200,230,460,575 V)
Number of poles
4
Type
Full voltage non-reversing contactor
Frequency rating
50-60 Hz
Frame size
45 mm
Terminals
Screw terminals
Coil Voltage
110-120 Vac, 50/60 Hz
Contact configuration
0 NO, 0 NC
Continuous ampere rating
20 A
Series
XT IEC
Operation
Non-reversing
Mounting Style
DIN Rail Mount
Current Type
AC
Maximum Amperage
20 A
Current Rating
20 A
Number of Poles
4-Pole
Volts AC Control
110/120
Mounting
Panel, DIN Rail
Amps
20
Poles
4
Volts AC
600
Size
45 mm
UNSPSC
39121529
Mounting Type
DIN Rail/Panel
Terminal Type
Screw
Maximum Load Current
20
Contactor Style
IEC
Reversing Capability
Non-Reversing
Main Power Pole Contact Form
4NO
Includes Auxiliary Contacts
No
Auxiliary Contacts Included
None
Full Load Current - Inductive
12 A
Full Load Current - Resistive
22 A
Nominal Coil Voltage @ 60Hz
120V AC
Maximum Voltage Rating
690V AC
Horsepower @ Single Phase - 120V AC
1 hp
Horsepower @ Single Phase - 240V AC
2 hp
Horsepower @ Three Phase - 208V AC
3 hp
Horsepower @ Three Phase - 240V AC
3 hp
Horsepower @ Three Phase - 480V AC
10 hp
Horsepower @ Three Phase - 600V AC
10 hp
Wire Termination Type
Screw
Integrated Surge Suppression
Yes
IP Rating
IP20
NEMA Enclosure Rating
No
Enclosure
None
Frame Size
B
Overall Height
2 in
Overall Width
3 in
Overall Depth
2.75 in
Mechanical Operating Durability
10,000,000
Minimum Operating Temperature
-13 °F
Maximum Operating Temperature
122 °F
Standards
CE; CSA; EN 60947; IEC 60947; RoHS; UL Listed
Manufacture
EATON
Mfr Catalog Number
XTCF020B00A
Product Group
SCC0A
UPC
01508276967
Product UPC
01508276967
EAN / GTIN
4015082769673
Product Category
Magnetic Contactor
Commodity Code
4112
