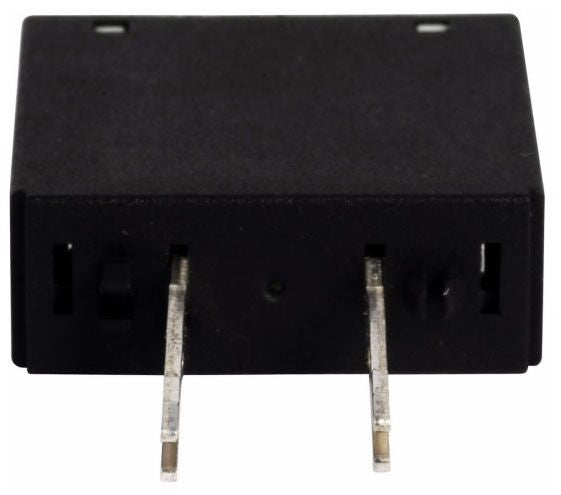

Eaton XTCEXRSBA Rc Type Remote Reset Module

Product Description

The EATON XTCEXRSBA is an RC type remote reset module designed for use with compatible EATON overload relay systems. This accessory allows technicians to remotely reset a tripped overload relay without direct access to the relay itself, reducing downtime in industrial and commercial electrical installations. The module integrates into the relay's control circuit and is installed by licensed electricians or qualified control panel technicians working on motor protection and starter assemblies.

The XTCEXRSBA is suited for industrial motor control applications where overload relays protect motors from sustained overcurrent conditions. Remote reset capability is particularly valuable in installations where the overload relay is mounted inside a locked enclosure, at height, or in a location that is difficult to access during normal operation. This module supports efficient service workflows in manufacturing, commercial HVAC, and process control environments.

Key Features

• RC type remote reset function for compatible EATON overload relays
• Eliminates the need for direct physical access to the relay to reset after a trip event
• Designed for integration into motor control and starter panel assemblies
• Compact accessory module for straightforward field installation

Compatibility

Designed as an OEM-style accessory module for compatible EATON overload relay platforms. Refer to EATON product documentation to confirm fitment with your specific relay model before ordering.

Installation Notes

Installation should be performed by a licensed electrician in accordance with applicable NEC requirements. De-energize the motor control circuit and verify zero voltage before handling the relay or installing this module. Follow the relay manufacturer's wiring diagram for remote reset circuit connections. Do not attempt installation or reset operations while the panel is energized.

Technical Specifications

• Type: RC Remote Reset Module
• UPC: 01508147468

Standard Information

• Brand: EATON
• Manufacturer Part Number: XTCEXRSBA
