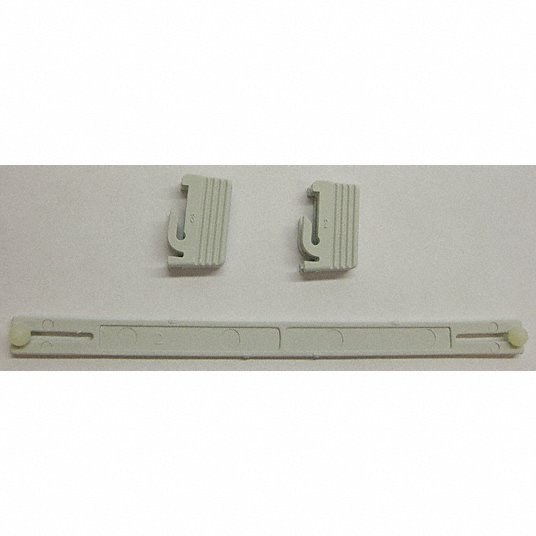

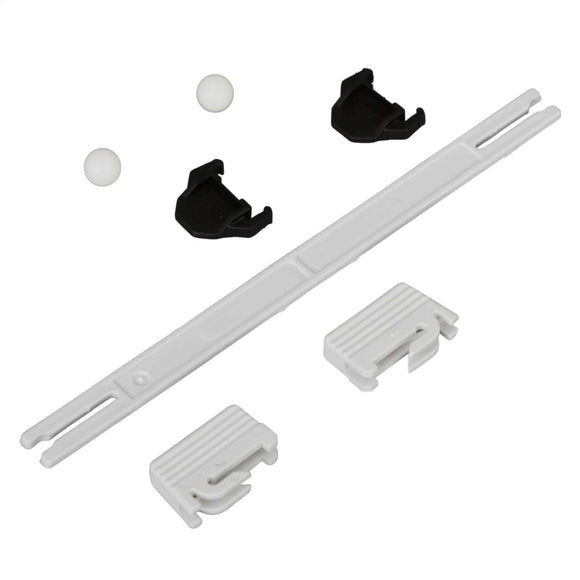

Eaton XTCEXMLC Mechanical Interlock

Product Description

The EATON XTCEXMLC is a mechanical interlock designed for use with XTCE017 - XTCE032 contactors and DILA contactor relays. It is also compatible with Eaton contactors and motor starters, specifically the XTCE018C to XTCE032C series. This accessory ensures safety and reliability in electrical applications.

• Compatible with XTCE018C to XTCE032C and XTCF032C to XTCF045C Series B to N Frame IEC Contactors and Starters.
• Also compatible with CN13BN0 to CN13CN0 Series NEMA Contactors and Starters.
• Operates within a voltage range of 200 to 575 VAC.

Product Highlights

The EATON XTCEXMLC mechanical interlock enhances motor control systems with seamless compatibility for IEC and NEMA contactors and starters.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: XTCEXMLC
• Country of Origin: Romania

Technical Specifications

• Product Name: Eaton motor control mechanical interlock
• Catalog Number: XTCEXMLC
• EAN: 4015082811976
• Product Length/Depth: 3 in
• Product Height: 0.25 in
• Product Width: 3 in
• Compliances: CE Marked ATEX Compliant CCC Marked
• Certifications: IEC 60947 EN 60947 UL Listed CSA Certified
• Catalog Notes: For two horizontally mounted contactors with AC or DC operated magnet system. B-G frame lifespan = 2.5x106 operations, 0mm distance between contactors. L-N frame lifespan = 5x106 operations, 15mm distance between contactors.
• Global Catalog: XTCEXMLC
• Product Type: Motor control renewal parts/accessories
• Type: Mechanical Interlock
• Brand: EATON
• Manufacturer Part Number: XTCEXMLC
• Compatible with Series: XT; XTCE018C to XTCE032C
• Accessory Type: Mechanical Interlock
• Frame Size: B; C; D; E; F; G; L; M; N
• UNSPSC: 39121529
• Manufacturer: Eaton Electrical
• Approvals: CSA, IEC, UL
• Category: Relays
• Part Status: Active
• Packaging: Box
• For Use With/Related Products: XTCE Series
• For use with: XTCE017 - XTCE032 contactors and DILA contactor relays
• Part: Mechanical Link
• Dimensions: 3 in L x 3 in W x 1/4 in H
• Specifications: 200 to 575
• Suitable For Use With: XTCE018C to XTCE032C and XTCF032C to XTCF045C Series B to N Frame IEC Contactor and Starter, CN13BN0 to CN13CN0 Series NEMA Contactor and Starter, Motor Control
