Eaton XTCEXFAC22 Auxiliary Contact 16A

Product Description

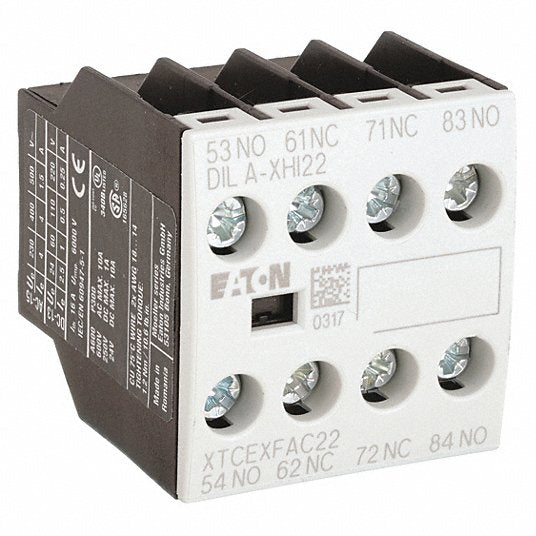

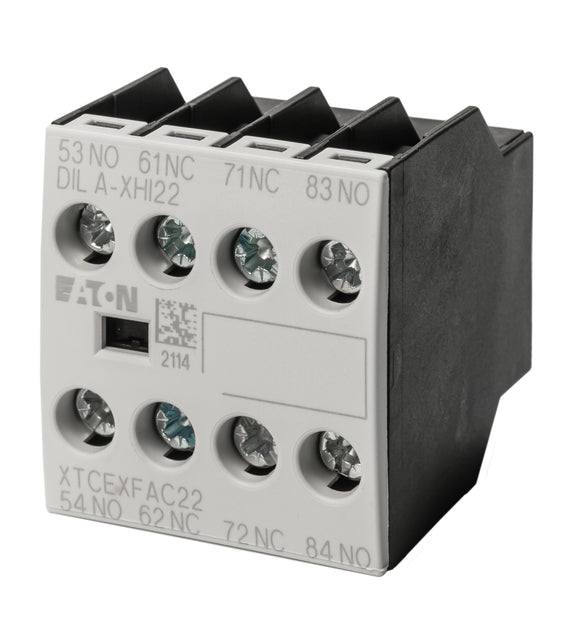

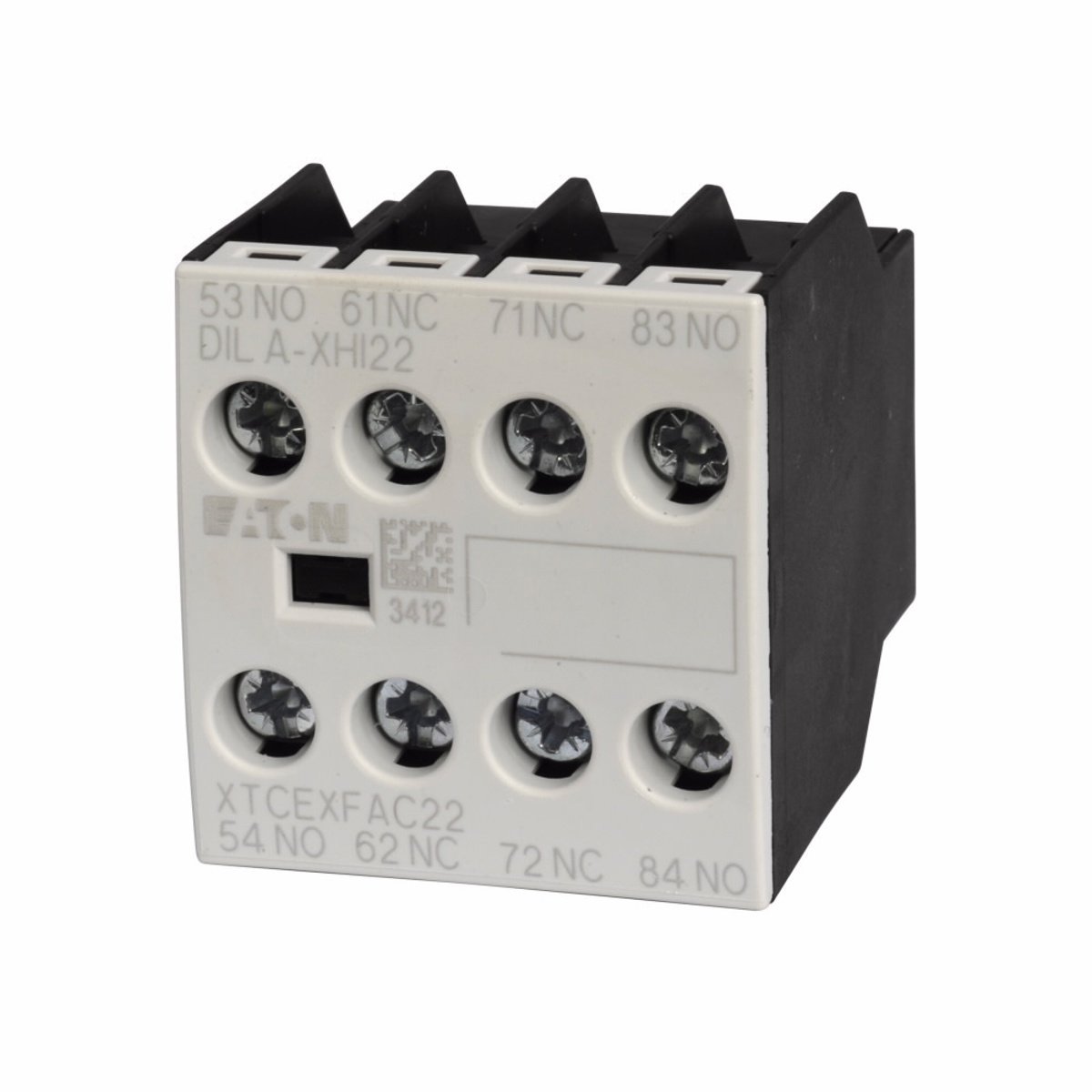

The EATON XTCEXFAC22 is an auxiliary contact designed for use with XT contactor frames B-C. This four-pole auxiliary contact features screw terminals and a 2NO-2NC contact configuration. It has a conventional thermal rating of 16A and is designed for front mounting.

• Four-pole auxiliary contact
• Screw terminals for secure connections
• Front mounting for easy installation

Product Highlights

This auxiliary contact block features interlocked opposing contacts and is a genuine new OEM part.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: XTCEXFAC22
• Country of Origin: Romania

Technical Specifications

• Amps: 16 A
• Item: Auxiliary Contact
• Type: Auxiliary Contact
• Depth: 1-1/2 in
• Width: 2-1/2 in
• Height: 1-1/2 in
• Voltage: 690 V AC/220 V DC
• Mounting: Front
• Standards: IEC 60947, CE Marked
• For Use With: XT Contactor Frame B-C
• Product Type: Auxiliary Contact
• Number of Contacts: 4
• Max. Contact Blocks (No.): 1
• Number of NC Aux. Contacts: 2
• Number of NO Aux. Contacts: 2
• Contact Configuration: 2NO-2NC
• Poles: Four-pole
• Terminals: Screw terminals
• Conventional Thermal Rating: 16A
• Rated Operational Voltage: 6A at 220/230/240V, 3A at 380/400/415V, 1.5A at 500V
• Product Name: Eaton motor control auxiliary contact
• Catalog Number: XTCEXFAC22
• UPC: 786689004965
• EAN: 4015082764265
• Compliances: CE Marked ATEX Compliant CCC Marked
• Certifications: IEC 60947 EN 60947 UL Listed CSA Certified
• Global Catalog: XTCEXFAC22
• Used with: XTRE control relays
• Conventional thermal current: 16A
• Brand: EATON
• Manufacturer Part Number: XTCEXFAC22
• Compatible with Series: XTRE Control Relays
• Mounting Location: Front
• Number of Poles: 4
• Auxiliary Contact Form: 2NO/2NC
• Max Current (AC): 16 A
• Maximum Voltage Rating: 500V AC
• Terminal Connection Type: Screw Clamp
• UNSPSC: 39121529
