Eaton XTCEXFAC02 Auxiliary Contact, Front Mount Aux, Frame B-C, 2Nc

Product Description

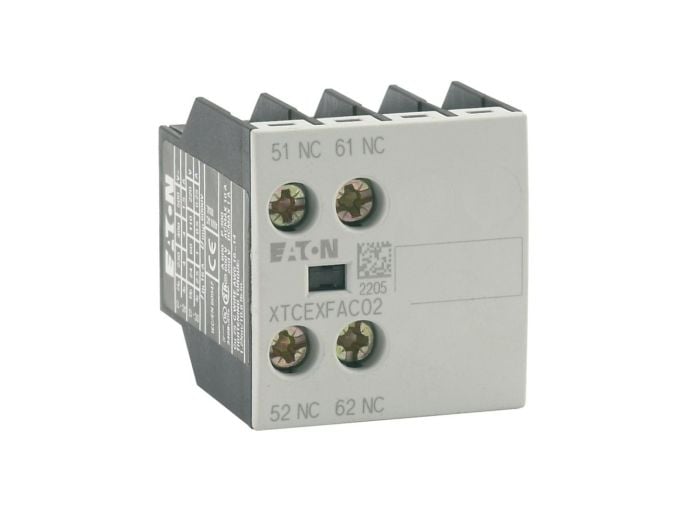

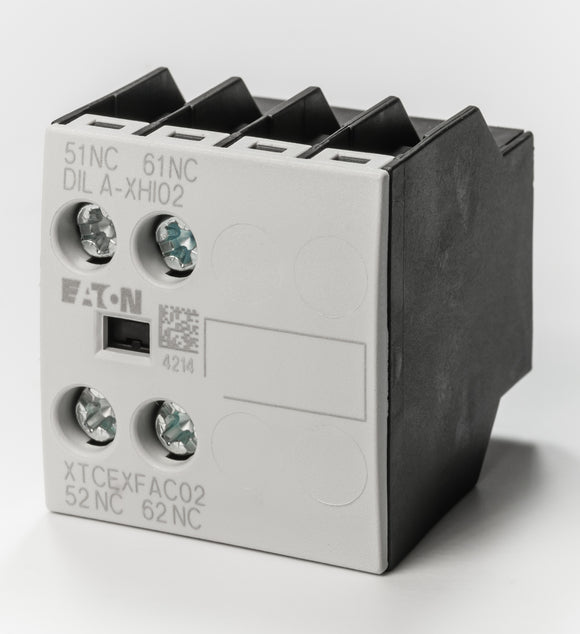

The Eaton XTCEXFAC02 is a two-pole auxiliary contact block with 2 normally closed contacts and screw terminals. This front mounted auxiliary snaps onto any Eaton XTRE 4 pole relay or XTCE contactors up to frame C and comes with screw terminals. The XTCEX line provides effective control and protection for motors, compressors and pumps.

• Electronic coil controller allows contactors to reduce power consumption and generate less heat
• AC and DC devices with the same dimensions achieved with an electronically controlled coil system allow for space savings and reduced engineering design time
• Integrated suppressors in DC controlled contactors offers reductions in total logistics and inventory costs

Product Highlights

Auxiliary contact block with interlocked opposing contacts. For use with XT Series B-C Frame.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: XTCEXFAC02

Technical Specifications

• Brand: Eaton
• Manufacturer Part Number: XTCEXFAC02
• Series: XT Series
• Contact Form: DPST-NC
• Number of Poles: 2
• Mounting: Front
• Contact arrangement: 2 normally closed
• Terminals: Screw
• Current Rating: 5 A
• Approval: UL, CSA, CE
• Contact Configuration: 2NC
• Contact Voltage Rating: 220/230/240/380/400/415/500 Volt AC
• Accessory Type: Auxiliary Contacts
• Family Series: Eaton Contactors
• Description: Auxiliary Contact Block, 2-N/C, Top Mount, for use with XT Series B-C Frame
• Type: Auxiliary Contact
• Comments: 2NC
