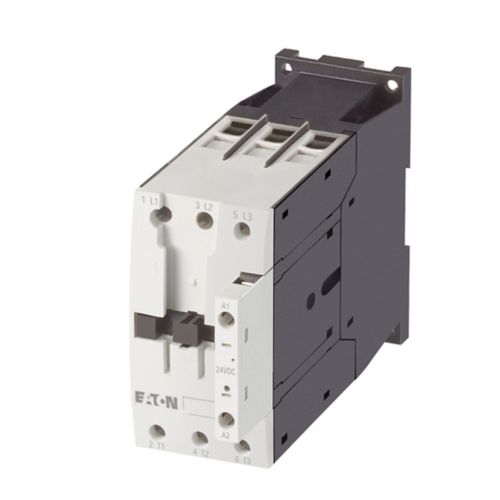

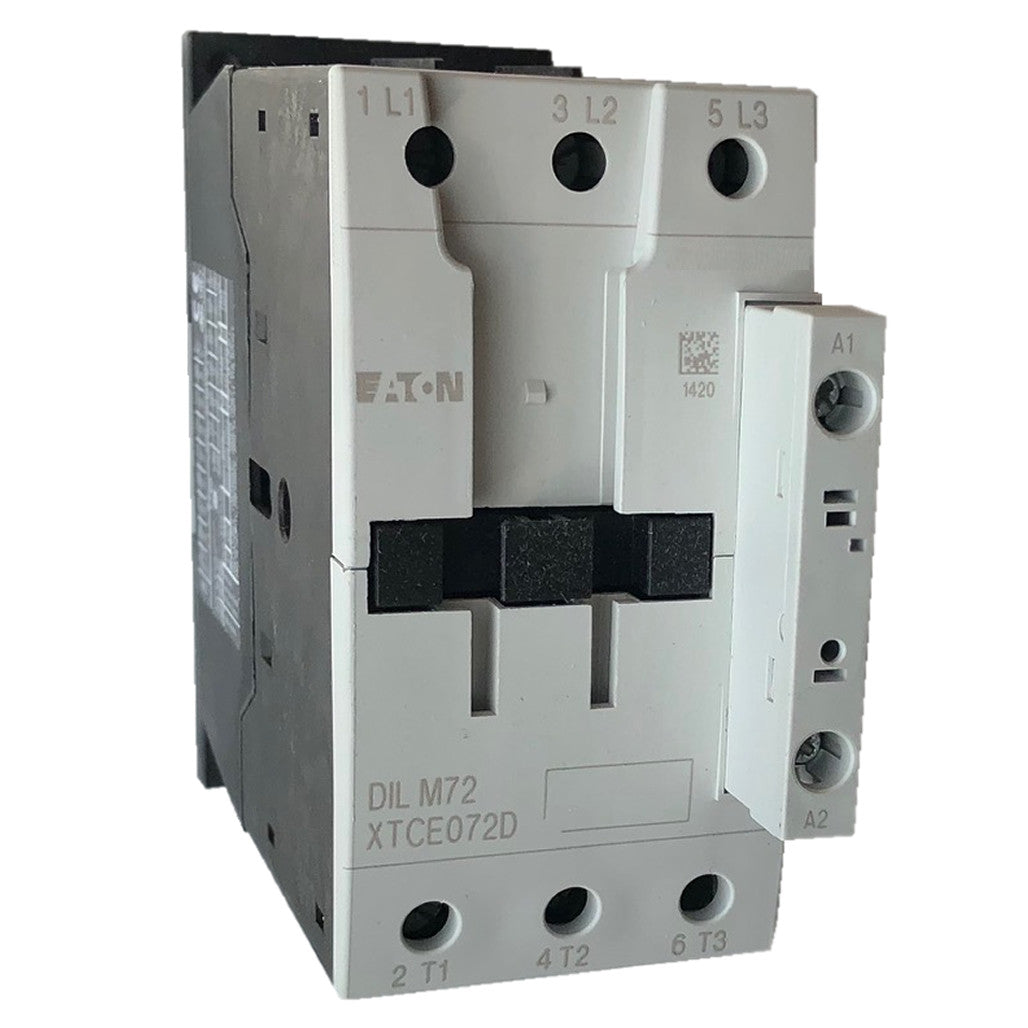

Eaton XTCE072D00T XT IEC contactor 72A

Product Description

The Eaton XTCE072D00T is an XT IEC contactor, designed for providing effective control and protection for various loads, including motors and pumps. This three-pole contactor has a 72A amperage rating and a coil voltage of 24 Vac at 50/60 Hz. It is suitable for full voltage non-reversing applications.

• 72A amperage rating
• Coil voltage: 24 Vac, 50-60 Hz
• Three-pole configuration

Product Highlights

The Eaton XTCE072D00T contactor offers a reliable solution for IEC applications, featuring easy installation and space-saving design.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: XTCE072D00T
• Country of Origin: United States

Technical Specifications

• Product Name: Eaton XT IEC contactor
• Catalog Number: XTCE072D00T
• EAN: 4015081088171
• Product Length/Depth: 5.77952756 in
• Product Height: 4.09448819 in
• Product Width: 2.16535433 in
• Compliances: RoHS Compliant CE Marked
• Certifications: UL Listed CSA Certified IEC 60947 EN 60947
• Catalog Notes: Screw terminals (6-65A); 5 mm (80-150A); no lugs (185-2000A)
• Product Type: Contactors
• Amperage Rating: 72A
• HP rating - max: 5, 10, 15/ 20, 25, 50, 60 hp (1/3PH @115,200,230/200,230,460,575 V)
• Number of poles: 3
• Type: D-Frame Full Voltage Non-Reversing
• Frequency rating: 50-60 Hz
• Frame size: 55 mm
• Terminals: Screw terminals
• Coil Voltage: 24 VAC at 50/60 Hz
• Contact configuration: 0 NO, 0 NC
• Continuous ampere rating: 72 A
• Series: XT IEC Series
• Operation: Non-reversing
• Mounting Type: DIN Rail/Panel Mount
• Contact Current Rating: 72 A
• Control Voltage: 24 V
• UPC Code: 4015081088171
• Manufacturer: Eaton
• Enclosure Type: IP20
• Operating Temperature: -13 to 122
• Size: 55
• Terminal Type: Screw
• Maximum Load Current: 72
• Application: Used to provide highly effective control and protection for a variety of loads, including motors, compressors, pumps, resistive, capacitor banks, isolation and other lighting
