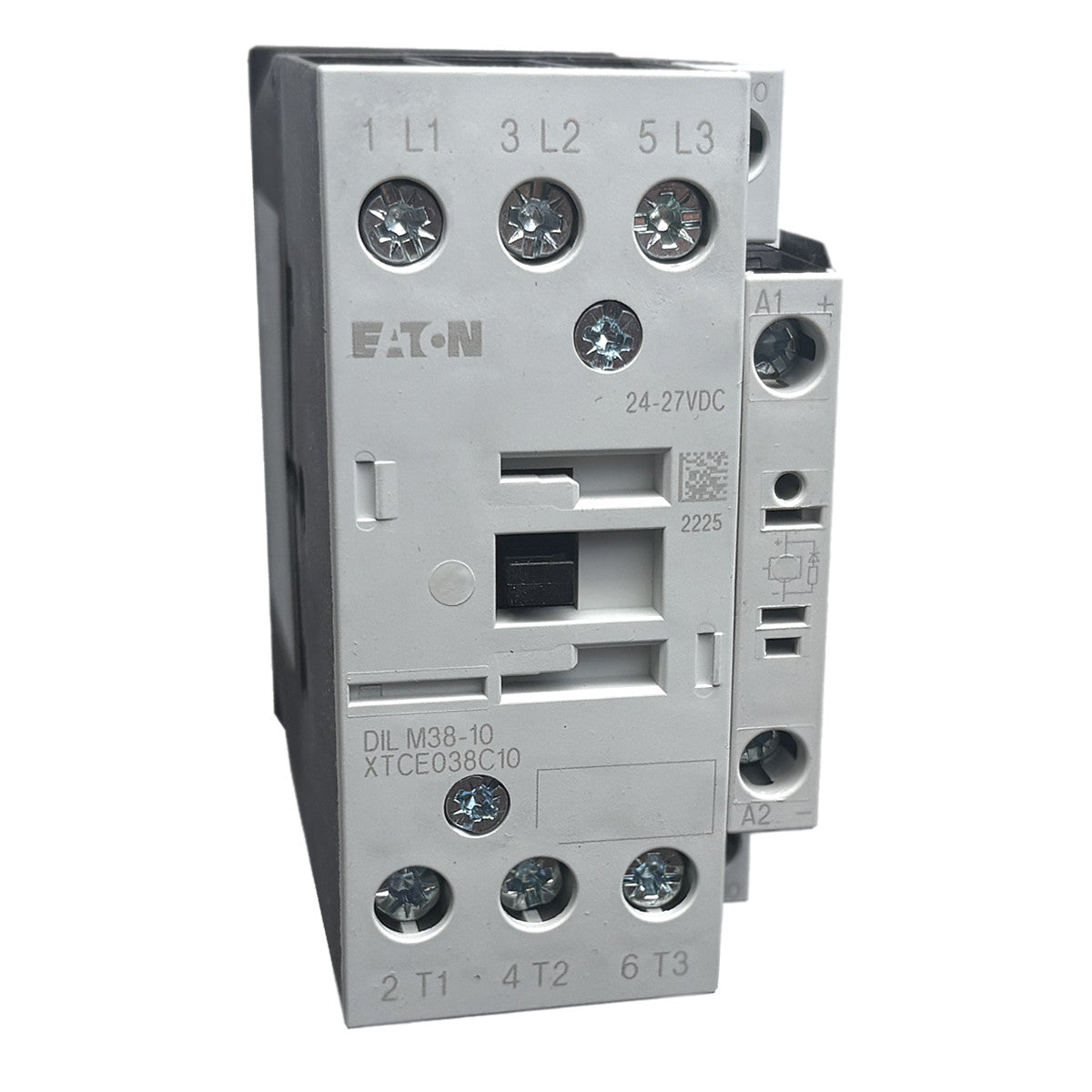

Eaton XTCE038C10TD Contactor 3-Pole 38A 24VDC Coil

Product Description

The EATON XTCE038C10TD is a definite purpose contactor (DOL / FVNR) designed for IEC power control. This 3-pole contactor has a rated current of 38A (AC-3) and a control coil voltage of 24Vdc-27Vdc. It features one normally open auxiliary contact, screw connections, and is suitable for DIN rail mounting. Frame size C.

• Toolless assembly of manual motor controllers and reversing contactors
• Low coil consumption
• Front accessibility to coil terminations

Product Highlights

The EATON XTCE038C10TD contactor offers reliable performance and easy installation for various motor control applications. It is ideal for use in direct-on-line (DOL) and full-voltage non-reversing (FVNR) starter configurations.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: XTCE038C10TD

Technical Specifications

• Primary brand: Eaton
• Secondary brand: Cutler-Hammer
• Main function: Contactor
• Product series / family name: XT IEC power control
• Sub-range name: XTCE
• Functions: Definite Purpose (DP) contactor
• Rated current: 45A (AC-1)
• Rated active power (kW): 21kW (660/690Vac; AC-3; IEC; 50/60Hz)
• Rated power (HP): 30HP (3-phase; UL/CSA; 575Vac)
• Rated operating voltage (Ue): 690 V
• Rated insulation voltage (Ui): 690 V
• Connection type: Screw connection
• Poles: 3 Pole(s)
• Control Voltage (DC): 24Vdc-27Vdc
• Mounting mode: DIN rail
• Normally Open (NO) auxliary contacts: 1 NO contacts
• Number of Normally Open (NO) circuits: 3 NO Pole(s)
• Net Width (mm): 45 mm
• Mechanical durability (at no load): 10 000 000 operations
• Application type: DOL (Direct On Line)
• FVNR (Full-Voltage Non-Rv.): None
• Manufacturer product status: Commercialized
• Compliant with standard(s): CCC
• Operating rate: (Mechanical) 5000 Cycles/hour
• Degree of pollution: 3
• Contact Current Rating: 38 A
• Mounting Type: DIN Rail/Panel Mount
• Number of Poles: 3
• Series: XT Series
• Type: IEC Contactor
• UPC Code: 4015081119981
• Coil Voltage: 24 volt DC
• Horsepower: 20 H.P. at 460 volt 15 H.P. at 230 volt
• Auxiliary: 1 normally open (N.O.)
• Mounting: Screw or DIN rail
• General Purpose (AC1): 32 A
