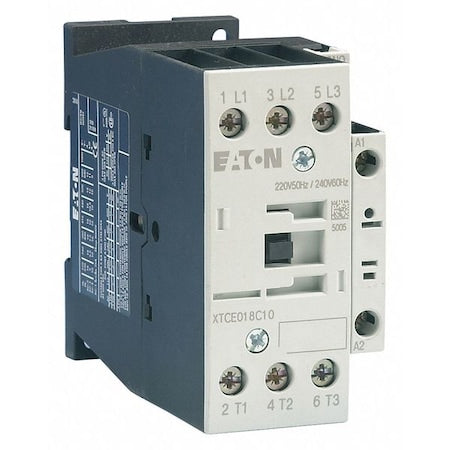

Eaton XTCE018C10A IEC Magnetic Contactor 120VAC 18A 1NO 3P Non-Reversible

Product Description

The Eaton XTCE018C10A is a non-reversing IEC magnetic contactor designed for industrial applications. This three-pole contactor operates with a coil voltage of 120VAC, handling up to 18A of maximum load current. It’s well-suited for controlling motors and other electrical devices in a variety of settings.

• Efficient power management with a coil voltage of 120VAC.
• Robust three-pole configuration with a single normally open (1NO) auxiliary contact.
• Operates in a temperature range from -13 to 122 degrees Fahrenheit.

Product Highlights

This contactor is part of Eaton's XT Series, known for their reliability and performance in heavy-duty applications. The device is compact, facilitating easy installation in tight spaces. It supports a range of motor horsepower from 2hp at 115V to 15hp at 575V across various voltage levels.

Technical Specifications

• Manufacturer: Eaton
• MPN: XTCE018C10A
• Coil Voltage: 120VAC, 50/60 Hz
• Load Current: 18A Maximum
• Number of Poles: 3
• Contact Configuration: 1NO
• Dimensions: 4 x 3.5 x 2 inches
• Operating Temperature: -13 to 122 degrees Fahrenheit
