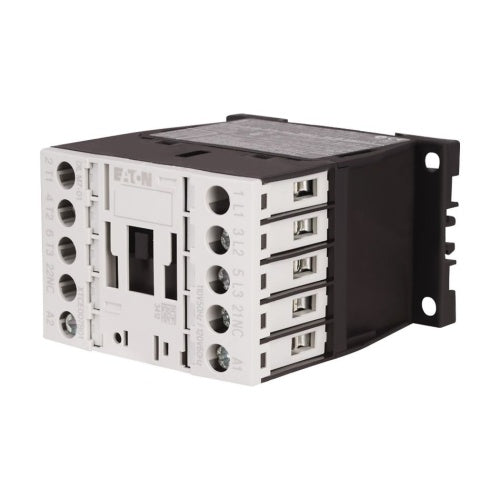

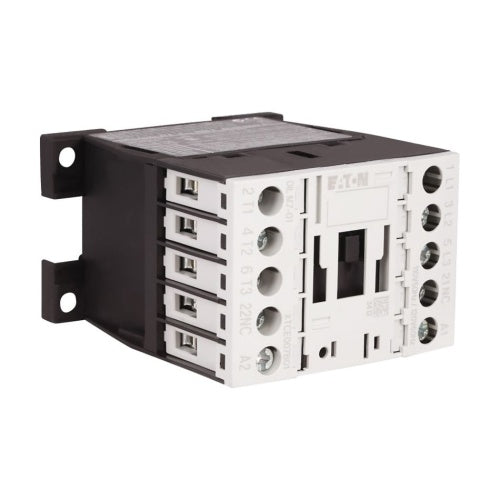

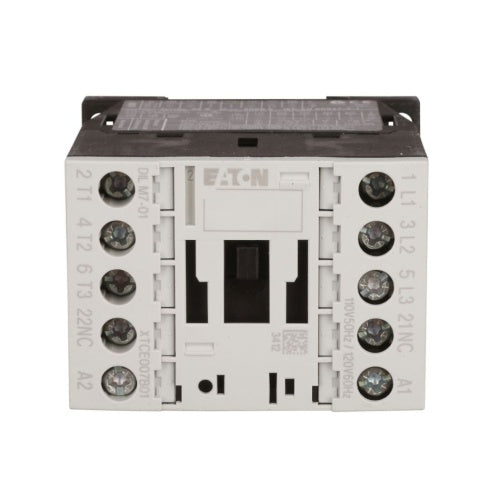

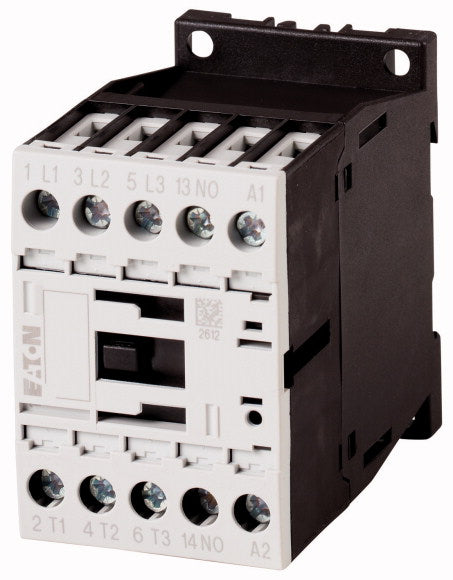

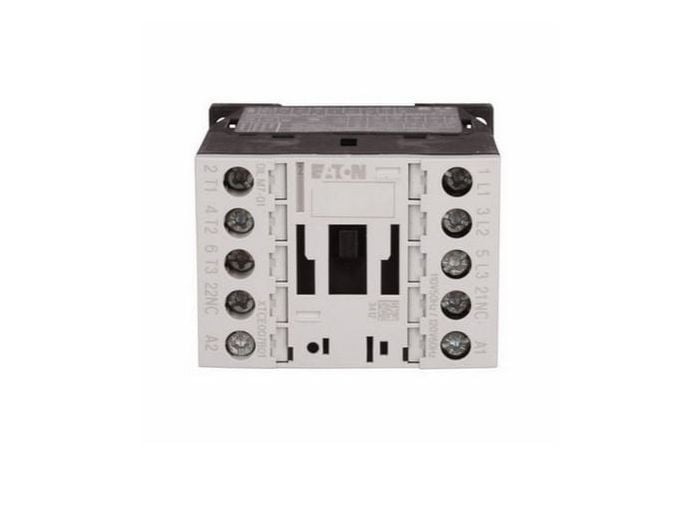

Eaton XTCE015B10T xt iec contactor 15A

Product Description

The Eaton XTCE015B10T is an IEC rated contactor used for electric motor control. Rated at 3 HP at 230V and 10 HP at 460V, it conforms to IEC 60947 standards. The contactor features screw terminals and a 24 Vac, 50-60 Hz coil, with a 1NO auxiliary contact. Suitable for various industrial applications.

• 3-phase IEC rated contactor
• 1NO auxiliary contact
• Conforms to IEC 60947

Product Highlights

Eaton's XTCE015B10T is a reliable contactor for motor control, featuring a robust design and easy installation.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: XTCE015B10T

Technical Specifications

• Product Name: Eaton XT IEC contactor
• Catalog Number: XTCE015B10T
• EAN: 4015082900625
• Product Length/Depth: 4.92125984 in
• Product Height: 2.67716535 in
• Product Width: 1.77165354 in
• Compliances: CE Marked RoHS Compliant
• Certifications: UL Listed CSA Certified IEC 60947 EN 60947
• Catalog Notes: Screw terminals (6-65A); 5 mm (80-150A); no lugs (185-2000A)
• Product Type: Contactors
• Amperage Rating: 15A
• HP rating - max: 1, 2, 3/ 5, 5, 10, 10 hp (1/3PH @115,200,230/200,230,460,575 V)
• Number of poles: Three-pole
• Type: IEC Contactor
• Frequency rating: 50-60 Hz
• Frame size: 45 mm
• Terminals: Screw terminals
• Coil voltage: 24 Vac, 50-60 Hz
• Contact configuration: 1 NO
• Continuous ampere rating: 15 A
• Series: XT IEC Series
• Operation: Non-reversing
• MPN: XTCE015B10T
• Brand: Eaton
• HP ratings 230V: 3
• HP ratings 460V: 10
• Auxiliary contacts NO: 1
• Auxiliary contacts NC: 0
• Coil Voltage / AC Voltage: 24V50/60HZ
• Alternate Mfr Part Number: XTA290810
• Auxiliary Contact: 1 NO
• Contact Current Rating: 15 A
• Control Voltage: 24 V
• Current Rating: 15 A
• Family Name: XT IEC Power Control Family
• Horsepower, Max, 1 Phase, at 115 V: 1
• Horsepower, Max, 1 Phase, at 200 V: 2
• Horsepower, Max, 1 Phase, at 230 V: 3
• Horsepower, Max, 3 Phase, at 200 V: 5
• Horsepower, Max, 3 Phase, at 230 V: 5
• Horsepower, Max, 3 Phase, at 460 V: 10
• Horsepower, Max, 3 Phase, at 575 V: 10
• Horsepower Rating: 10 hp
• Manufacturer Part Number: XTCE015B10T
• Mounting Type: DIN Rail/Panel Mount
• Number of Poles: 3
• Primary Type: Contactor
• Special Features: Low Power Coil
• Supply Voltage: 600 VAC
• Temperature Operating Range: -25 to 50 C
• Terminal Type: Screw Terminal
• Termination: screw
• UPC Code: 4015082900625
• Product Series: XT
• Family Series: Eaton Contactors, XT Series
• Description: Eaton XT IEC contactor, 15A, 24 Vac, 50-60 Hz, 1NO, 15A, Frame B, 45 mm, 50-60 Hz, 1, 2, 3/ 5, 5, 10, 10 hp 1/3PH 115, 200, 230/200, 230, 460, 575 V, Three-pole, Non-reversing,, Screw terminals, FVNR
• Nominal Coil Voltage: 24 VAC
• Coil Type: Magnetic
• Poles: 3NO
• Frame Size: B
• General Purpose (AC1): 20 A
• UL Motor Switching (AC3): 15 A
• Net Weight: 0.5 lbs
• Gross Weight: 0.5 lbs
• Starter Frequency: 50 Hz
• Starter Coil Voltage: 24 VAC
• Starter Auxiliary Contacts: 1 NO
• Starter HP: 5 HP @ 230 VAC
• Component: IEC Contactor
• Starter Poles: Three Pole
• Starter Reversing Capability: Non-Reversing
• Starter Amperage: 15 Amp
• Manufacturer: Eaton
• Sub Component: IEC Non-Reversing Contactor
• Starter Class: XT
• Amps: 15
