Eaton XTCE015B10B Cont 3P FVNR 15A FR

Product Description

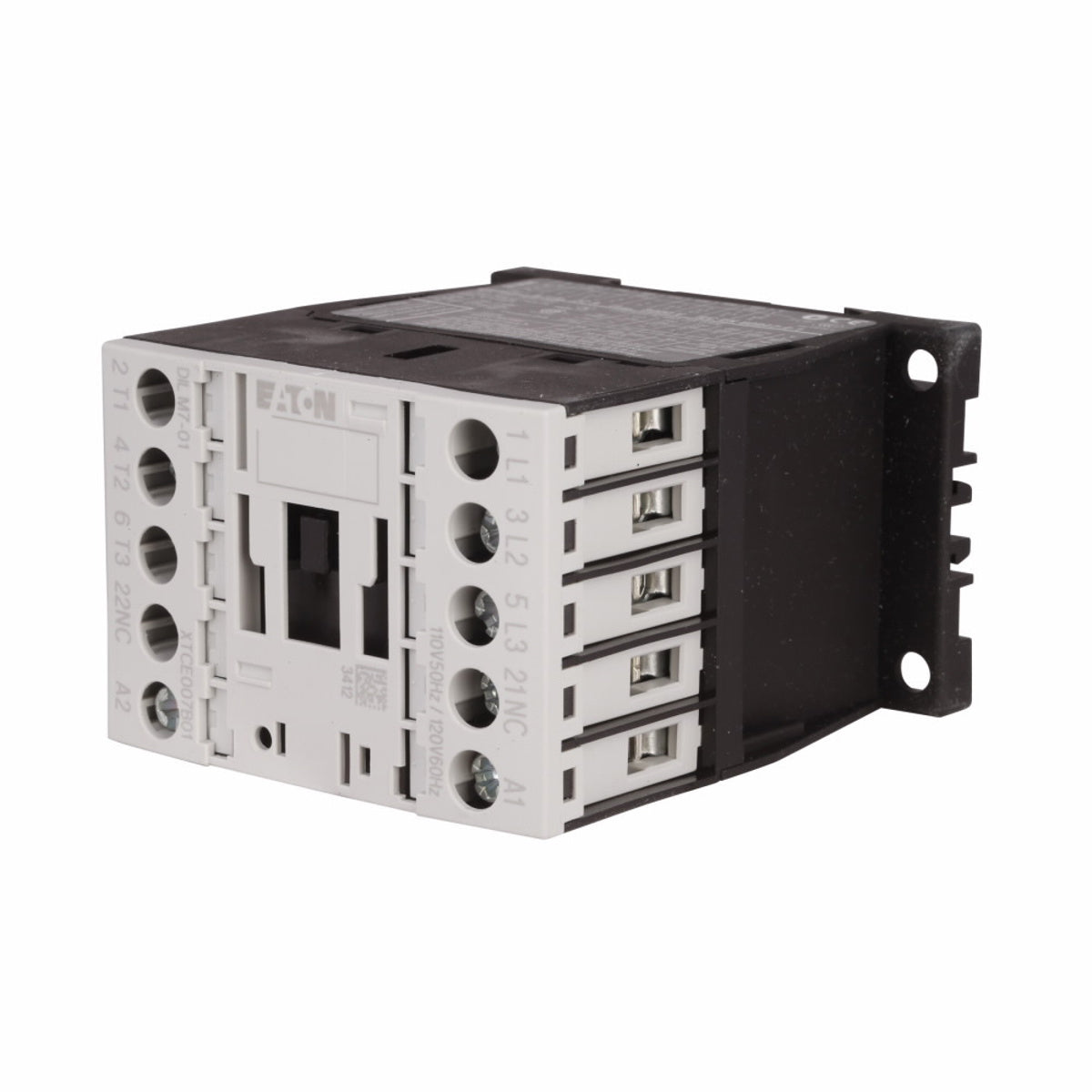

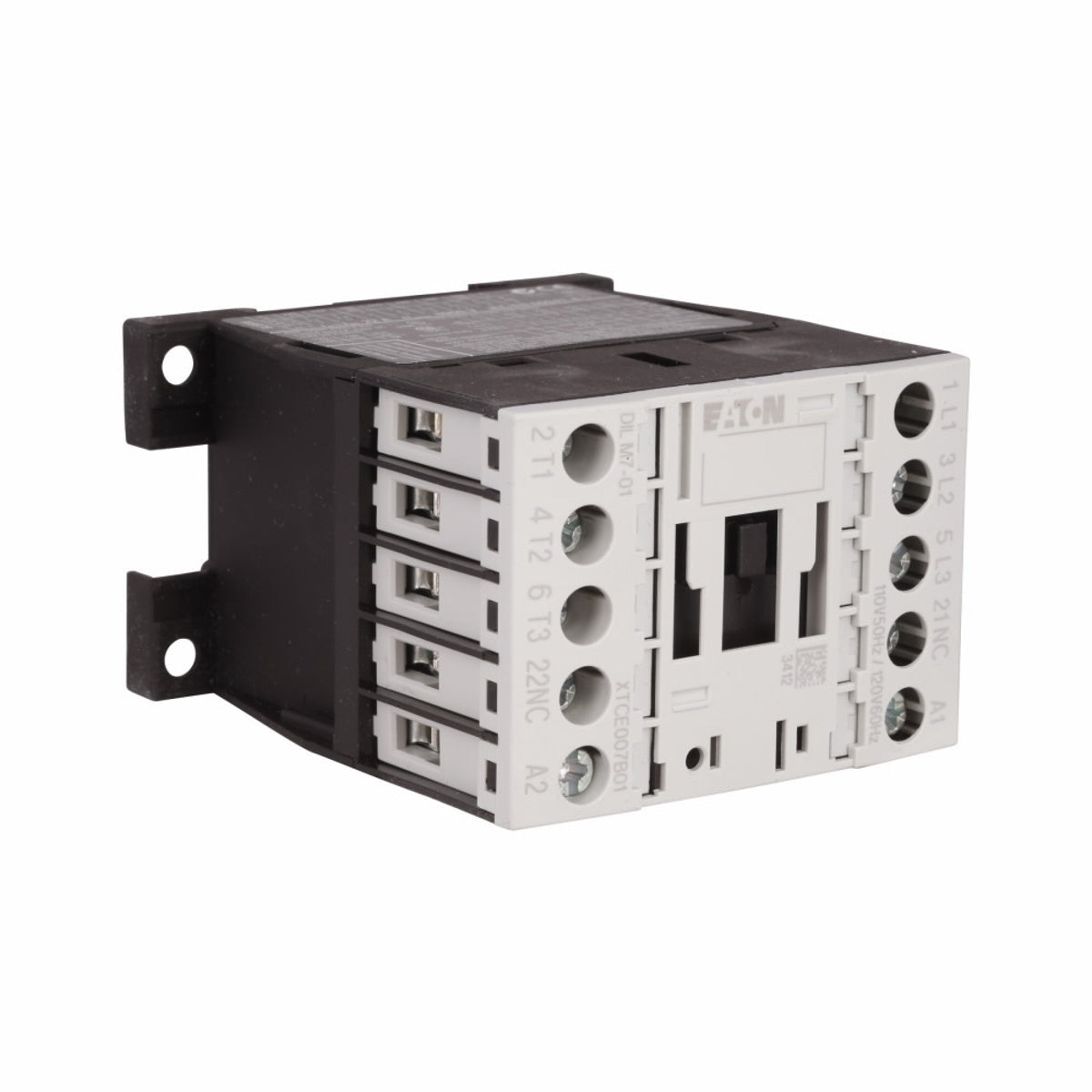

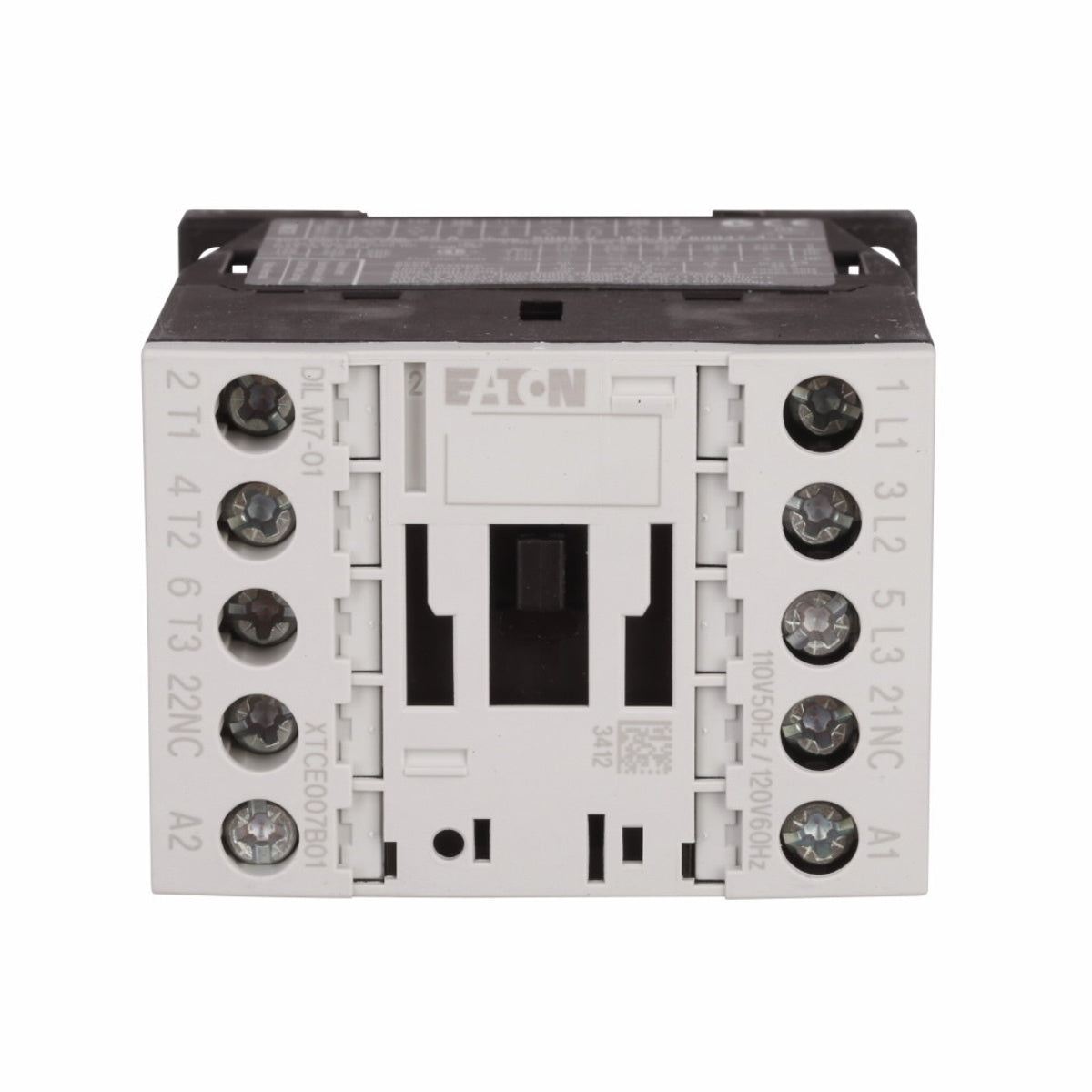

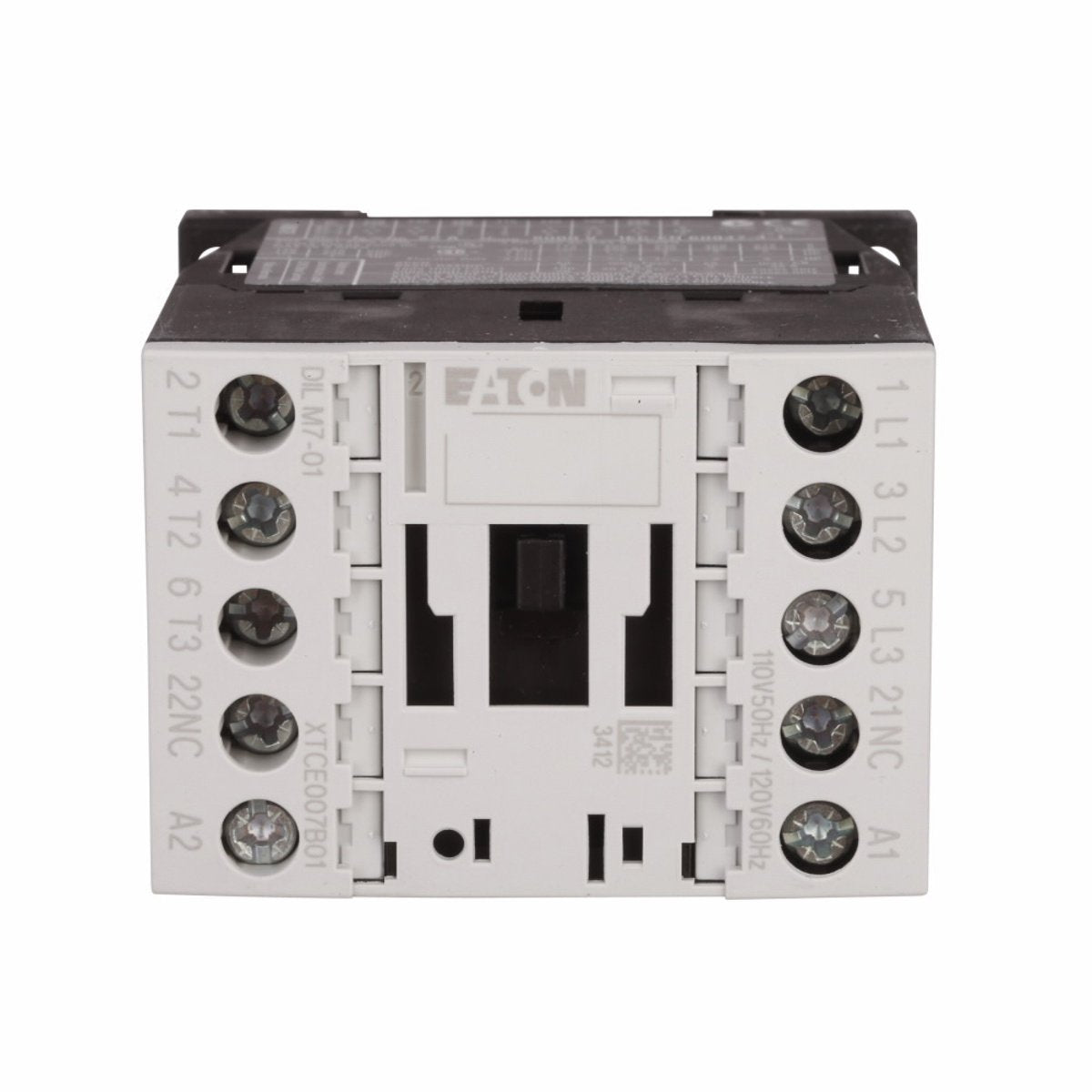

The Eaton XTCE015B10B is a three-pole contactor with a power rating of fifteen amperes. It operates at a coil voltage of 220 VAC at fifty hertz and 240 VAC at sixty hertz. This contactor is suitable for applications across various electrical assemblies, panels, and equipment manufacturers. Key specifications include:

• Full voltage non-reversing design.
• Three poles with screw terminals.
• Compact design of forty-five millimeters in size.

Product Highlights

The contactor can support electrical loads from one horsepower at one hundred fifteen VAC single phase up to ten horsepower at four hundred sixty VAC three phase. It is ideal for controlling motors and other electrical devices.

Product Information

Standard Information

• Brand: Eaton
• Manufacturer Part Number: XTCE015B10B

Technical Specifications

• Type: Full Voltage Non-Reversing Contactor
• Height: 2 inches
• Length: 3 inches
• Weight: 0.3 lb
• Amperage: 15 Amp
• Standard: UL Listed, CSA Certified
• Coil Voltage: 220 VAC at 50 Hz, 240 VAC at 60 Hz
• Contact Configuration: 1 NO
• Number of Poles: 3
