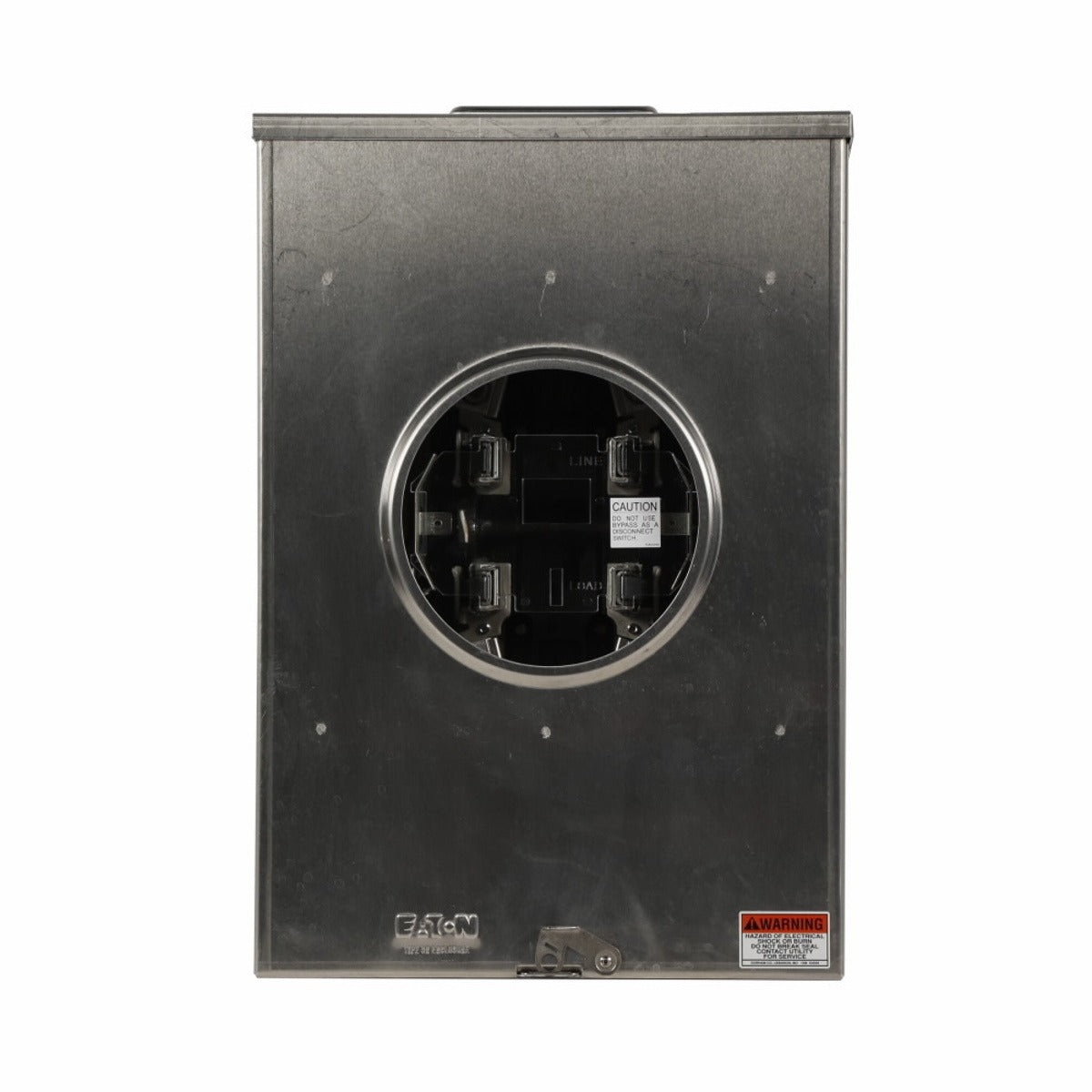

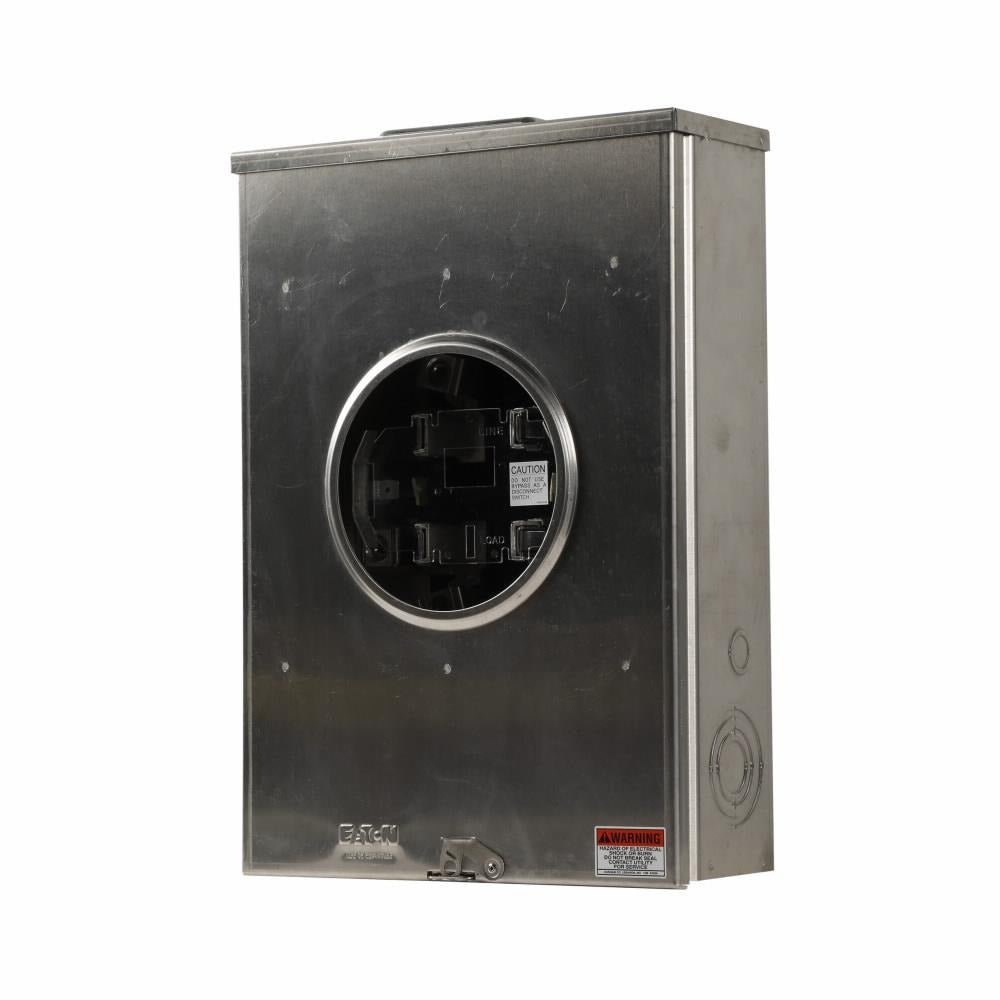

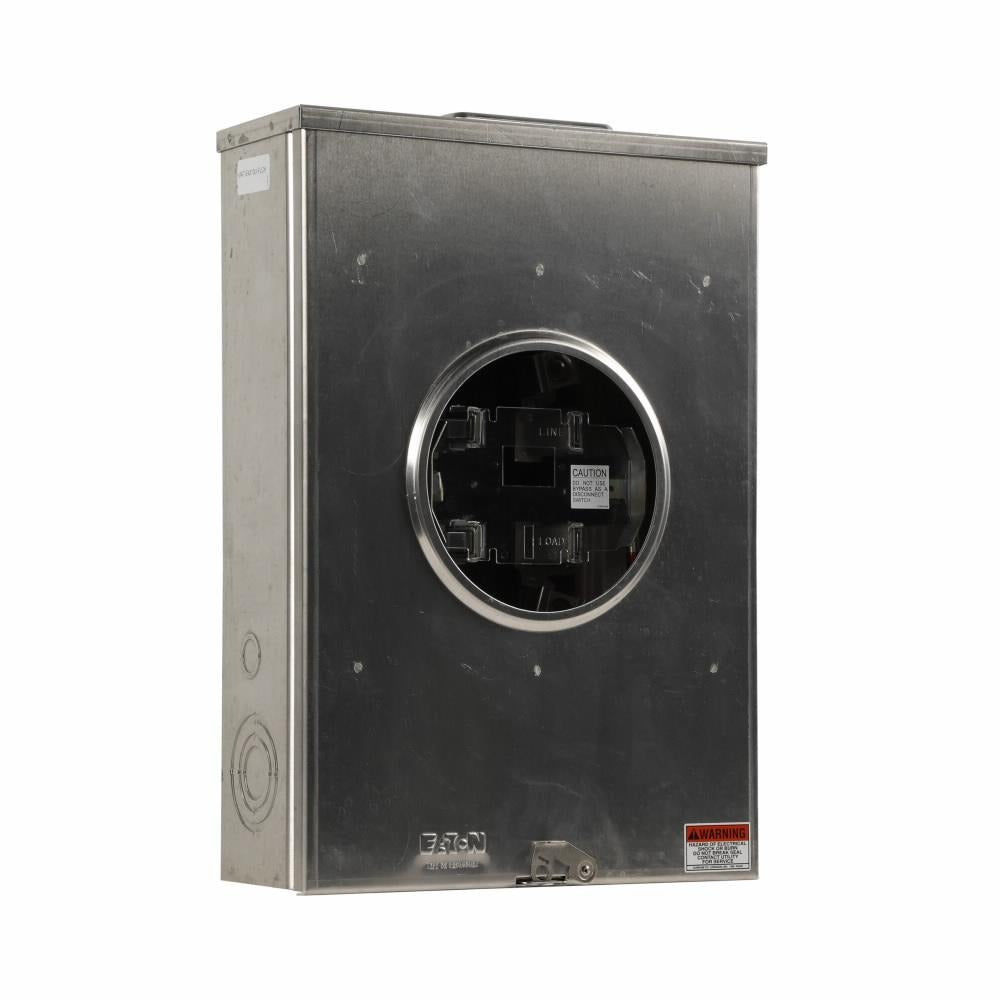

Eaton UTH7233UCH Meter Socket 200A (1-Position)

Product Description

The Eaton UTH7233UCH is a single-position, ringless meter socket rated 200 A and 600 Vac for commercial or residential 3-phase service. It features a 7-jaw design with lever bypass, supports 4-wire or triplex configurations, and accepts conductors from 6 AWG to 350 kcmil. The enclosure includes a 5 x 5 inch hub cover plate and is suitable for bottom or top feed installations.

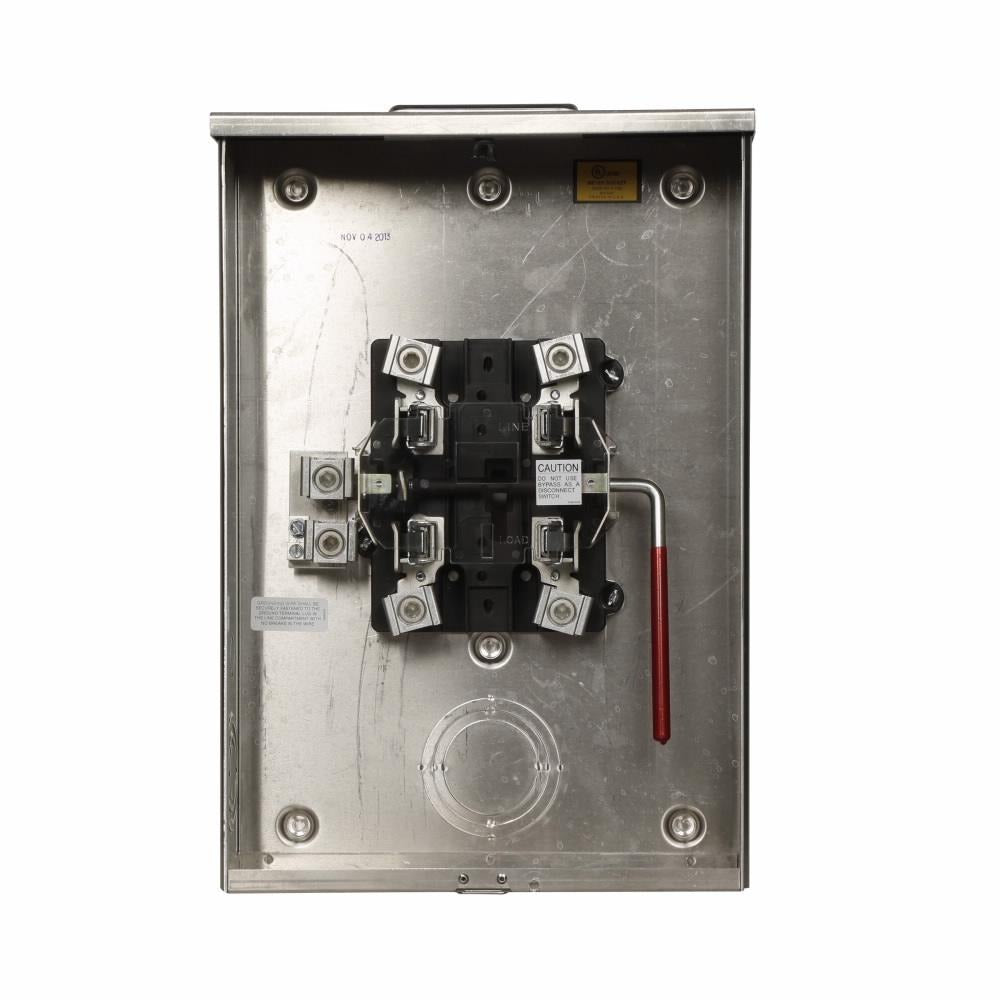

• 200 A, 600 Vac single-position meter socket with 7-jaw copper-plated alloy jaws and steel reinforcing springs
• Lever bypass, 3-phase 4-wire (triplex capable), ground connection for #14 to #2 Cu, conductor range 6 AWG to 350 kcmil

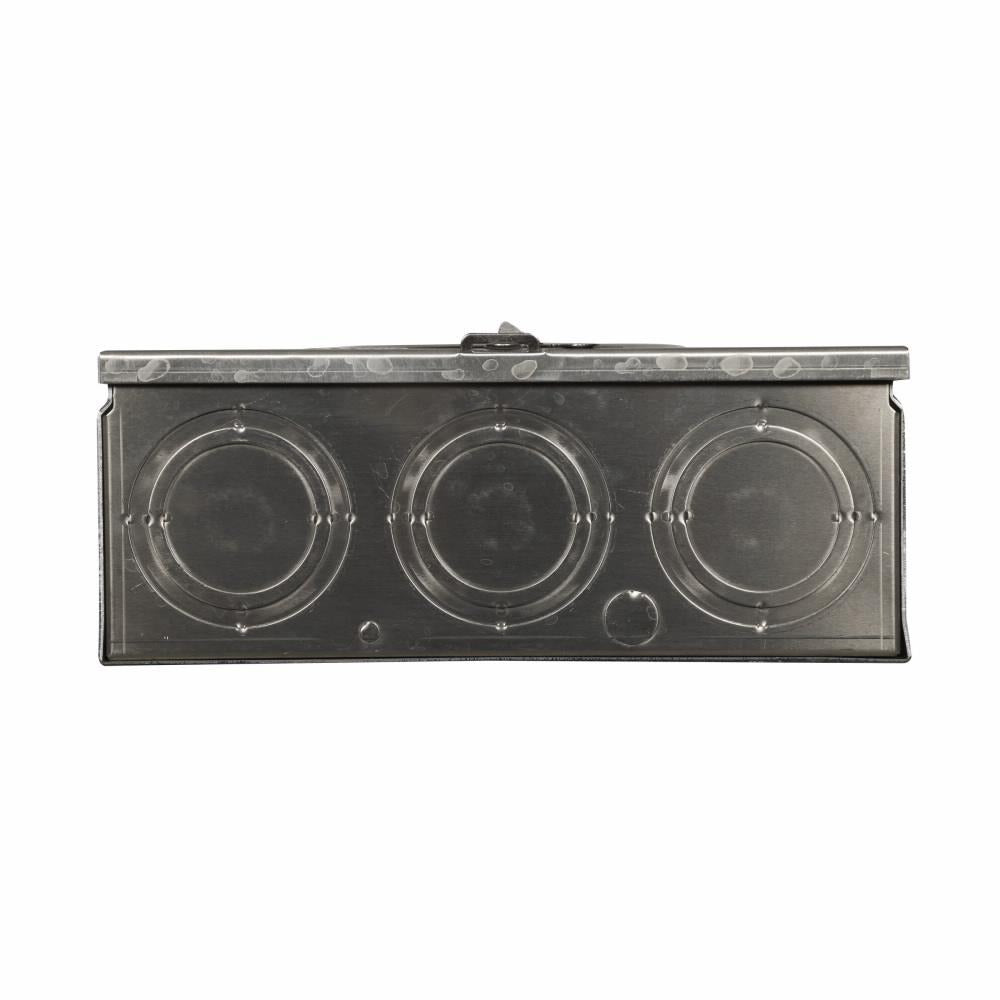

• Ringless enclosure with large 5 x 5 in hub cover plate, suitable for surface or flush mounting; dimensions 5.63 in L x 16 in W x 27 in H

Product Highlights

Single-position, ringless 200 A meter socket with 7-jaw lever bypass for 3-phase, 4-wire service; accepts #6–350 kcmil conductors and includes 5 x 5 in hub cover plate.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: UTH7233UCH
• Country of Origin: United States
