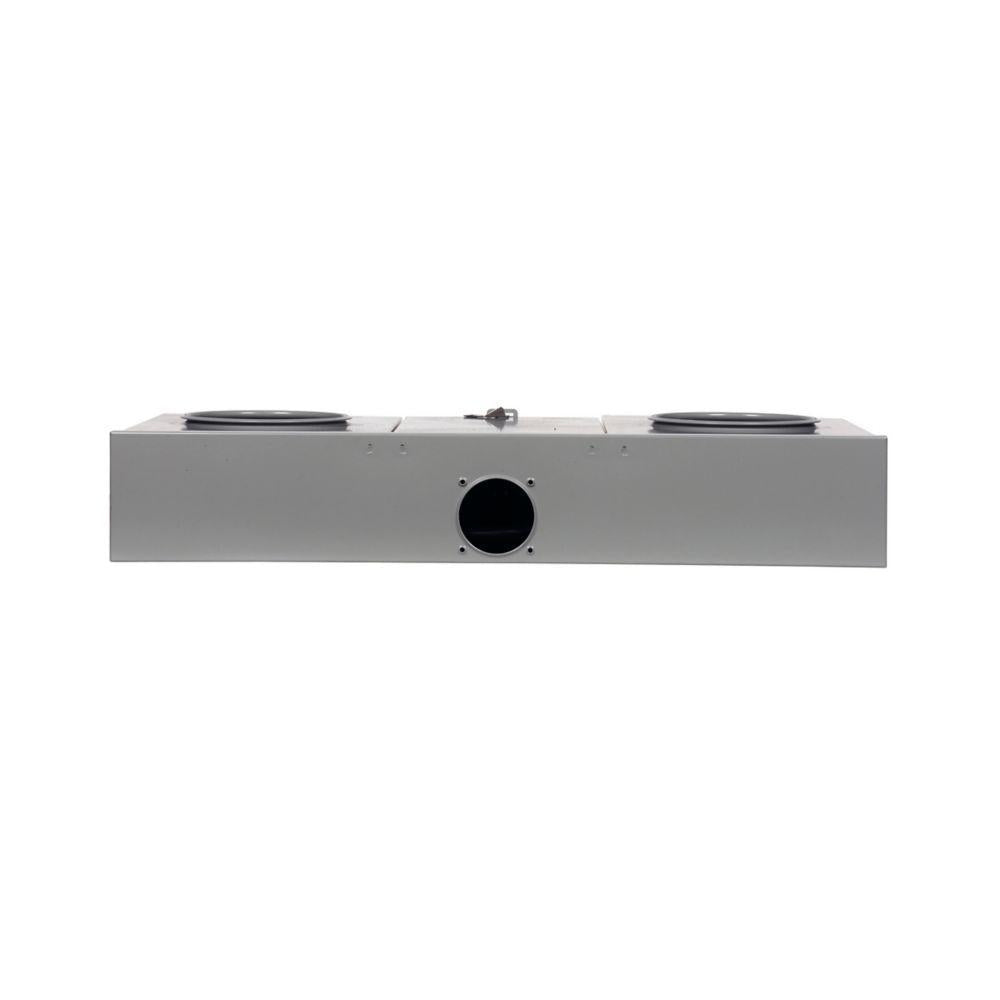

Eaton UT2H52353TCH MtrSkt,200A,Ringle

Product Description

The Eaton UT2H52353TCH meter socket is designed for multi-position commercial or residential service applications. Rated at 200A and 600 Vac, this ringless socket features a 5x5 inch hub opening, accommodates #1/0-500 kcmil wiring, and includes a 5-jaw configuration, lever bypass, and ground connection for #14-#2 Cu. It supports triplex, 3-wire, and 1-phase systems.

• Rated for 200A and 600 Vac
• Features a 5x5 inch hub opening
• Includes a 5-jaw configuration and lever bypass

Product Highlights

Eaton's UT2H52353TCH meter socket is ideal for residential and commercial buildings, offering a reliable solution for electrical watthour meter housing.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: UT2H52353TCH

Technical Specifications

• Brand: Eaton
• Voltage: 600 Volt
• Amperage: 200 Amp
• Feed Type: Bottom,Top
• Number of Wires: 3 Wire
• Number of Phases: 1 Phase
• Cover Type: Ringless
• Hub Size: 5 x 5 in
• Number of Jaws: 5
• Terminal Type: Line/Load
• Wire Size: 1/0 AWG to 500 kcmil
• Voltage Rating: 600 VAC
• Amperage Rating: 200 A
• Phase: 1 ph
• Catalog Number: UT2H52353TCH
• Certifications: UL Listed
• Product Type: Meter socket
• Bypass: Lever
• Number of sockets: 2
