Eaton TMC7247 2-1/2 CRD GRPS

Product Description

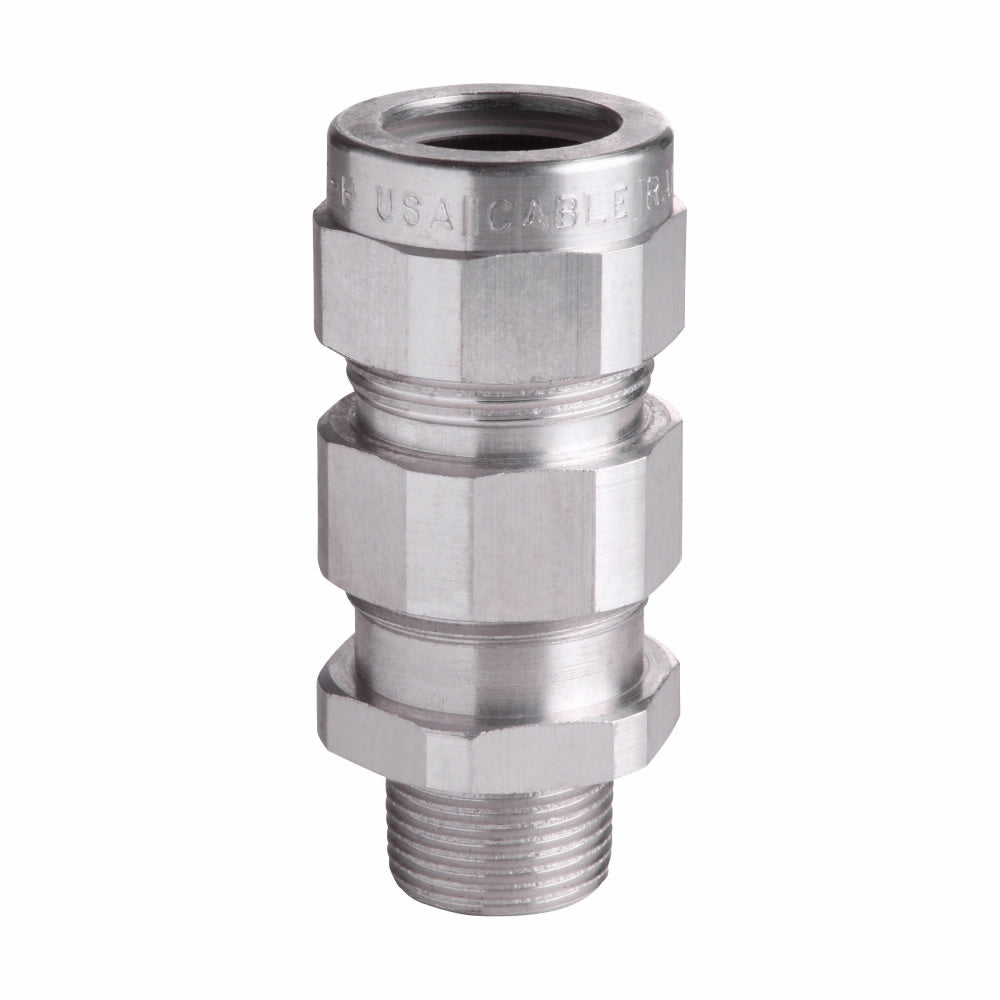

The Eaton Crouse-Hinds TMC7247 is a metal-clad cable gland designed for armored cable applications. This product fits a wide range of cable sizes, specifically TECK corrugated or interlocked steel and aluminum. It is suitable for general-purpose use and features a two-and-a-half-inch NPT connection.

• Compatible with armor size range from one point nine-three inches to two point four-seven inches.
• Built from durable aluminum and neoprene for long-lasting performance.
• Rated for IP56 enclosure, ensuring protection against dust and water.

Product Highlights

The TMC7247 is ideal for industrial facilities, factories, and other applications requiring robust cable sealing solutions.

Product Information

Standard Information

• Brand: Eaton
• Manufacturer: Crouse Hinds

Technical Specifications

• Type: Cable gland
• Connection: Male NPT
• Weight: 2.95 lbs
• Material: Aluminum/Neoprene
• Temperature Rating: -25 to 60 Deg C
• Standard: UL (Canada and US); CUL
• Enclosure Rating: IP56
• Dimensions: 6.19 inches x 4 inches x 4 inches
