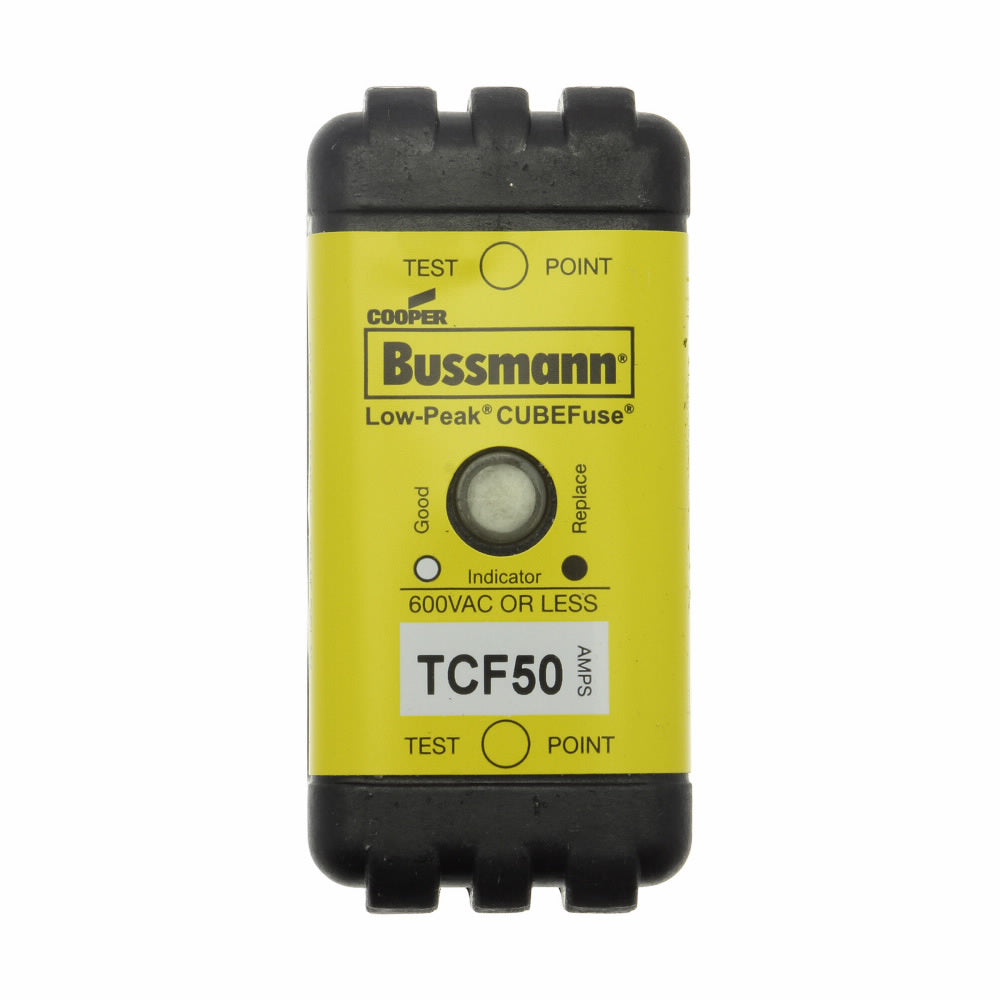

Eaton TCF50 BUS 50A CUBE FUSE

Product Description

Eaton TCF50 BUS 50A CUBE FUSE is a time delay fuse designed for electrical systems. This fuse handles 50 amps and operates at 600 volts AC or 300 volts DC. It offers a high interrupting capacity of 100 kA at 600 VAC and 300 kA at 300 VDC. The durable square blade body is suitable for chassis or DIN rail mounting.

• Low let-through currents under fault conditions
• Indicating version for easier troubleshooting
• Designed for commercial and industrial applications

Product Highlights

This fuse combines a compact design with high performance, allowing for space-efficient setups in electrical panels and machinery.

Product Information

Standard Information

• Manufacturer: Eaton
• UPC: 05171261507

Technical Specifications

• Amperage Rating: 50 A
• Voltage Rating: 600 VAC/300 VDC
• Body Size: 3.01 inches L x 1 inch H
• Body Type: Square Blade
• Element: Dual
• Response Time: 10 seconds at 500%
• Mounting Type: Chassis/DIN Rail
• Standards/Approvals: CE Certified, CSA 1422-02, RoHS Compliant, UL File No. 53787, UL File No. E4273
