Product Description

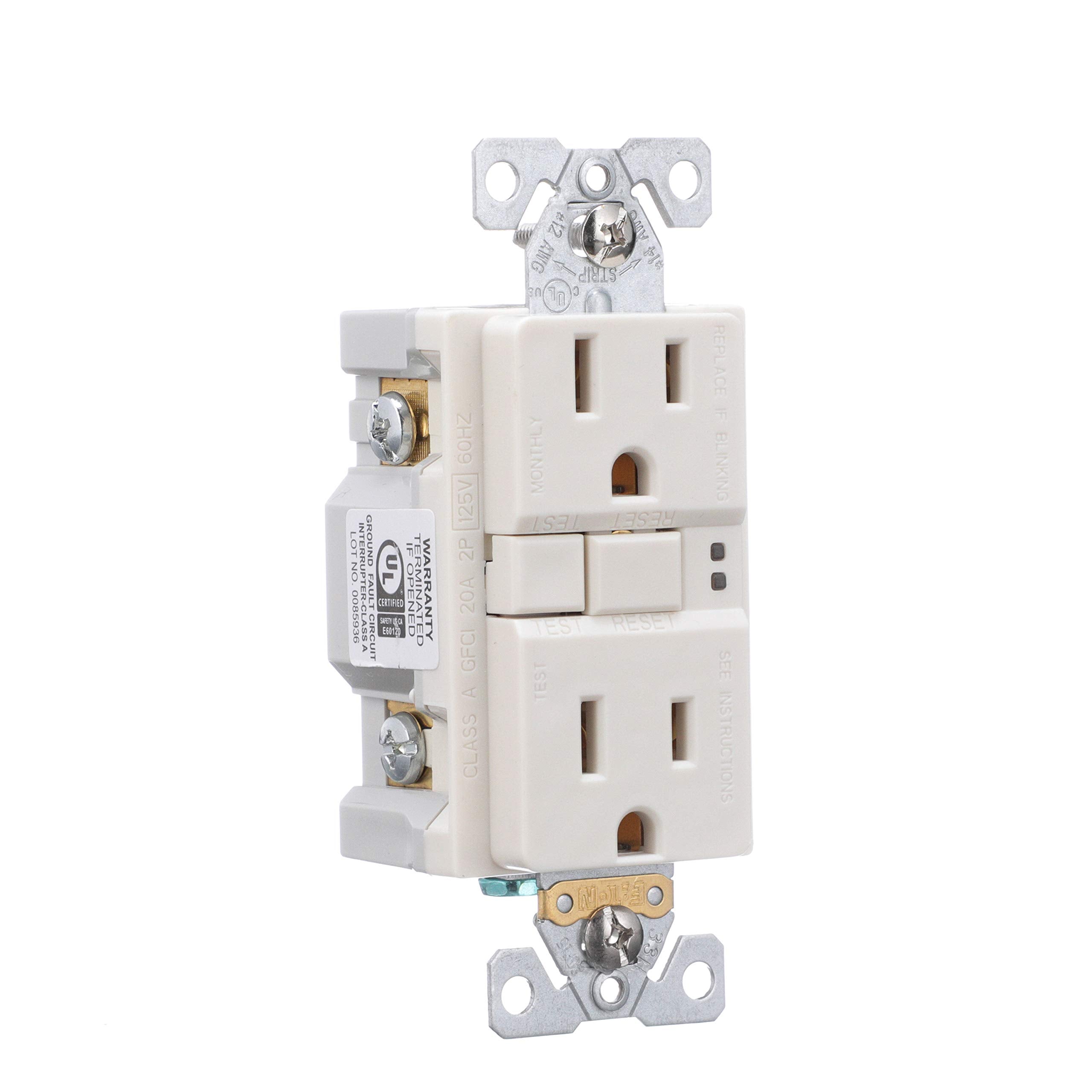

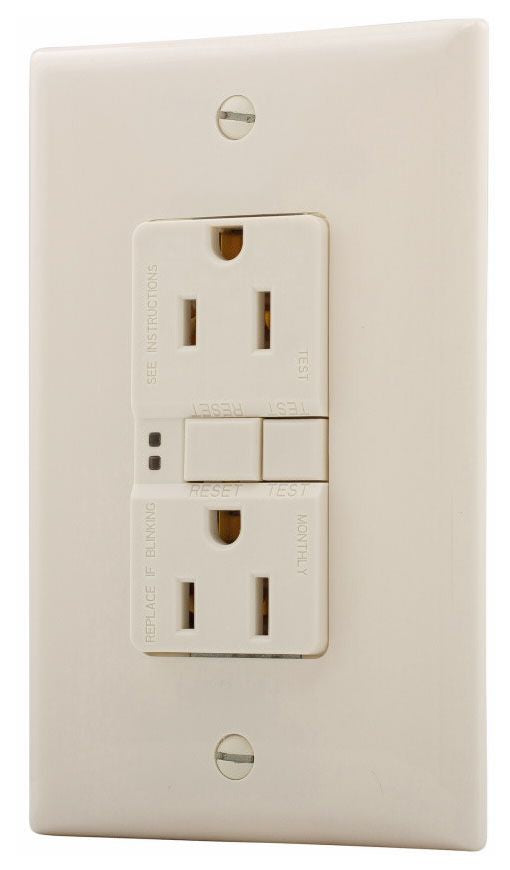

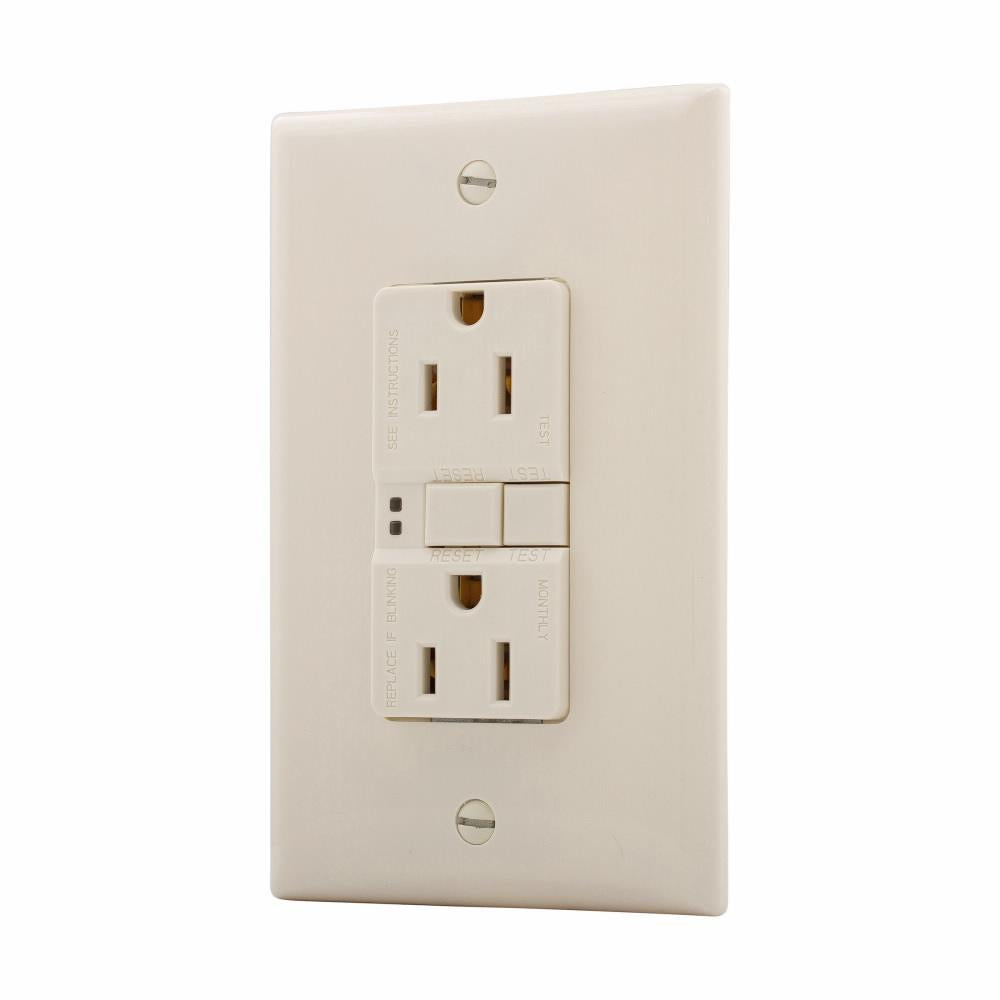

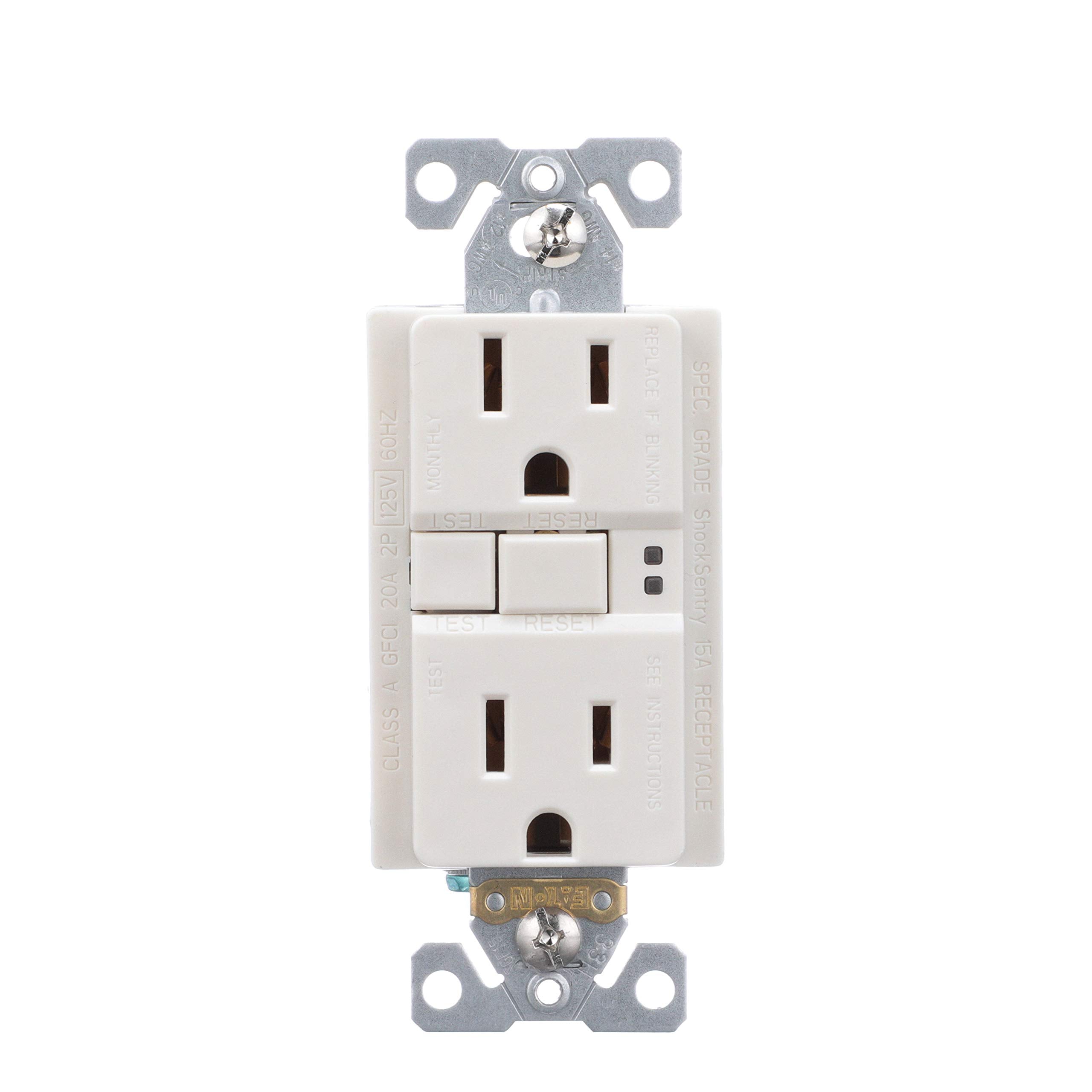

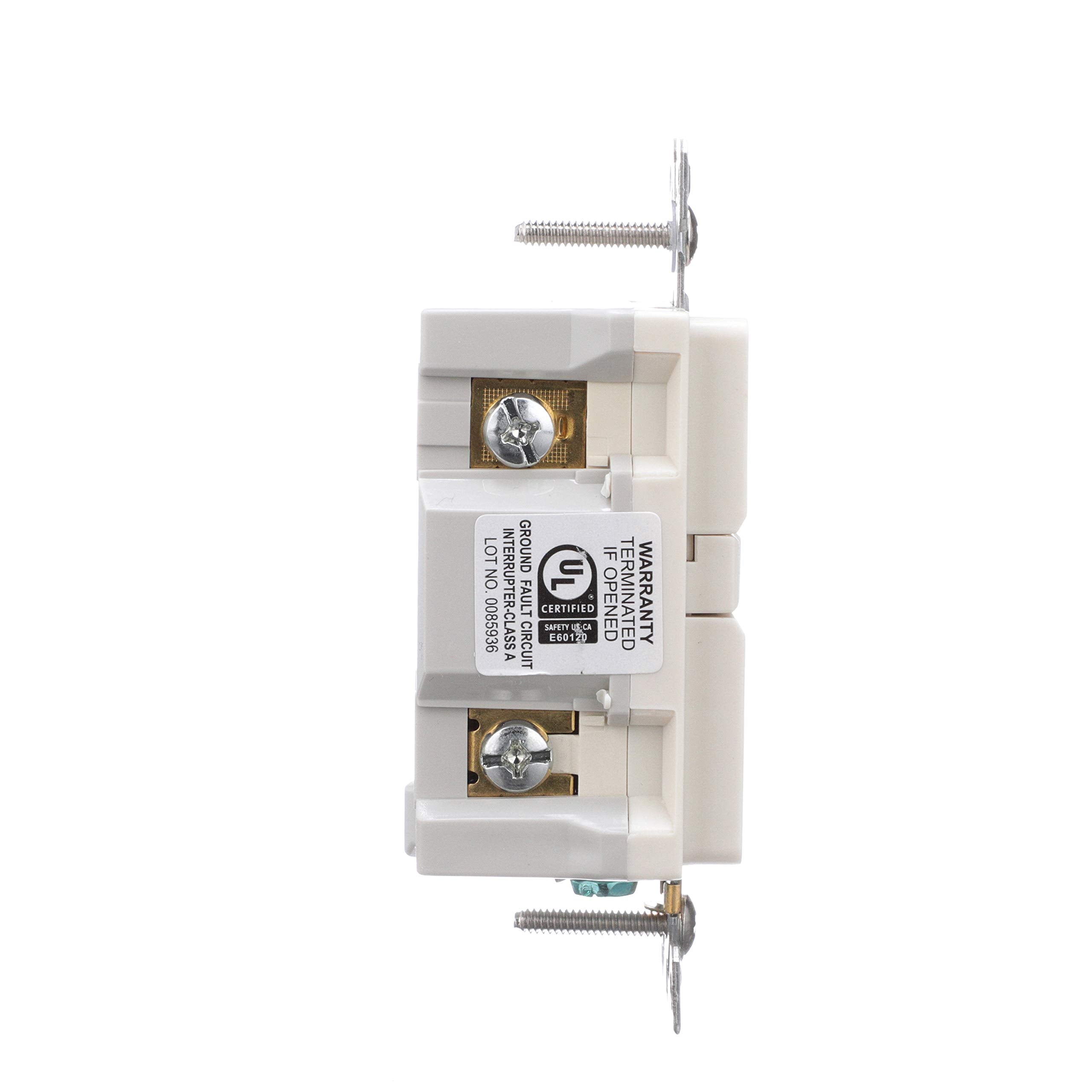

The Eaton SGF15LA GFCI receptacle is a self-testing circuit interrupter designed to recognize ground faults and immediately cut off the flow of electricity, protecting against electrical shock. Suitable for residential, commercial, and industrial applications. It denies power and prevents resetting if the device is no longer able to provide safe power.
- Self-tests periodically to ensure GFCI protection.
- Visual indicator lights provide notification of tripped or end-of-life condition.
- Back and side wire connection type.
Product Highlights
Eaton GFCI receptacles are tested to the highest standards and provide dependable protection suitable for homes, offices, hospitals, schools and even outdoor applications.
Product Information
Standard Information
-
Brand: EATON
-
Manufacturer Part Number: SGF15LA
-
Country of Origin: CHN
Technical Specifications
-
Type: Self-test
-
Brand: Eaton
-
Color: Almond
-
Grade: Specification
-
Voltage: 125 Volt
-
Amperage: 15 Amp
-
Grounding: Grounding
-
Sub Brand: Eaton Wiring Devices
-
Applications: GFCI
-
Connection Type: Back and Side Wired
-
Number of Poles: 2 Pole
-
Number of Wires: 3 Wire
-
Frequency Rating: 60 Hz
-
Material: Brass/Polycarbonate
-
NEMA Rating: NEMA 5-15R
-
Temperature Rating: -31 to 150.8 deg F
-
Terminal Type: Back/Side Wire
-
Voltage Rating: 125 VAC
-
Amperage Rating: 15 A
-
Model / MPN: SGF15LA
-
Product Type: ELECTRICAL_OUTLET
-
Device type: Receptacle
-
Circuit interrupter type: GFCI
-
Contact material: Brass
-
Application: ResidentialCommercial
-
Wiring method: Back and side wire
-
Allowable wire size: #14 - 10 AWG
-
NEMA configuration: 5-15R
-
Torque rating: 16 lbf-inch
-
Mounting method: Flush
-
Face/body material: PVC Polycarbonate
-
Receptacle type: Two-pole, three-wire, grounding
-
Mounting Style: Wall
-
Operation Method: Outlet
-
Current Type: AC
-
Maximum Amperage: 20 A
-
Outlet Style: Duplex
-
Resistance Properties: Tamper Resistant
-
Suitable For: Wall
-
Country of Origin: China
-
Package Quantity: 1
