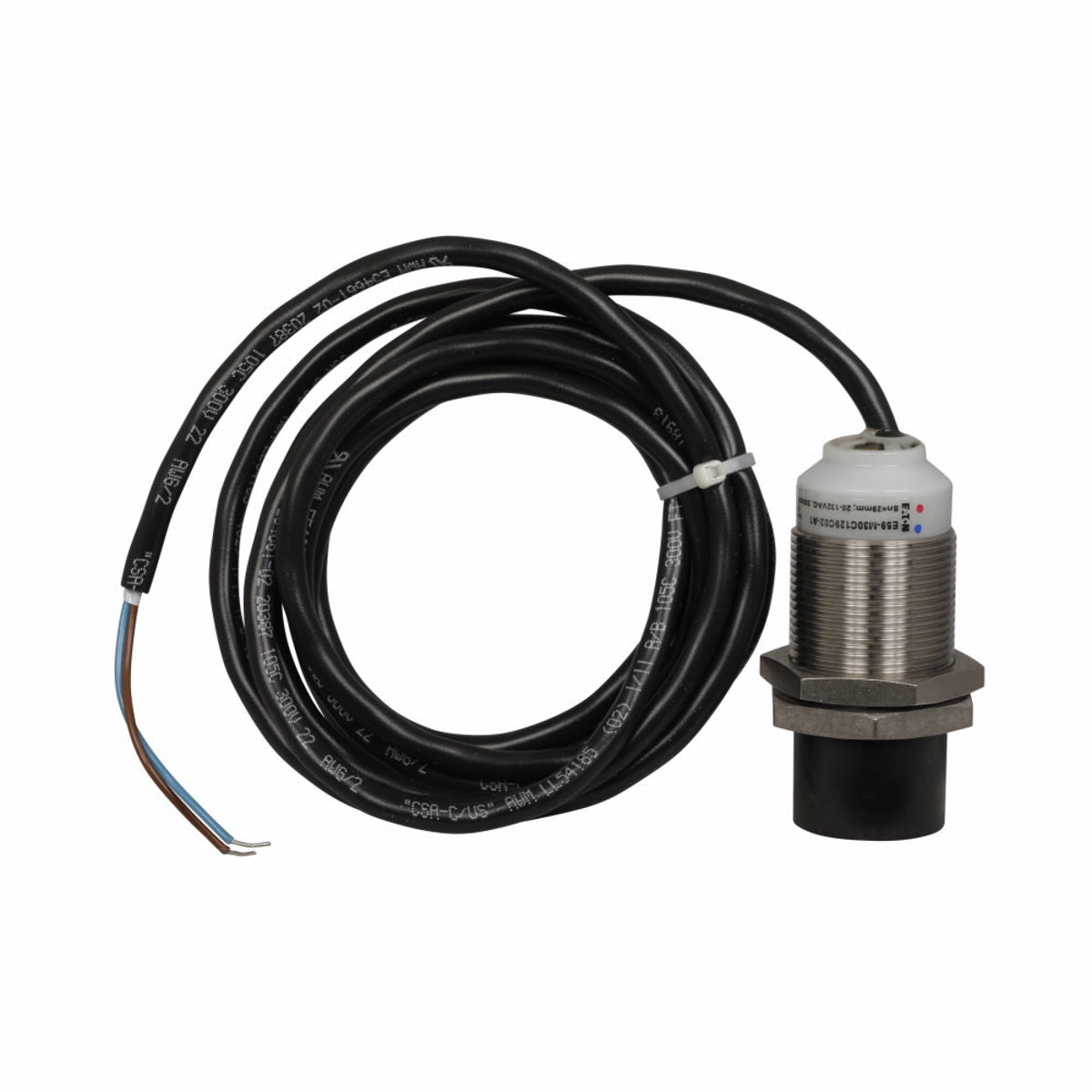

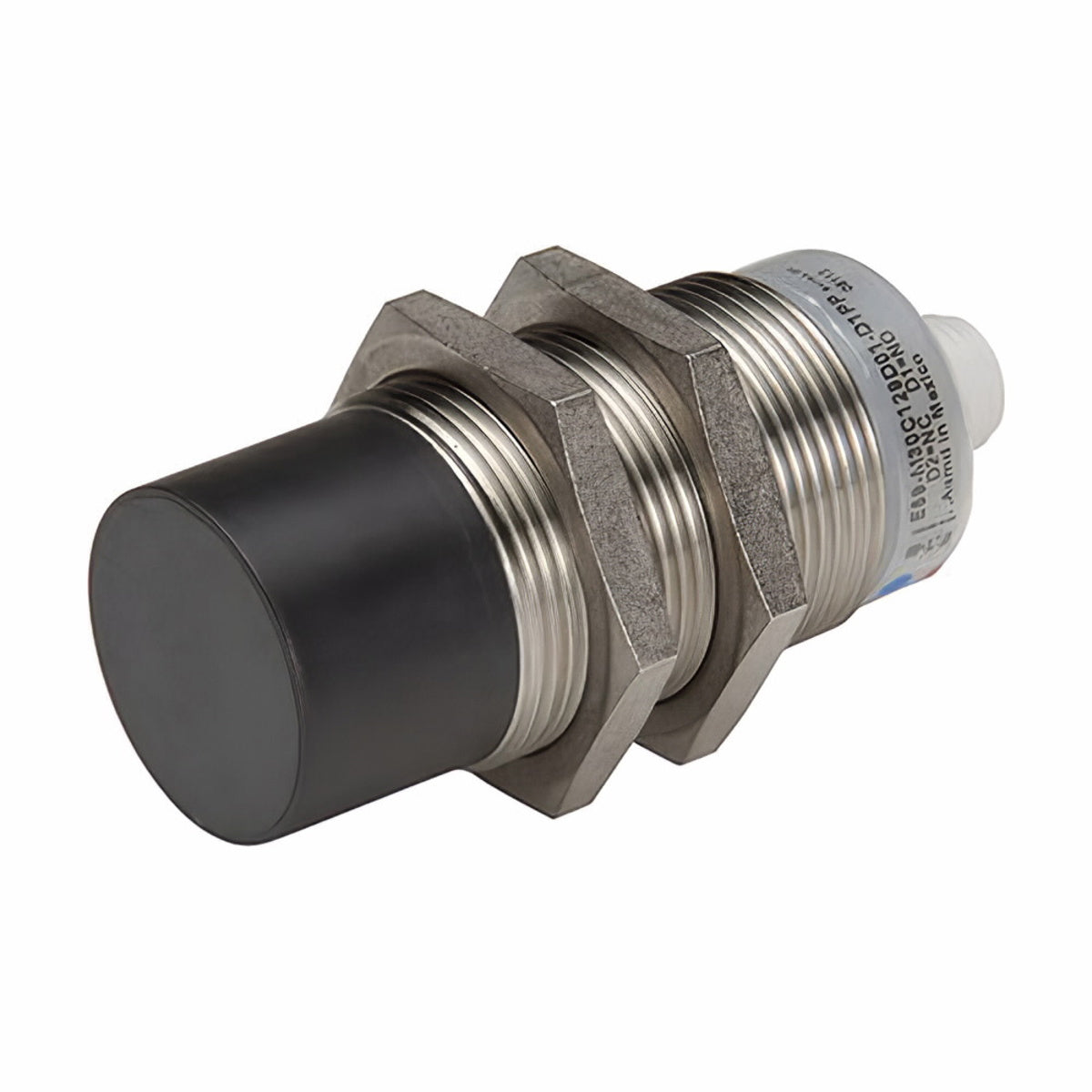

Eaton E59-M30C129D01-D1 iProx Inductive Proximity Sensor 30 mm

Product Description

The Eaton E59-M30C129D01-D1 is an inductive proximity sensor designed for a variety of industrial applications. With a sensing distance of twenty-nine millimeters, this sensor operates within a voltage range of six to forty-eight volts DC. Its robust construction includes a stainless steel barrel and a NEMA rated enclosure for extreme conditions.

• Unshielded design with a viewable LED indicator
• Compatible with both NPN and PNP output configurations
• Temperature rated from negative forty to one hundred fifty-eight degrees Fahrenheit

Product Highlights

This sensor is suitable for applications involving stationary machinery in industrial settings. Its programmable attributes allow for customized performance based on specific requirements.

Product Information

Standard Information

• Brand: Eaton
• MPN: E59-M30C129D01-D1

Technical Specifications

• Catalog Number: E59-M30C129D01-D1
• Manufacturer: Eaton
• Contact Configuration: NO
• Sensing Method: Inductive
• Size: 30 mm
• Enclosure Rating: NEMA 4, NEMA 4X, NEMA 6
• Accuracy: < 3%
• Environmental Conditions: IP67, IP69K
• Operating Temperature: -40 to 158 degrees Fahrenheit
