EATON E50BR1 SWITCH LIM 2NO-2NC RTRY/MOM SPR RTN E50

Product Description

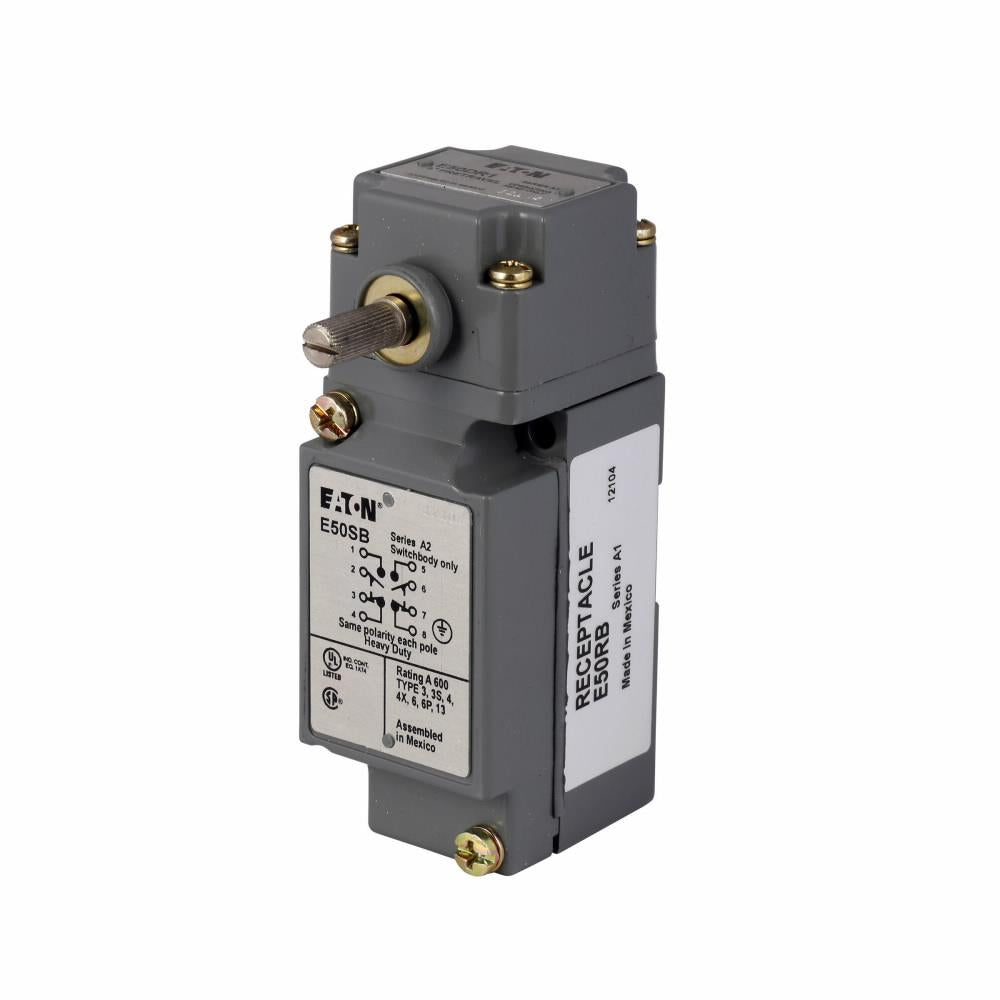

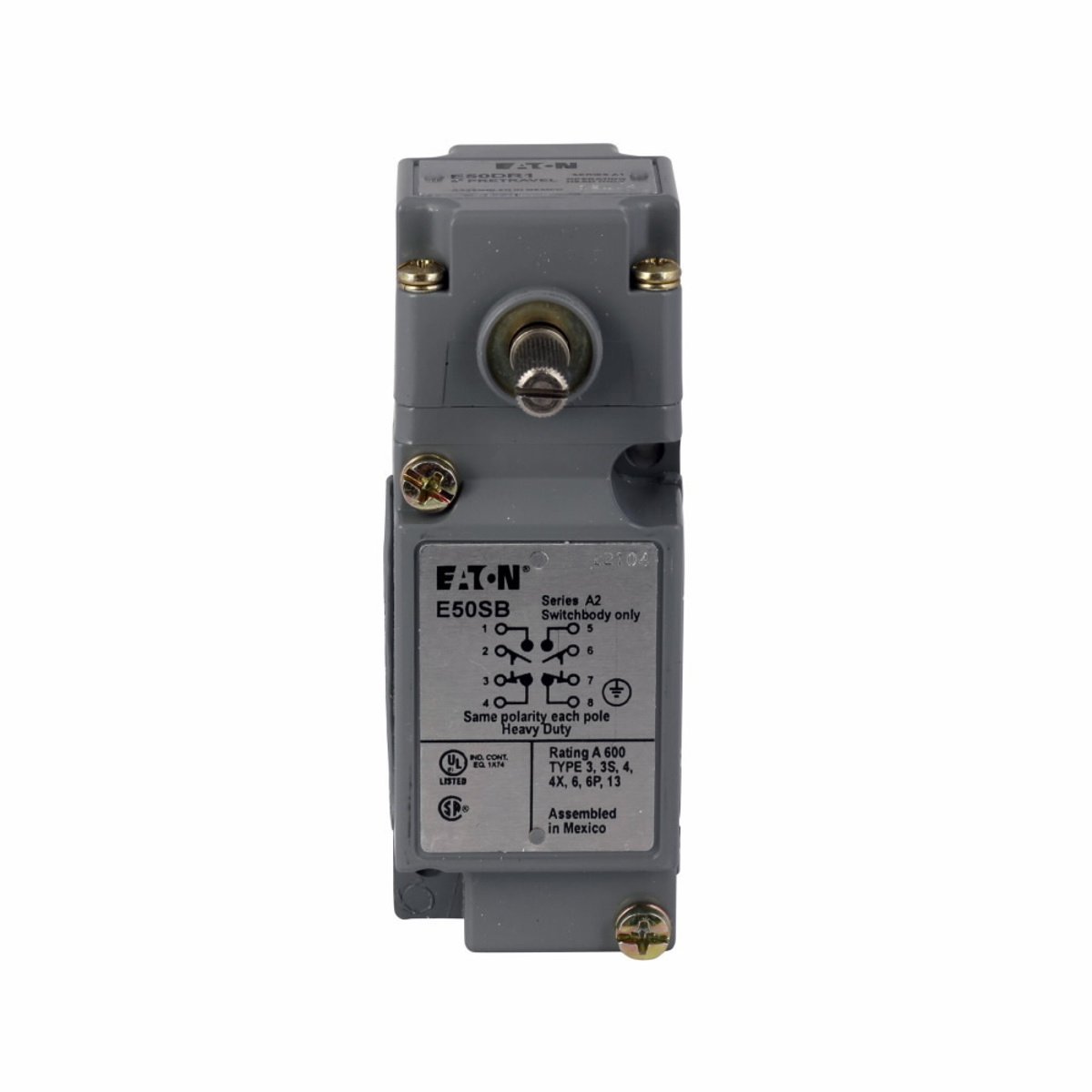

The EATON E50BR1 is a heavy-duty plug-in limit switch designed for industrial applications. This product features a side rotary actuator and has a contact configuration of 2 normally open and 2 normally closed (2NO-2NC). The switch operates at a contact rating of 10 amps at 240 volts AC and 1 amp at 250 volts DC.

• Assembled Heavy Duty Plug-In Design
• Operating Temperature Range: 10 to 200 degrees Fahrenheit
• Durable NEMA rated enclosure for environmental protection

Product Highlights

This E50BR1 limit switch is essential for automation and control equipment. Its versatile design offers easy installation and low maintenance costs.

Product Information

Standard Information

• Manufacturer: EATON
• Model Number: E50BR1

Technical Specifications

• Action: Rotary/Momentary Spring Return
• Connection Type: Screw terminal
• Contact Configuration: 2NO-2NC
• Contact Rating: 10 A at 240 VAC, 1 A at 250 VDC
• Material: Die Cast Zinc
• Enclosure Type: NEMA 1/3/3S/4/4X/6/6P/13/IP67
• Size: 4.22 in L x 1.54 in W x 2.46 in H
• Operating Temperature: 10 to 200 degrees Fahrenheit
