EATON BUSSMANN AGC-6-R Fast Acting Fuse

Product Description

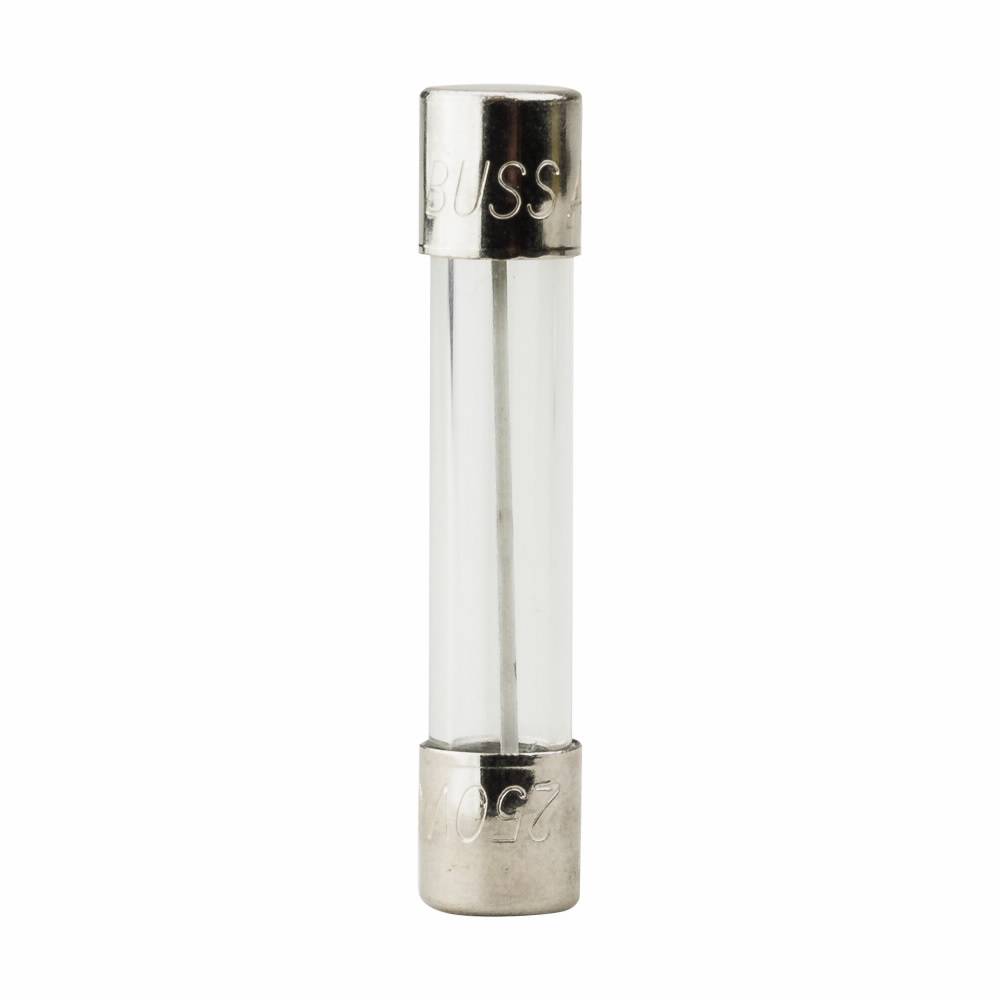

The Eaton Bussmann AGC-6-R is a fast-acting fuse designed for electronic circuit protection. This fuse has a cylindrical glass tube body that is compact in size. It features non-indicating and non-rejection characteristics, making it suitable for various applications.

• Fast acting for reliable circuit protection.
• Ferrule terminals ensure easy clip or holder mounting.
• Rated for six amps with a voltage rating of two hundred fifty VAC and thirty-two VDC.

Product Highlights

This fuse offers dependable interruption with a maximum rating of two hundred amps at two hundred fifty volts AC and ten kiloamps at one hundred twenty-five volts AC.

Product Information

Standard Information

• Brand: EATON BUSSMANN
• Series: AGC

Technical Specifications

• Type: Small Dimension
• Current Rating: 6 Amp
• Voltage Rating: 250 VAC, 32 VDC
• Interrupting Rating: 200 Amp at 250 Volt AC, 10 Kiloamp at 125 Volt AC
• Characteristics: Fast Acting
• Body Material: Glass
• Body Diameter: 1/4 Inch
• Body Length: 1-1/4 Inch
• Terminal Type: Ferrule
• Mounting Type: Clip/Holder
• Response Time: 60 min, 120 s
• Application: Electronic Circuits
• Approvals: UL 248-14, CSA, CE
