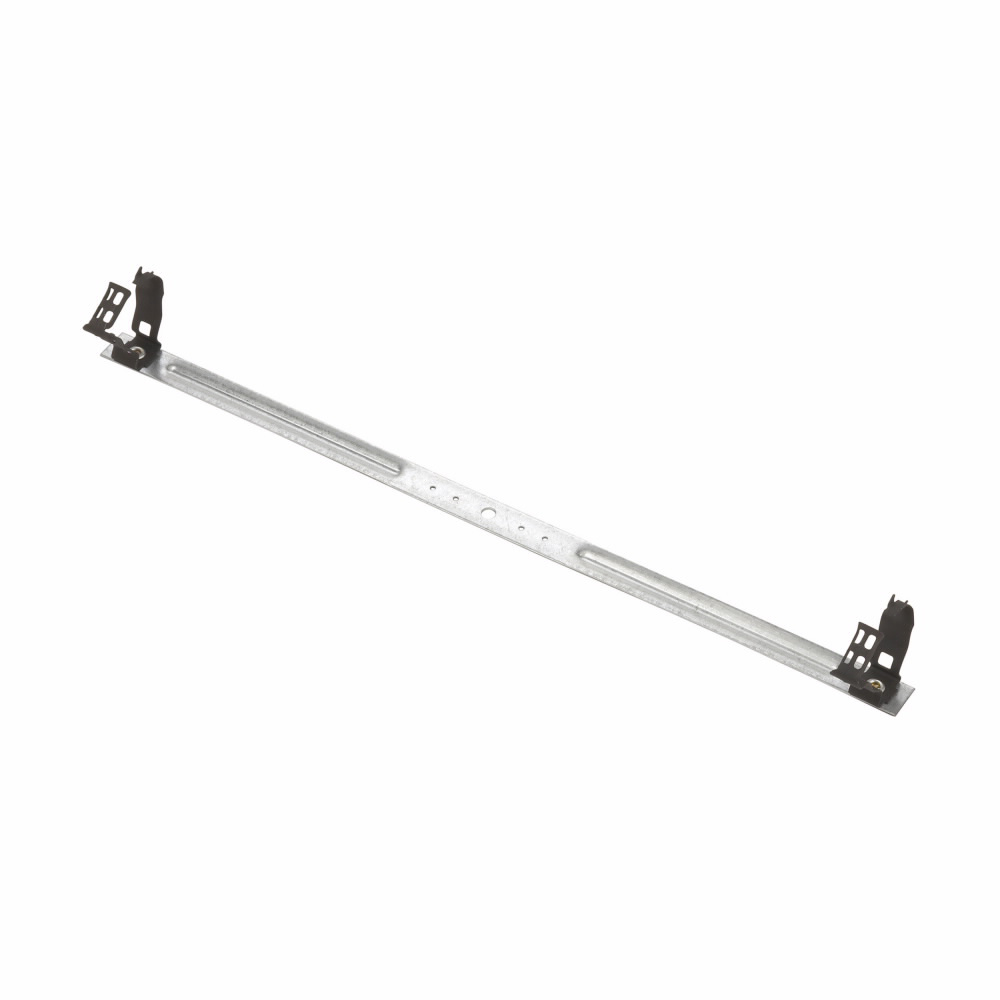

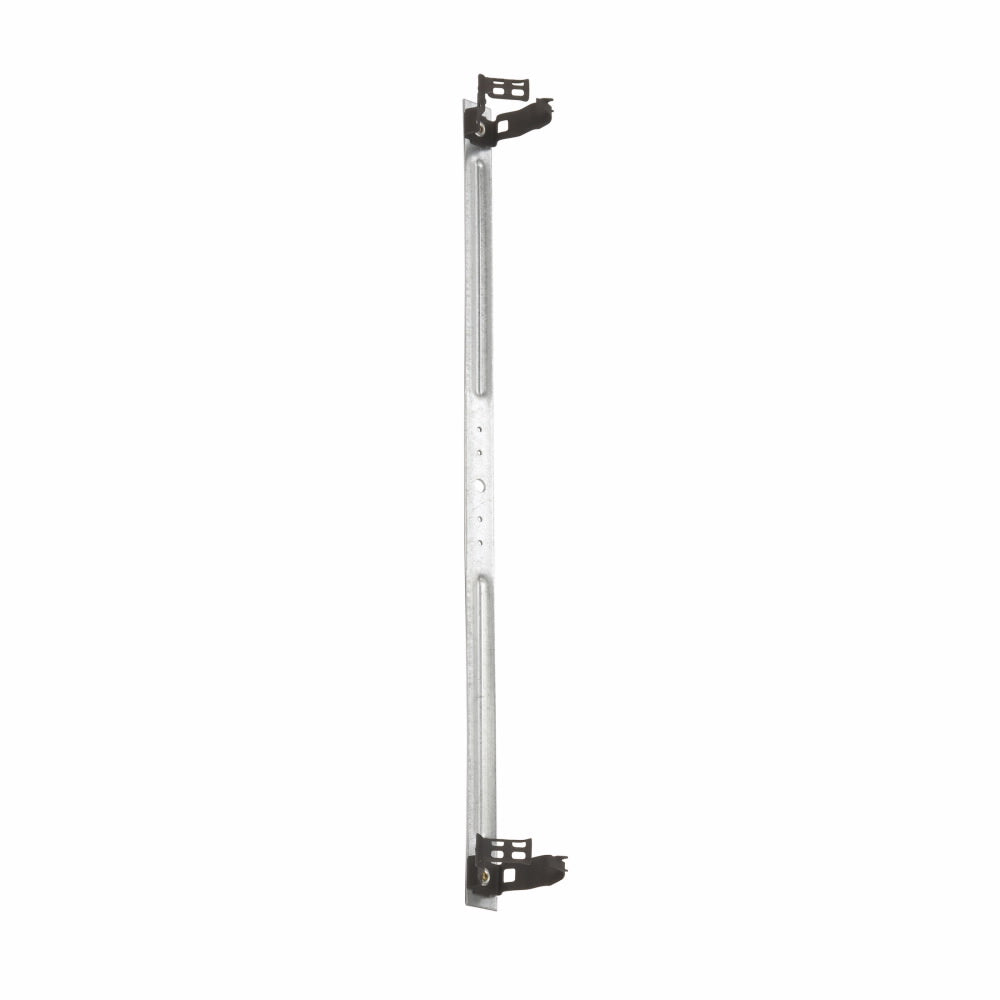

Eaton B-Line BG6S18 Guide-Rite conduit and box support fastener

Product Description

The Eaton B-Line BG6S18 Guide-Rite conduit and box support fastener is designed for conduit and cable applications. It measures 1" in height, 1" in length, and 1" in width, with a conduit size of 0.38". It provides support for conduit on either side of an electrical box.

• With multiple conduit plate
• Secures electrical boxes and conduit runs
• Helps reduce drop wires by up to 66%

Product Highlights

The BG6S18 fastener supports electrical boxes and conduit runs, reducing drop wires and ensuring secure connections.

Product Information

Standard Information

• Brand: EATON B-LINE
• Manufacturer Part Number: BG6S18

Technical Specifications

• Product Name: Eaton B-Line series Guide-Rite conduit and box support fastener
• Catalog Number: BG6-S18-MC3
• UPC: 782051528121
• Product Length/Depth: 1 in
• Product Height: 1 in
• Product Width: 1 in
• Certifications: UL/CUL listed
• Product Type: Conduit and box support fastener
• Product Category: Conduit and cable
• Type: Guide-Rite conduit and box support fasteners
• Special features: With multiple conduit plate
• Size: Conduit size: 0.38 inch
• Application: Secures electrical boxes and conduit runs
• Model: Beams
• Mounting method: Flange
• Mounting dimensions - min: 0.13
• Mounting dimensions - max: 0.25
• Material: Steel
• Brand: B-Line
• Sub Brand: Fasteners
• Height: 1 Inch
• Length: 1 Inch
• Finish: Zinc Phosphate
• Load Capacity: 25 lb
• Suitable For Use With: 3/4 in EMT/Rigid Conduit, 14/2 Thru 10/4 MC/AC Cable
