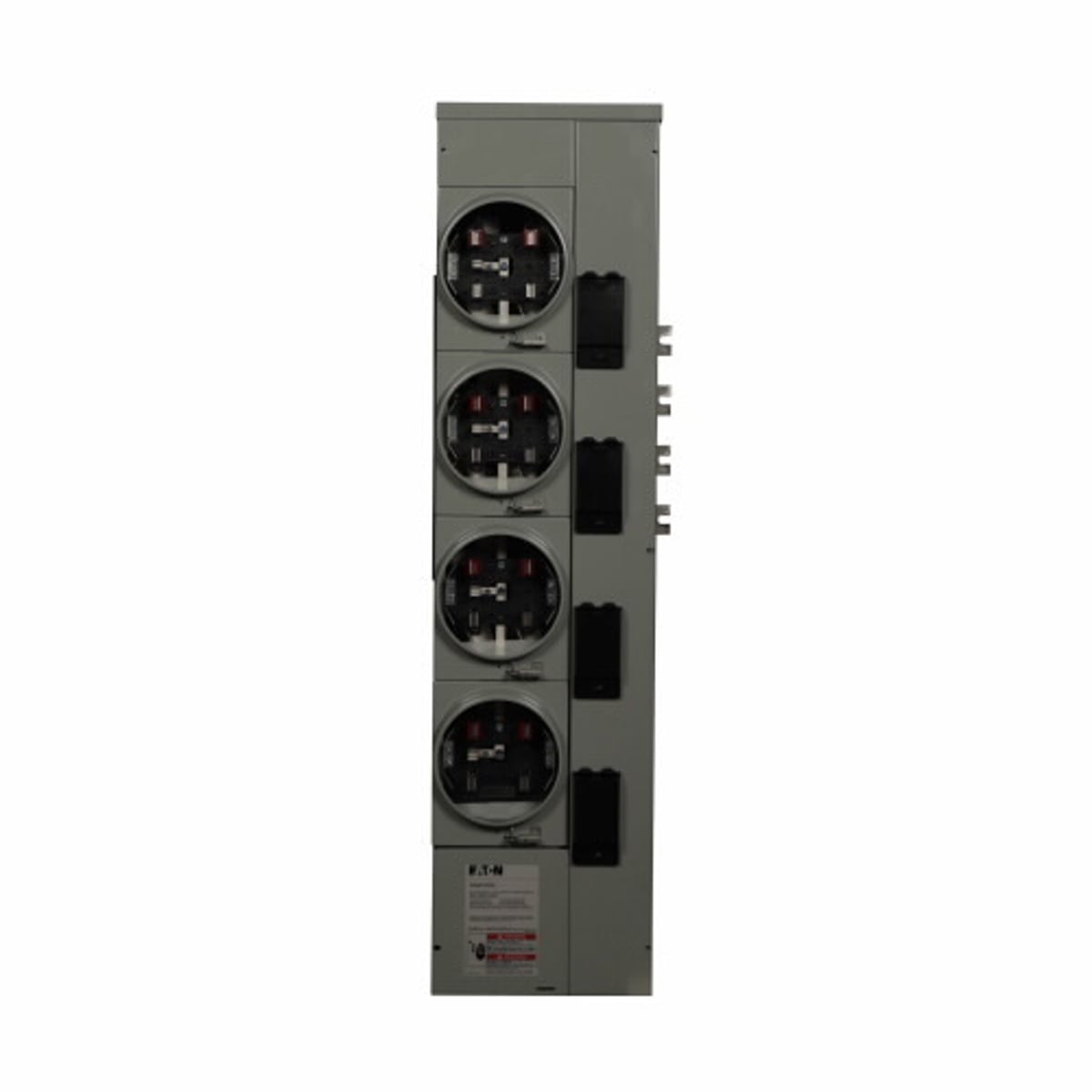

Eaton 3MM412RRL Residential Meter Stack Module 125 A (4 Sockets)

Product Description

The Eaton 3MM412RRL is a residential group metering stack module rated 120/208 VAC and 125 A per socket. It features four five-jaw meter sockets in a ringless, no-bypass configuration with an aluminum 800 A bus and a galvanized steel indoor/outdoor enclosure. The modular, plug-on mounting design supports three-phase in/single-phase out installations for apartment complexes and multi-dwelling units.

• Four five-jaw meter sockets, 125 A per socket, 120/208 VAC; ringless security with no bypass
• Aluminum bus rated 800 A; galvanized steel NEMA 3R enclosure with rust-inhibiting primer and baked enamel
• Plug-on mounting, three-phase in/single-phase out configuration; short-circuit rating 100 kA

Product Highlights

Group metering stack module with four 5-jaw sockets, 125 A rating, 120/208 VAC, 800 A aluminum bus, and indoor/outdoor NEMA 3R enclosure.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: 3MM412RRL
• Country of Origin: United States

Technical Specifications

• Brand: Eaton
• Manufacturer Part Number (MPN): 3MM412RRL
• Type: Group metering / residential meter stack
• Voltage Rating: 120/208 VAC
• Amperage Rating (per socket): 125 A
• Bus Material: Aluminum
• Bus Rating: 800 A
• Number of Sockets: 4
• Number of Jaws: 5
• Phase: Three-phase in, single-phase out (1/3 phase)
• Enclosure Type: Galvanized steel, indoor/outdoor (NEMA 3R)
• Mounting Type: Plug-On
• Short Circuit Current Rating: 100 kA
• Dimensions: 54.5 in L x 15.0 in W x 8.0 in H
• Weight: 61 lb
• Security: Ringless (no bypass)
• Standards/Certifications: UL Listed
• Application: Residential group metering (apartments, duplexes, triplexes)
• Compatible Main Breakers: BR2, BRH2, BRHH2, BRX2
• Country of Origin: United States
• UPC: 786849052157
