Eaton 270LA 15A 125V Rcpt

Product Description

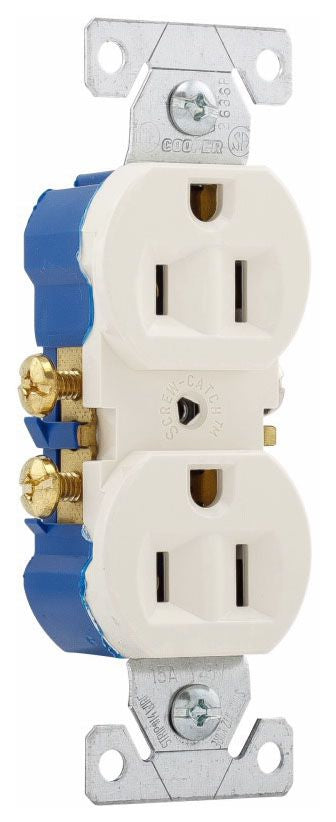

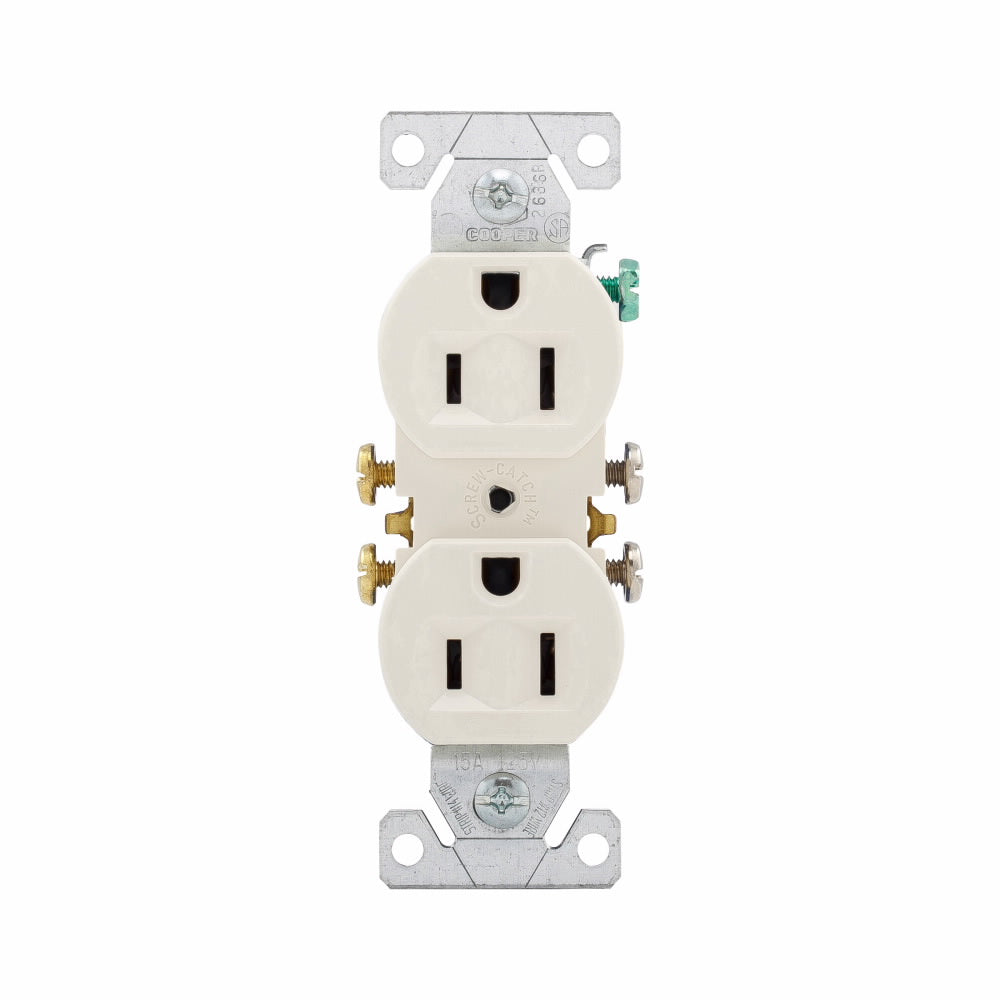

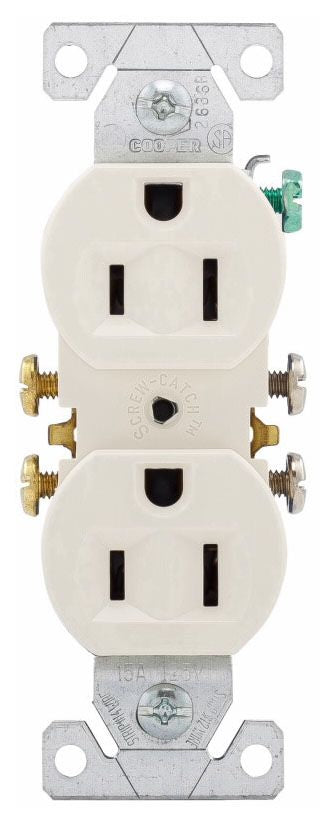

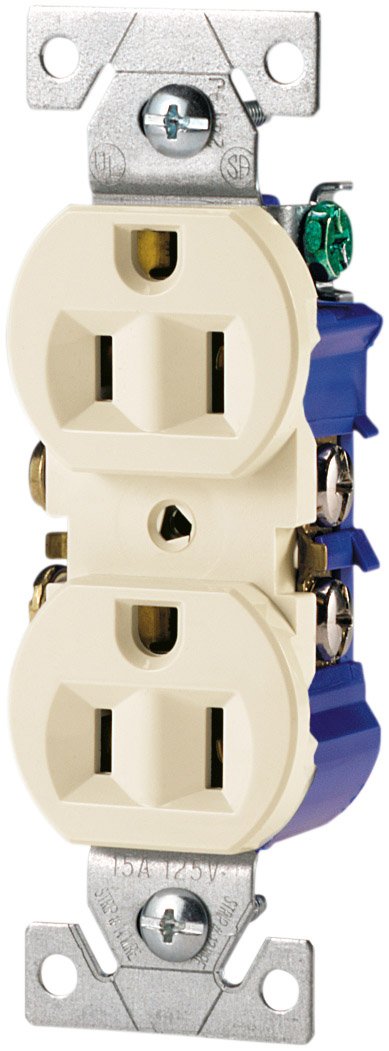

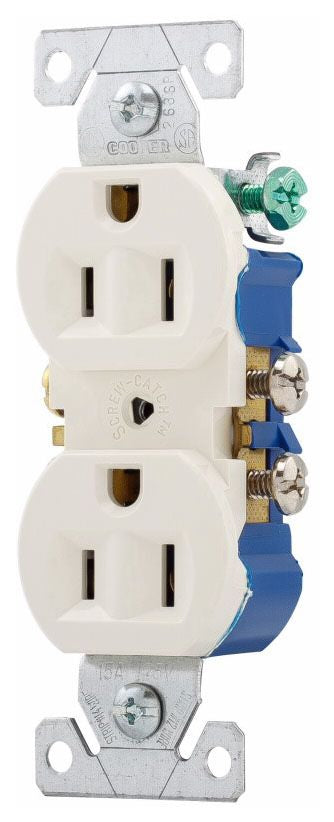

The EATON 270LA is a duplex type receptacle with a 5-15R configuration. Constructed from thermoplastic material, this standard grade receptacle is UL approved and features high impact resistance. It supports side and push wiring and is rated for 125V and 15A, with 2 poles and 3 wires.

• Duplex type receptacle with 5-15R configuration
• Constructed from thermoplastic material
• Rated for 125V and 15A

Product Highlights

Standard grade duplex receptacle with thermoplastic construction, UL approval, and high impact resistance.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: 270LA
• Country of Origin: USA

Technical Specifications

• Type: Duplex
• Material: Thermoplastic
• Configuration: 5-15R
• Wires: 3
• Grade: Standard
• Approval: UL
• Voltage Rating: 125 V
• Current Rating: 15 Ampere
• Poles: 2
• Wiring: Side, Push
• NEMA Rating: 5-15R
• Amperage Rating: 15A
• Number of Poles: 2
• Standards/Approvals: UL Listed|CSA Certified|NOM Certified
• Temperature Rating: -20 to 60 deg C
• Terminal Type: Push-In/Side Wire
• Mounting Method: Flush
• Receptacle Type: Duplex
• Allowable Wire Size: Push-In Terminals Wiring: #14 AWG copper (CU) Only, Side Wiring: #10-14 Copper or Copper Clad Aluminum
• Torque Rating: 14 lbf-inch
• Design Type: Straight blade
• Face/Body Material: Impact-resistant thermoplastic
• Product Length/Depth: 1.31 in
• Product Height: 4.19 in
• Product Width: 0.69 in
