E-MON E10-3208100JKIT Class 1000 kWh Submeter Kit

Product Description

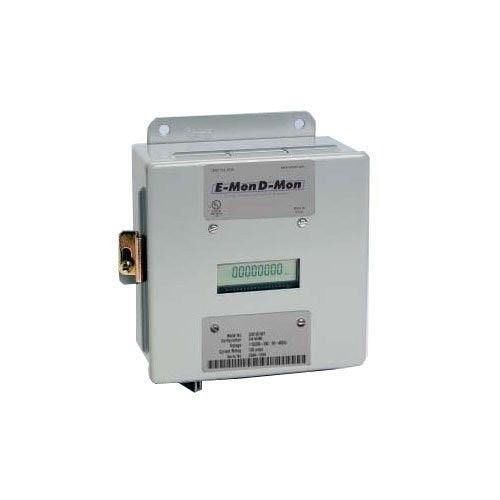

The E-MON E10-3208100JKIT is a Class 1000 kWh submeter kit suitable for monitoring electrical consumption in single-phase systems. This device operates at a voltage range of 120/208-240 and supports an amperage of 100A. It comes equipped with split-core current sensors that have a two-volt output, allowing for safe and flexible installation. The meter features a direct-read LCD display that indicates both accumulated kWh and real-time kW load.

• Provides revenue-grade accuracy of +/- 0.2% from 1% to 100% of rated load.
• Uses split-core sensors for installation safety and remote mounting up to 2,000 feet.
• Supports WEBs-AX Energy Analytics for tenant billing.

Product Highlights

The E-MON E10-3208100JKIT ensures reliable readings even during power interruptions thanks to its non-volatile memory. It is housed in an industrial-grade JIC steel enclosure for durability and is designed for surface mounting, with compatibility for both 1-Phase, 2-Wire and 2-Phase, 3-Wire configurations.

Product Information

Standard Information

• Brand: E-Mon
• Catalog Number: E10-3208100J-KIT

Technical Specifications

• Voltage: 120/208-240 Volt
• Amperage: 100A
• Phase: Single-Phase
• Enclosure: JIC Steel Enclosure
• Output: Pulse Output
• Current Sensors: 2 Split-Core Current Sensors with 2V Output
• Current: 100 Amp
• Depth: 3 inches
• Height: 7.5 inches
• Width: 6 inches
• Mounting: Surface
• IP/NEMA Rating: NEMA 3R
