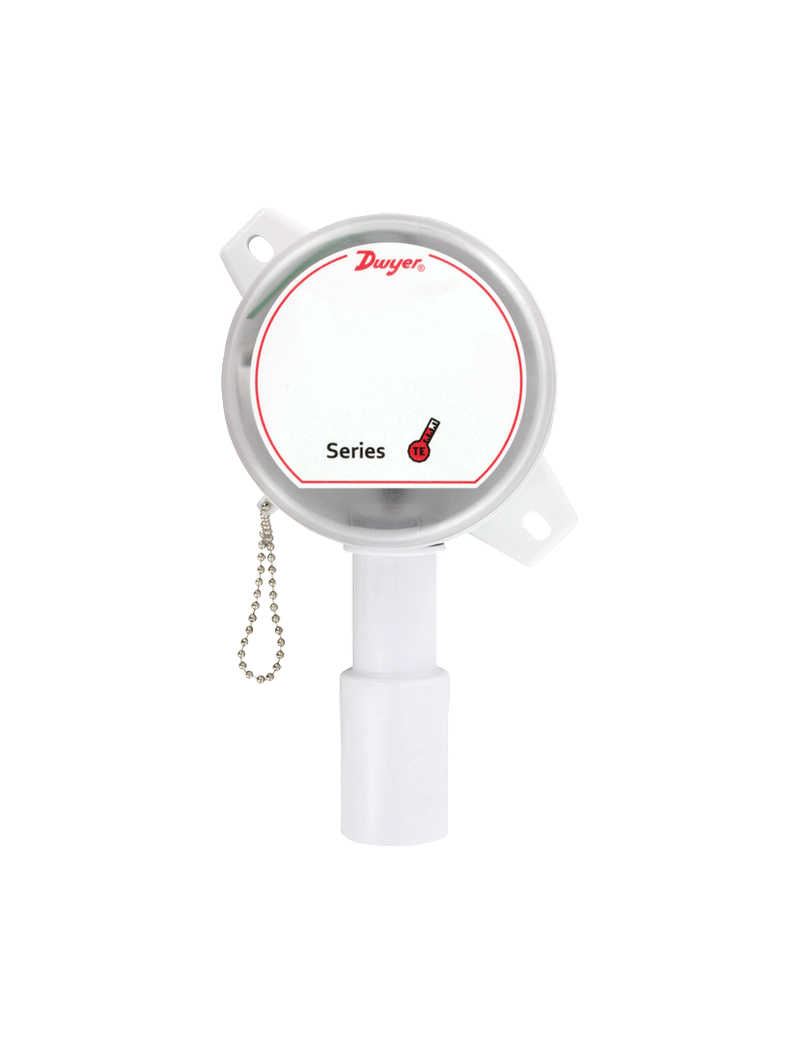

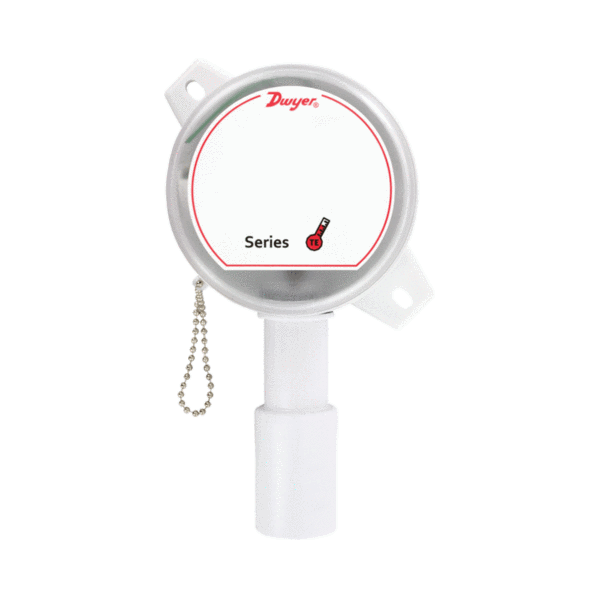

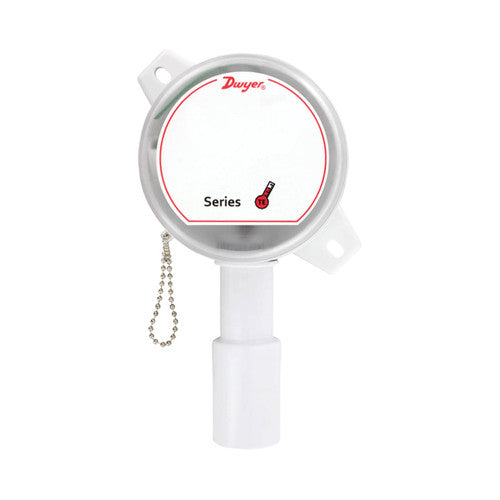

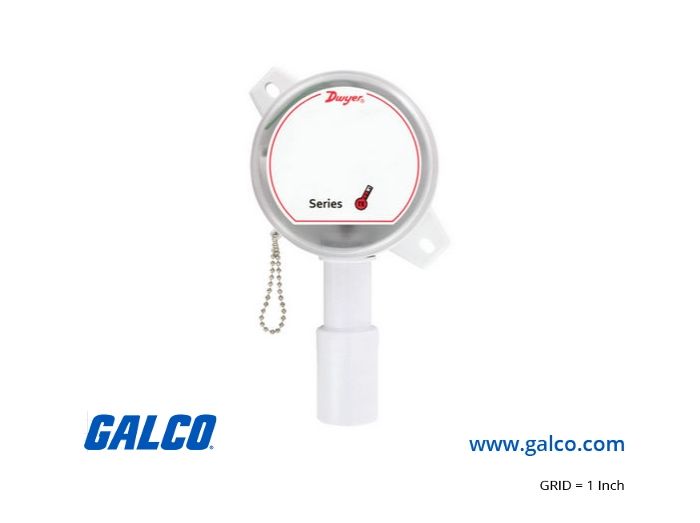

Dwyer TE-OSA-F Outdoor Air Temperature Sensor

Product Description

The Dwyer TE-OSA-F is an outdoor air temperature sensor made to measure external temperatures accurately. It uses a 20K thermistor as the sensing element. This unit is housed in a polycarbonate case that is rated NEMA 3R (IP54), suitable for various outdoor applications. The design helps reduce the effects of radiated heat, ensuring precise measurements. A removable terminal block simplifies the wiring process.

• 20K thermistor used as the sensor element
• NEMA 3R (IP54) rated polycarbonate housing
• Operating temperature range from -40 to 302 degrees Fahrenheit

Product Highlights

This sensor is ideal for environments such as cold stores, greenhouses, and production plants.

Product Information

Standard Information

• Manufacturer: Dwyer Instruments
• MPN: TE-OSA-F

Technical Specifications

• Sensor Element: 20K Thermistor
• Housing Material: Polycarbonate
• Enclosure Rating: NEMA 3R, IP54
• Application: Cold Stores, Greenhouses, Production Plants, Warehouses, Outdoor
• Output Signal: Resistance
• Accuracy: Thermistor temperature sensor: ±0.22°C at 25°C (±0.4°F at 77°F)
• Operating Temperature: -40 to 302 degrees Fahrenheit, -40 to 150 degrees Celsius
• Weight: 0.65 lb
• Product Series: TE
• Function: Temperature
• Display: No Display
• Override: No
• Set Point: No
