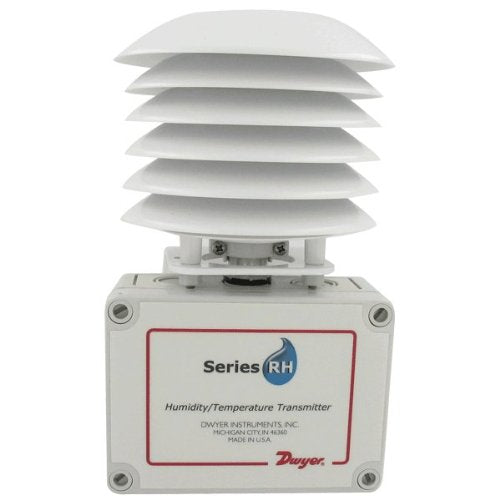

Dwyer RHP-2R1B Humidity/Temperature Transmitter 4-20 mA

Product Description

The Dwyer Instruments RHP-2R1B is a humidity and temperature transmitter designed for effective outdoor and indoor climate management. It features a 4-20 mA output and a radiation shield, making it suitable for environmental control in HVAC systems and industrial applications.

• Humidity Accuracy: 2%
• Temperature Sensor: 10K Thermistor Type II
• Wide Operating Range: -40 to 140°F

Product Highlights

This transmitter integrates humidity and temperature readings efficiently, providing essential data for HVAC systems and industrial process control.

Product Information

Standard Information

• Manufacturer: Dwyer Instruments, Inc.
• Model Number: RHP-2R1B

Technical Specifications

• Output Signal: 4-20 mA
• Humidity Range: 2% RH
• Temperature Limits: -40 to 140°F
• Power Requirements: 10-35 VDC
• Operating Environment: Outdoor with radiation shield
• Sensor Type: Passive temperature thermistor or RTD
• Display Options: Optional two-line alpha numeric LCD (duct mounted)
• Mount Type: Duct
