Product Description

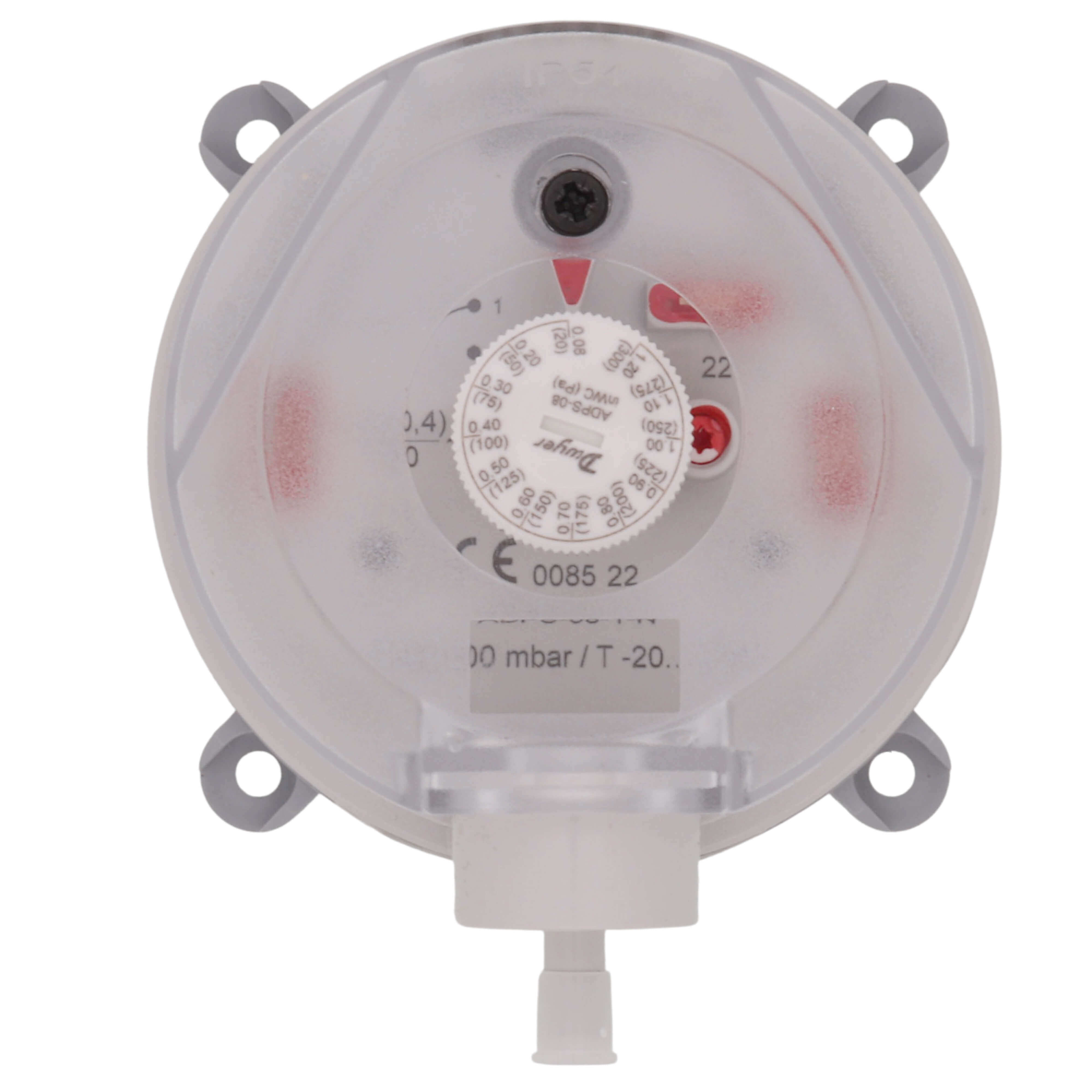

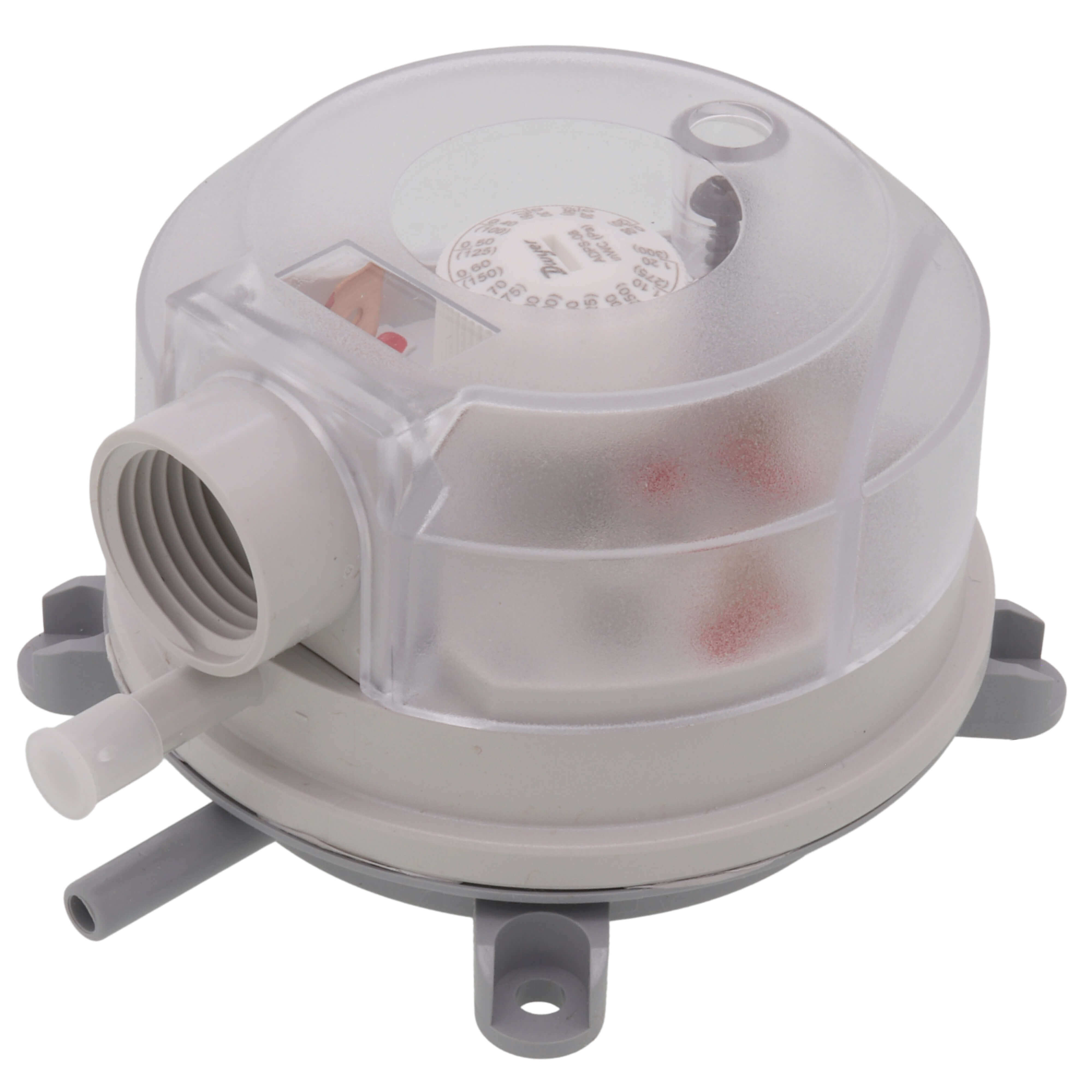

The Dwyer Instruments ADPS-08-1-N is a differential pressure switch for controlling and measuring pressure in HVAC systems and industrial applications. It provides precise pressure range readings from zero point zero eight to one point two inches of water column. This switch is built for durability and is designed to function reliably in various environments.
- Pressure range: 0.08 to 1.2 inches of water column (wc)
- Accuracy: ±2% of full scale
- Single pole double throw (SPDT) electrical contacts
Product Highlights
This device is suitable for monitoring and controlling pressure in HVAC systems, clean rooms, and medical equipment. Its adjustable set points allow for customization based on specific requirements.
Product Information
Standard Information
-
Brand: Dwyer Instruments
-
MPN: ADPS-08-1-N
Technical Specifications
-
Pressure Range: 0.08 to 1.2 inches of water column
-
Electrical Rating: Max. 1.5 A res./0.4 A ind./250 VAC
-
Max Operating Pressure: 40 w.c. (10 kPa)
-
Temperature Limits: -4 to 185 °F
-
Process Connections: 5/16 outside diameter tubing
-
Weight: 4.4 oz (125 g)
