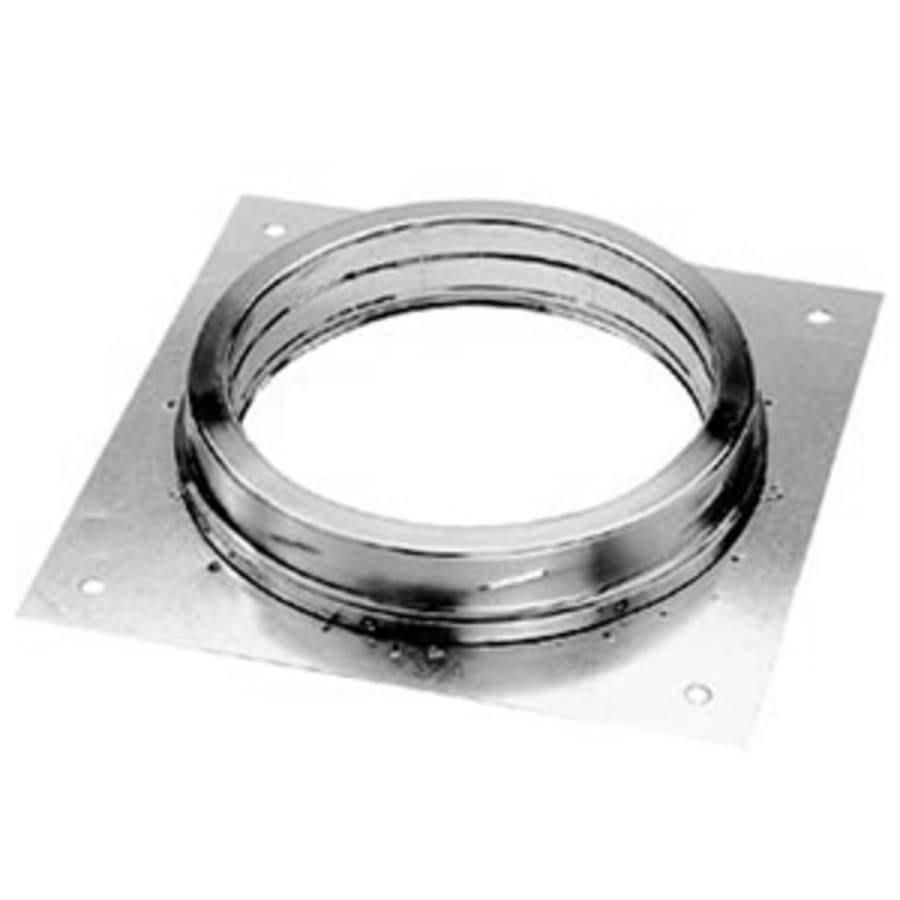

Duravent 8DT-AP DuraTech Anchor Plate 8 Inch

Product Description

The DURAVENT 8DT-AP DuraTech Anchor Plate features a sleek one-inch wall design for easy installation, such as through 16" on-center rafters. It is used to attach DuraTech Chimney to zero-clearance or masonry fireplaces. This anchor plate features Thermal Tech blanket insulation encased between dual walls.

• Suitable for use with Class A Chimney Pipe
• Inner diameter of 8 inches
• Outer diameter of 10 inches

Product Highlights

The DuraTech anchor plate is designed for use with wood stoves, fireplaces, furnaces, boilers, ranges, water heaters, or other appliances fueled by wood, oil, coal, or gas.

Product Information

Standard Information

• Brand: DURAVENT
• Manufacturer Part Number: 8DT-AP

Technical Specifications

• Type: Anchor Plate
• Finish: Galvanized
• Series: DuraTech
• Material: 430 Stainless Steel/Galvalume
• Certifications: UL 103 HT|ULC S604
• Suitable For Use With: Class A Chimney Pipe
• Inner Diameter: 8"
• Outer Diameter: 10"
• Inner Pipe Gauge: 25
• Outer Pipe Gauge: 26
• Pipe Inside Diameter: 8 in.
• Configuration: Anchor Plate
• Inner Pipe Material: 430 Stainless Steel
• Insulation Type: Thermal Tech
• Outer Pipe Material: Galvalume
• Pipe Class: Class A
• Pipe Shape: Round
• Vent Construction: Double Wall
• Fuel Type: All Fuel, Coal, Gas, Oil, Wood
• Application: Appliance, Boiler, Fireplace, Furnace, Ranges, Water Heater, Wood Stove, Zero-Clearance Fireplace
• Approved for Commercial Use: No
• UL Listing Number: UL 103 HT, ULC S604
