Duravent 6DT-FCS-2 Ceiling Support 6 inch Flat

Product Description

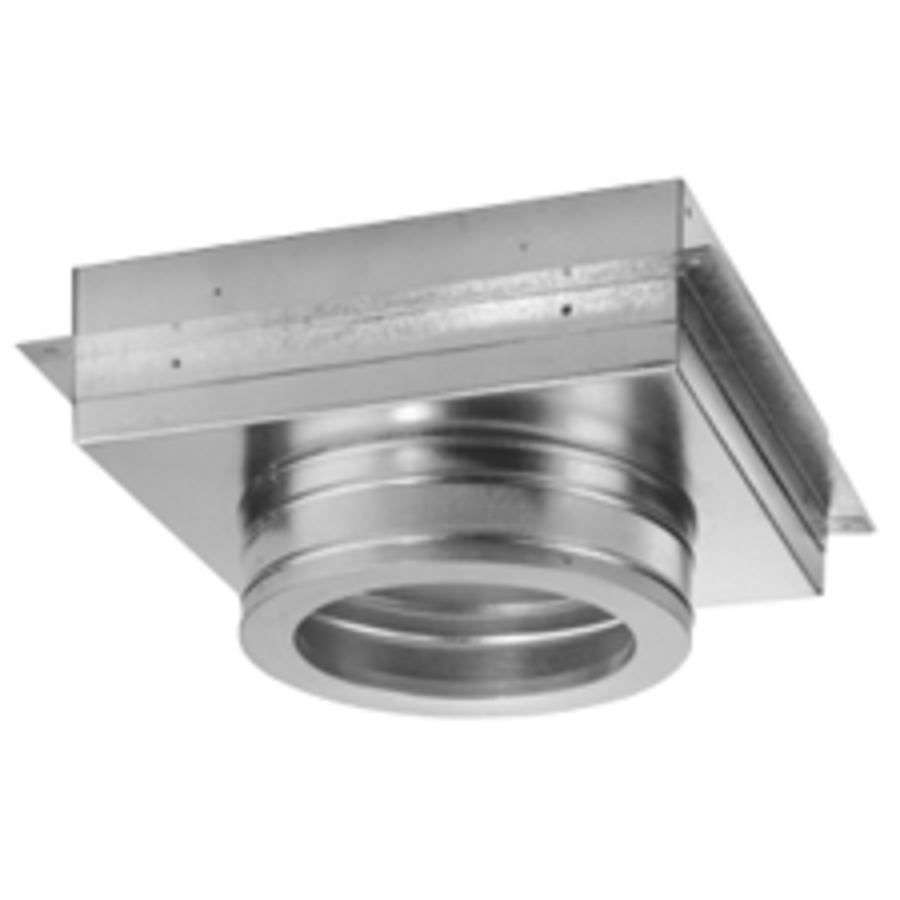

The DURAVENT 6DT-FCS-2 ceiling support is designed for 6-inch flat venting systems. It supports chimney pipe and provides a positive connection between the support box and chimney using a built-in twist-lock. Designed for installation in flat ceilings only and supports up to 60' of DuraTech Chimney. A 2" wide trim collar is included.

• Supports chimney pipe with a built-in twist-lock.
• Designed for flat ceiling installation.
• Supports up to 60' of DuraTech Chimney.

Product Highlights

This ceiling support box ensures a secure chimney connection and is suitable for various heating appliances using DuraTech chimney systems.

Product Information

Standard Information

• Brand: DURAVENT
• Manufacturer Part Number: 6DT-FCS-2

Technical Specifications

• Brand: Duravent
• Box Thickness: 4"
• Adapter Thickness: 3"
• Inner Diameter: 6-1/4"
• Outer Diameter: 9"
• Configuration: Support Box
• Inner Pipe Material: 430 Stainless Steel
• Insulation Type: Thermal Tech
• Outer Pipe Material: Galvalume
• Pipe Class: Class A
• Pipe Shape: Round
• Vent Construction: Double Wall
• Fuel Type: All Fuel, Coal, Gas, Oil, Wood
• Application: Appliance, Boiler, Fireplace, Furnace, Ranges, Water Heater, Wood Stove, Zero-Clearance Fireplace
• Approved for Commercial Use: No
• Certifications: UL
• Collection: DuraTech
• UL Listing Number: UL 103 HT, ULC S604
• Duct size: 6 in.
• Material: Other Material
• Size: 6" Flat
