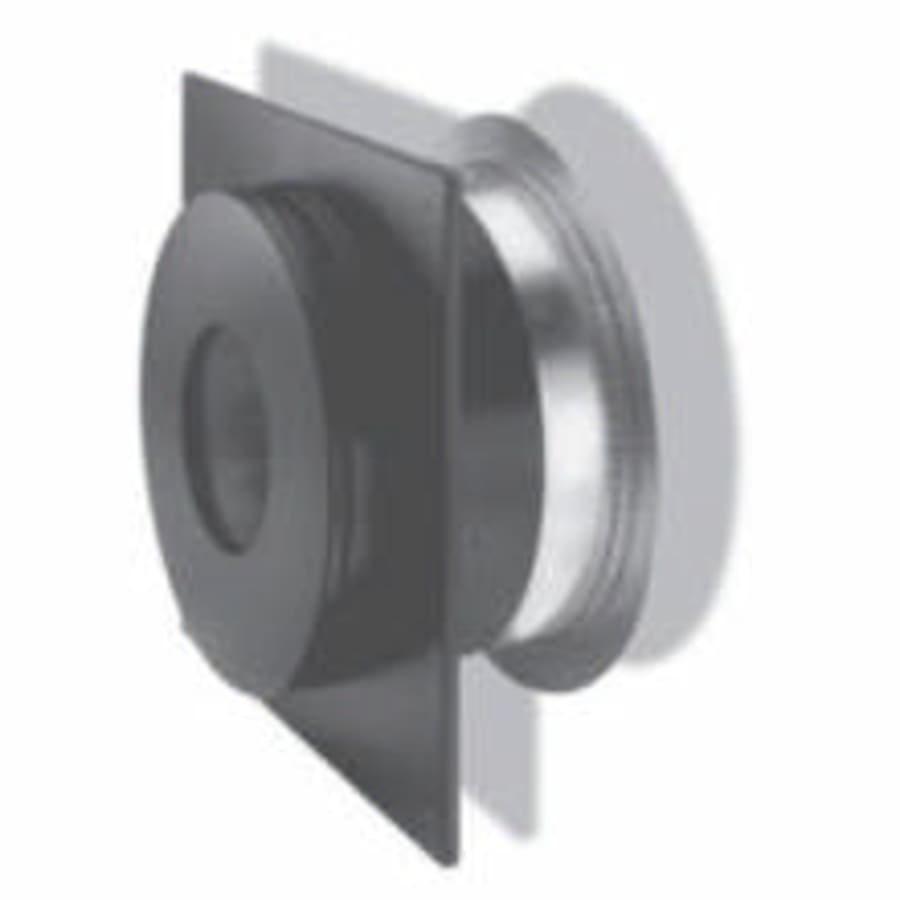

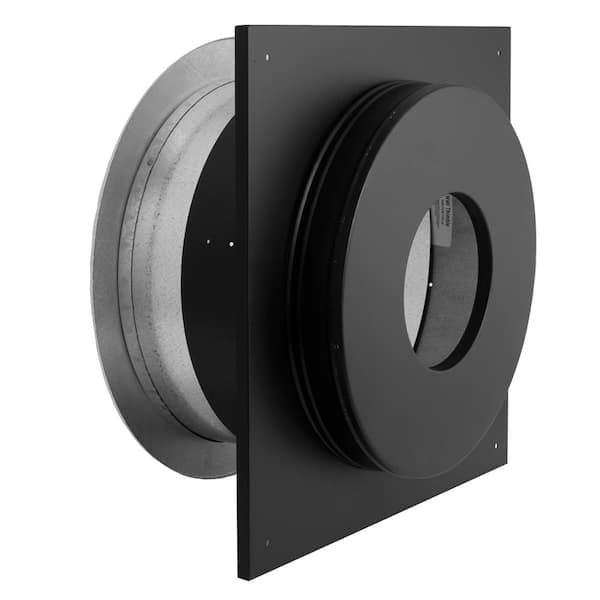

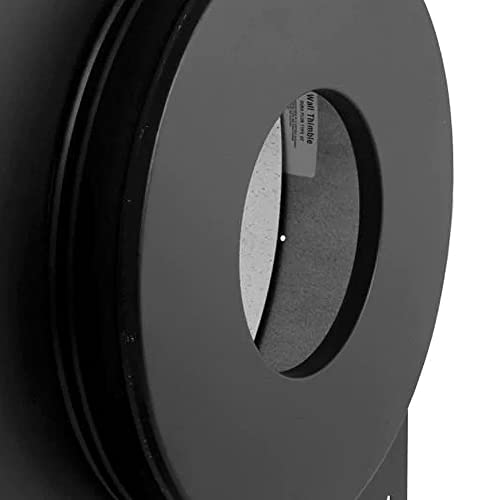

Duravent 6DP-WT DuraPlus Wall Thimble 6 inch

Product Description

The DURAVENT 6DP-WT DuraPlus Wall Thimble is designed to protect chimneys as they pass through walls. It adjusts from 4-1/4 to 7-1/4 inches and can be field extended up to 16 inches. This triple-wall chimney component is suitable for use with wood stoves, fireplaces, furnaces, and other appliances fueled by wood, oil, coal, or gas.

• Designed to fit between standard wall studs
• Adjusts 4-1/4 - 7-1/4 in. and can be field extended up to 16 in.
• Protects chimney as it passes through a wall

Product Highlights

Protects chimney as it passes through a wall. Adjusts 4-1/4 - 7-1/4 in. and can be field extended up to 16 in.

Product Information

Standard Information

• Brand: DURAVENT
• Manufacturer Part Number: 6DP-WT

Technical Specifications

• Brand: Duravent
• Manufacturer: M & G Duravent Inc
• Size: 6"
• Model #: 6DP-WT
• Configuration: Wall Thimble
• Inner Pipe Material: 430 Stainless Steel
• Insulation Type: Air, Ceramic blanket
• Intermediate Liner: .018" Aluminized Steel
• Outer Pipe Material: Galvanized Steel
• Pipe Class: Class A
• Pipe Shape: Round
• Vent Construction: Triple Wall
• Fuel Type: All Fuel, Coal, Gas, Oil, Wood
• Application: Appliance, Boiler, Fireplace, Furnace, Ranges, Stove, Water Heater, Wood Stove
• Approved for Commercial Use: No
• Certifications: UL
• Collection: DuraPlus
• UL Listing Number: UL 103 HT
• Inner Pipe Gauge: 27
• Outer Pipe Gauge: 28
• Pipe Inside Diameter: 6 in.
