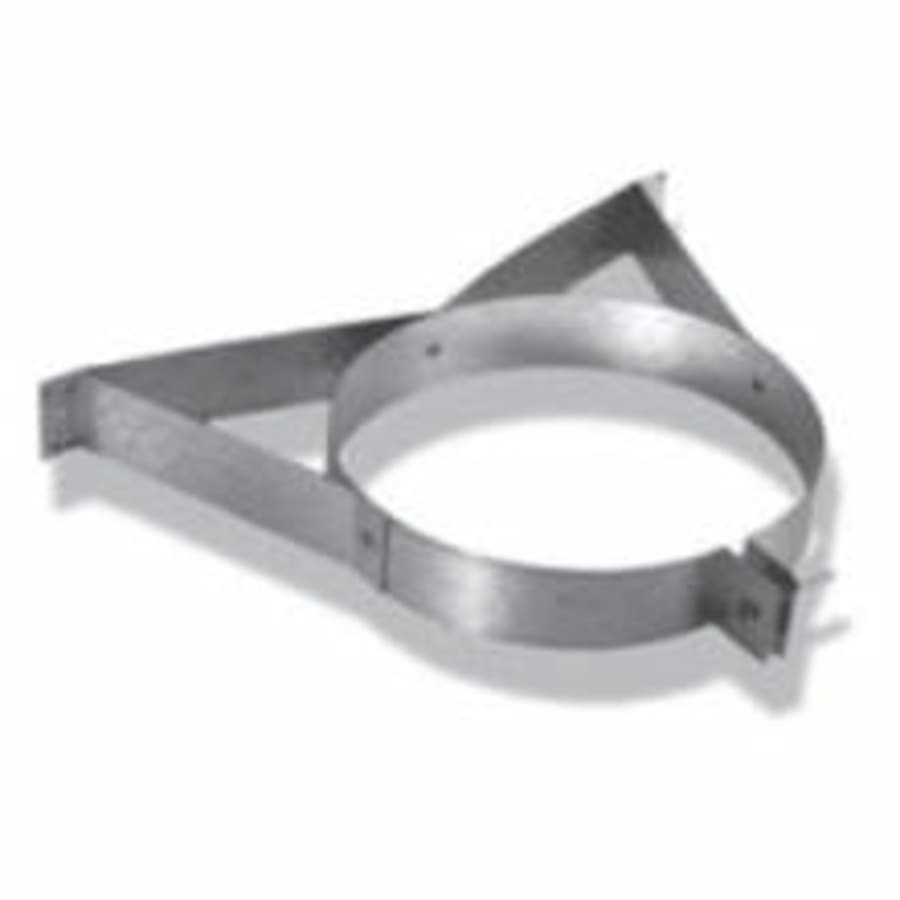

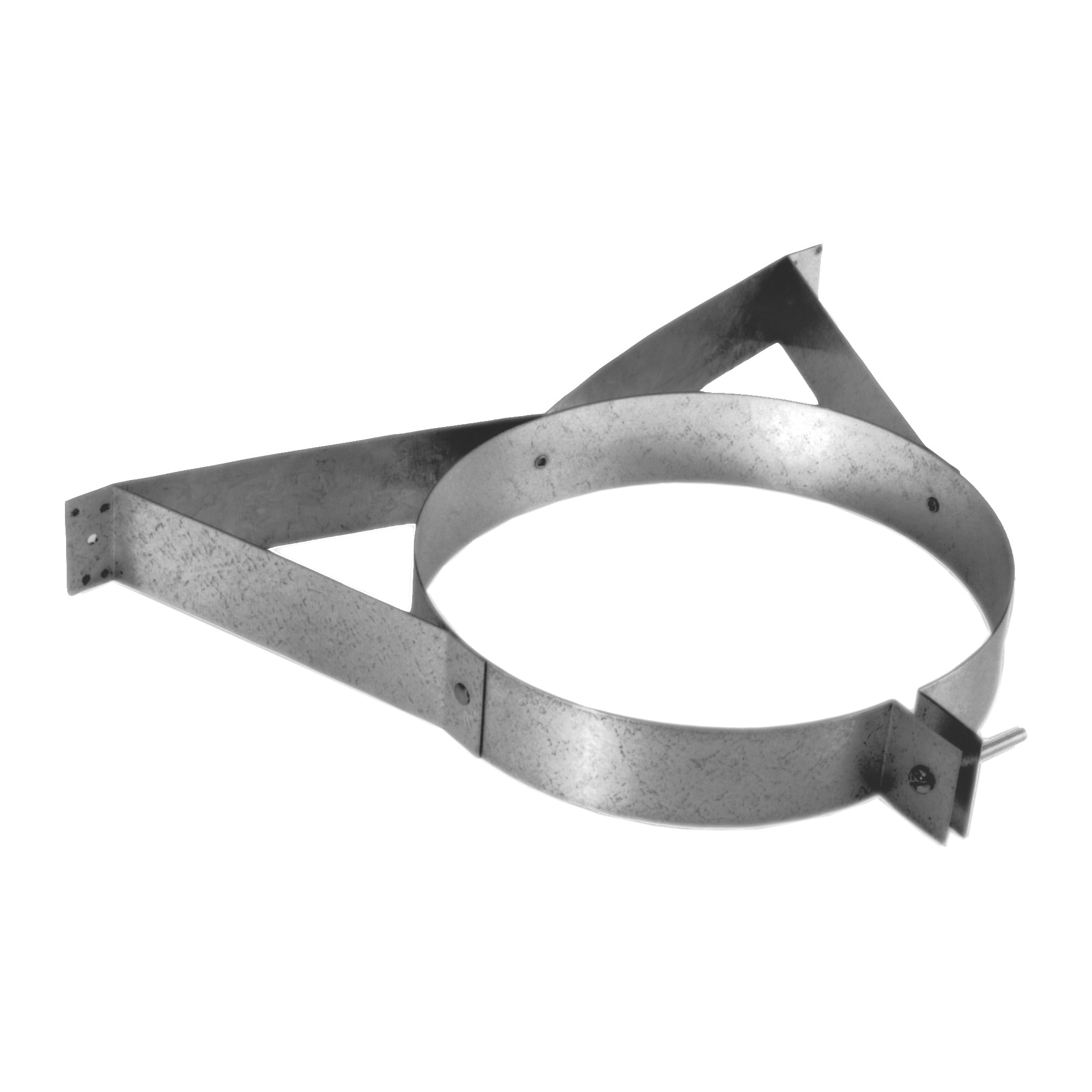

Duravent 6DP-WS DuraPlus Wall Strap 6 inch

Product Description

The DURAVENT 6DP-WS DuraPlus Wall Strap is designed for interior or exterior installations to support and stabilize the chimney, ensuring a 2" clearance. Wall straps are required every 4' on exterior installations. Constructed from galvanized steel, it resists corrosion and supports the chimney structure.

• Supports and stabilizes chimney
• Provides 2" clearance
• Suitable for interior or exterior installations

Product Highlights

The DuraPlus wall strap ensures stability and proper clearance for chimney installations, made with durable galvanized steel.

Product Information

Standard Information

• Brand: DURAVENT
• Manufacturer Part Number: 6DP-WS
• Country of Origin: United States

Technical Specifications

• Country of Origin (subject to change): United States
• Mounting Type: Wall Mount
• Manufacturer: M&G Duravent Inc
• Part Number: 6DP-WS 9068
• Item Weight: 2 pounds
• Product Dimensions: 10 x 16 x 2 inches
• Item model number: 6DP-WS
• Is Discontinued By Manufacturer: No
• Style: DuraPlus
• Finish: Galvanized
• Item Package Quantity: 1
• Batteries Included?: No
• Batteries Required?: No
• Configuration: Bracket, Strap
• Inner Pipe Material: 430 Stainless Steel
• Insulation Type: Air, Ceramic blanket
• Intermediate Liner: .018" Aluminized Steel
• Outer Pipe Material: Galvanized Steel
• Pipe Class: Class A
• Pipe Shape: Round
• Vent Construction: Triple Wall
• Fuel Type: All Fuel, Coal, Gas, Oil, Wood
• Application: Appliance, Boiler, Fireplace, Furnace, Ranges, Stove, Water Heater, Wood Stove
• Approved for Commercial Use: No
• Certifications: UL
• Collection: DuraPlus
• UL Listing Number: UL 103 HT
• Inner Diameter: 10"
• For Use With: 6" Inner Diameter DuraPlus Triple Wall Chimney Pipe
• Total Width: 16-1/8"
• Adjusts: 2"- 6" from wall
• For Interior or Exterior Installations: Yes
• Wall Straps are Required Every 8" on Exterior Buildings Only: Yes
• Gives: 2" Clearance
• Depth: 2 in.
• Inner Pipe Gauge: 27
• Outer Pipe Gauge: 28
• Pipe Inside Diameter: 6 in.
• Product Weight: 2 lbs.
• Width: 16 in.
• Material: Galvanized Steel
• Included (qty.): 1
• Length: 12.75 in
• Height: 15.33 in
• Capacity: 9.62 lb
• Dimensions L x W x H (in.): 17.0 x 2.0 x 12.81 in
