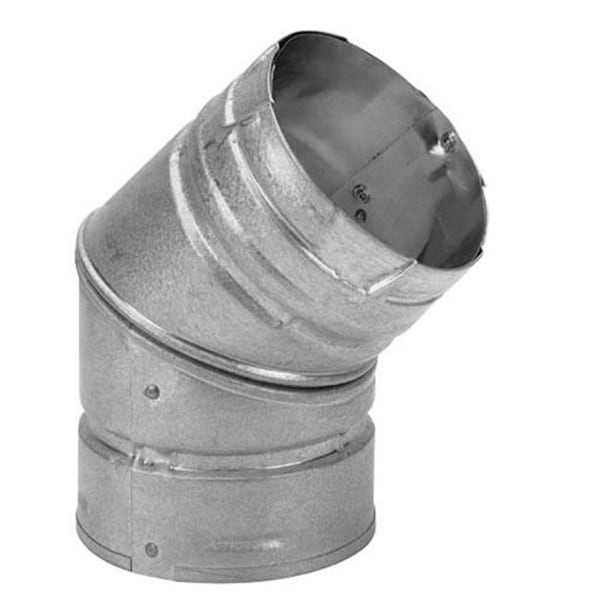

Duravent 4PVP-E45 PelletVent Pro 45 Degree Elbow 4 Inch

Product Description

The DURAVENT 4PVP-E45 PelletVent Pro 45 Degree Elbow is designed to offset pipe diagonally or horizontally around obstructions. It is suitable for stoves and inserts that use wood pellets and oil fuel, and can also vent corn and other biofuel products. The elbow swivels a full 360 degrees at the base.

• Elbow swivels a full 360° at the base.
• Laser-welded stainless steel inner walls and galvalume outer walls.
• Precise twist -lock connection requires no gaskets or sealants to achieve leak-resistant connections.

Product Highlights

The PelletVent Pro 45 Degree Elbow features laser-welded construction and a twist-lock connection for leak-resistant performance.

Product Information

Standard Information

• Brand: DURAVENT
• Manufacturer Part Number: 4PVP-E45

Technical Specifications

• Diameter: 4" ID and 4 5/8'' OD
• Construction Materials: Laser-welded, double-wall pipe with an inner wall of .012" stainless steel and a .018" laser-welded galvalume outer wall
• Clearances: 1" clearance to combustibles in the USA for appliances using wood pellets or oil. 1" clearance to combustibles in Canada for oil-burning (type L vent) appliances. 3" clearance to combustibles in Canada for wood pellet-burning appliances
• Listings: c-UL-us Listed to UL 641 (MH8381 and MH14420). ULC Listed to ULC S609, ULC/ORD C441 (CMH1439 and CMH1440)
• Connection: Twist-lock
• Angle: 45 deg
• Material: Stainless Steel
