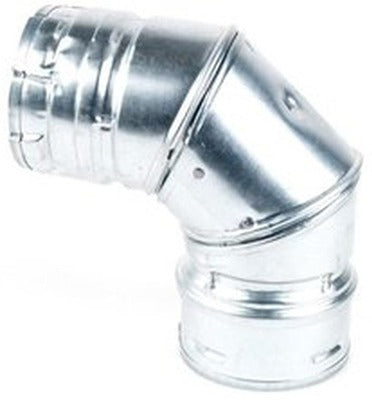

Duravent 3PVL-E90R Pellet Vent 90 Degree Elbow

Product Description

The DURAVENT 3PVL-E90R is a 3-inch pellet vent 90-degree elbow fitting designed for venting systems on wood pellet-burning stoves and inserts. The elbow swivels 360 degrees at its base, allowing the installer to orient the exit direction without rotating the entire vent run. The angle itself is fixed at 90 degrees and is not field-adjustable. It is UL Listed for 3-inch clearance to combustibles in both the United States and Canada. This fitting is intended for use wherever an offset or directional change is required in a pellet vent system.

This elbow is suited for residential pellet stove and pellet insert installations where the vent run must navigate around structural obstructions such as framing, shelving, or finished wall sections. It is used in horizontal or vertical vent runs as part of a listed pellet vent system. The patent-pending venting design is specific to stoves and inserts that burn wood pellets and is not intended for use with gas, oil, or conventional wood-burning appliances.

Key Features

• 3-inch pellet vent diameter for dedicated pellet stove and insert applications
• Fixed 90-degree angle for predictable directional changes in the vent run
• 360-degree swivel at base allows exit orientation without rotating upstream components
• UL Listed for 3-inch clearance to combustibles in the USA and Canada
• Patent-pending design specific to wood pellet venting systems

Compatibility

Designed for use with 3-inch pellet vent systems on wood pellet-burning stoves and inserts. Compatible fittings and pipe sections must be part of a listed pellet vent system; verify system compatibility before installation.

Installation Notes

Installation should be performed by a qualified hearth or HVAC technician familiar with solid-fuel venting codes, including applicable NFPA 211 requirements. Shut down and allow the appliance to cool completely before servicing or extending any vent run. Maintain the required 3-inch clearance to combustibles throughout the entire vent path. Do not mix this fitting with components from unlisted or incompatible vent systems.

Technical Specifications

• Vent Diameter: 3 inches
• Elbow Angle: 90 degrees
• Base Swivel: 360 degrees
• Clearance to Combustibles: 3 inches
• Listing: UL Listed (USA and Canada)
• Application: Wood pellet stoves and inserts
• Weight: 1.2 pounds
• Package Quantity: 2 per package

Standard Information

• Brand: DURAVENT
• Manufacturer Part Number: 3PVL-E90R
