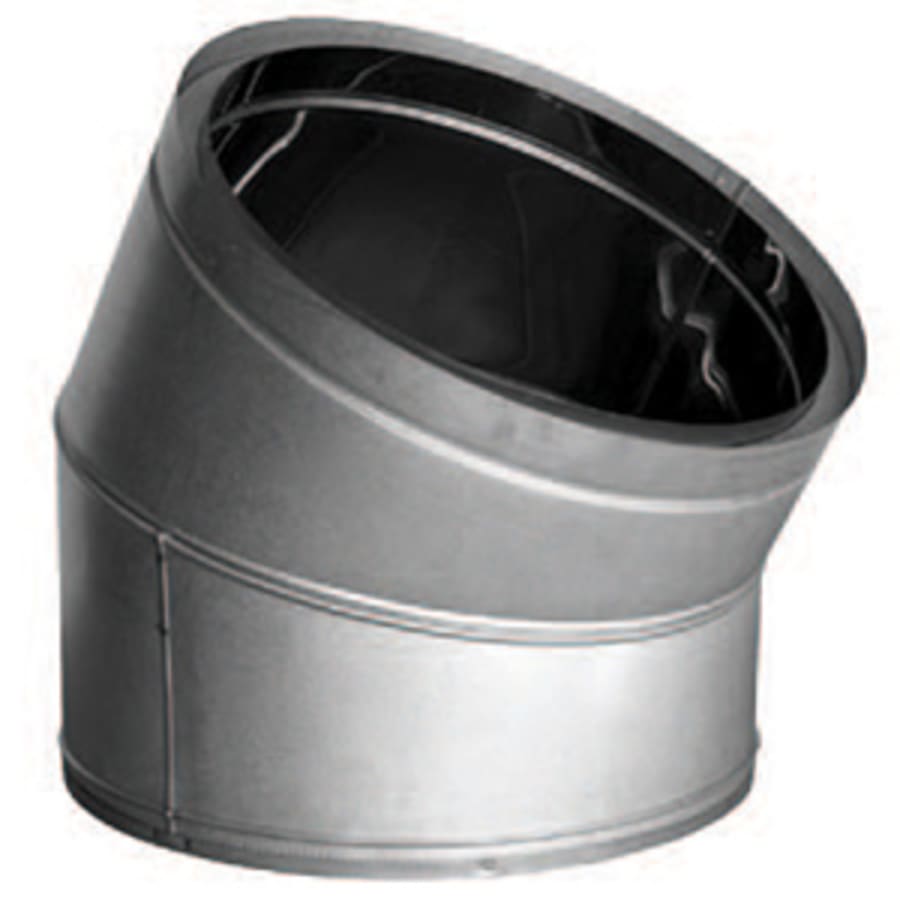

Duravent 14DT-E30 DuraTech Class A Chimney Pipe 30 Degree Elbow

Product Description

The DURAVENT 14DT-E30 DuraTech Class A Chimney Pipe is a galvanized 30-degree elbow used for offsets around obstructions. The inner wall is made of 430 stainless steel and the outer wall is galvalume. DuraTech chimney is tested and listed for continuous operation at 1000° F flue gas temperatures. It is an all-fuel chimney system for use with various appliances.

• Angle: 30°
• Inner Diameter: 14"
• Outer Diameter: 16"

Product Highlights

The DuraTech chimney pipe is UL Listed and suitable for use with wood stoves, fireplaces, furnaces, boilers, ranges, water heaters, or other appliances fueled by wood, oil, coal, or gas.

Product Information

Standard Information

• Brand: DURAVENT
• Manufacturer Part Number: 14DT-E30

Technical Specifications

• Angle: 30°
• Inner Diameter: 14"
• Outer Diameter: 16"
• UL Listed: UL Listed
• Material: Galvanized
• Configuration: Elbow
• Inner Pipe Material: 430 Stainless Steel
• Insulation Type: Thermal Tech
• Outer Pipe Material: Galvalume
• Pipe Class: Class A
• Pipe Shape: Round
• Vent Construction: Double Wall
• Fuel Type: All Fuel, Coal, Gas, Oil, Wood
• Application: Appliance, Boiler, Fireplace, Furnace, Ranges, Water Heater, Wood Stove
• Approved for Commercial Use: No
• Certifications: UL
• Collection: DuraTech
• UL Listing Number: UL 103, ULC S604
• Inner Pipe Gauge: 23
• Outer Pipe Gauge: 24
• Pipe Inside Diameter: 14 in.
