Ducane 69J46 Liquid Line Bag Assembly

Product Description

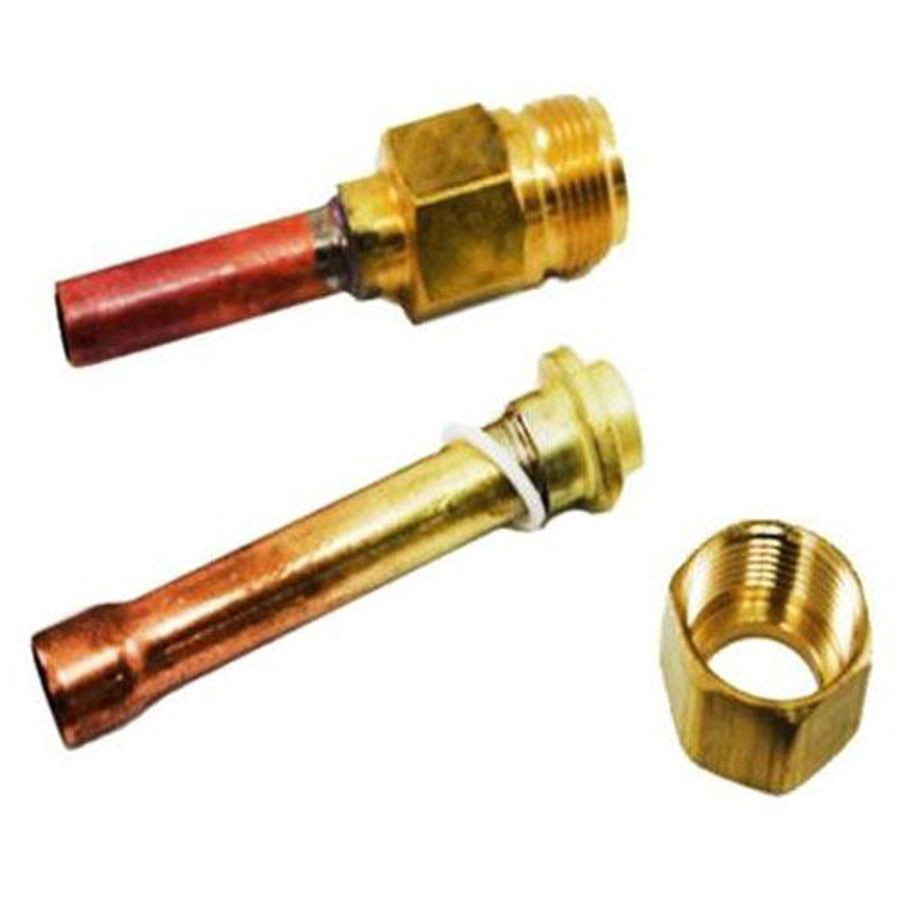

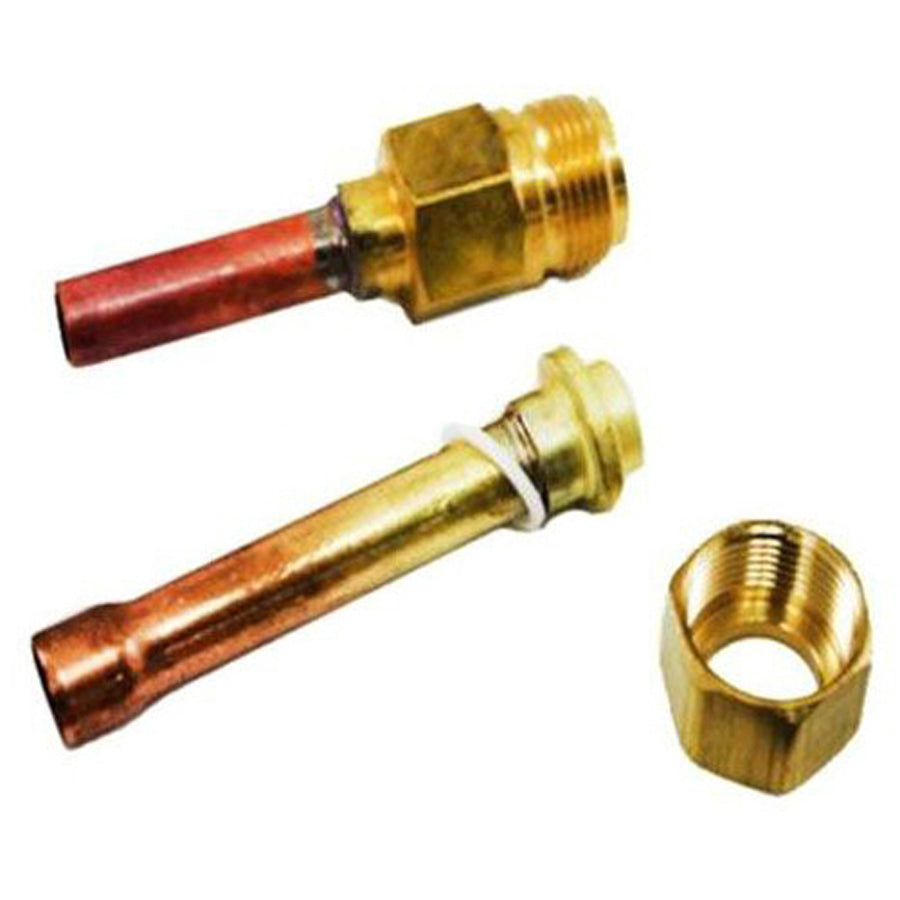

The DUCANE 69J46 is a liquid line bag assembly designed for use in refrigeration systems. This assembly provides the connection hardware and components needed to complete or service the liquid line in a refrigerant circuit. Liquid line assemblies carry high-pressure liquid refrigerant from the condenser or receiver to the metering device, making a secure, leak-free connection essential to system efficiency and safety. At 2.15 pounds and compact enough to ship in a package measuring 10.00 inches by 7.00 inches by 1.00 inch, this assembly is straightforward to transport to a job site. HVAC-R technicians performing system installation or service will find this a direct OEM-sourced component.

This liquid line bag assembly is intended for refrigeration applications. It is suited for residential or light commercial refrigeration systems where the liquid line circuit requires repair, replacement, or completion during a new install. The component dimensions of 3.3 inches in length, 7.5 inches in width, and 1.5 inches in height indicate a compact assembly appropriate for tight equipment spaces typical in refrigeration installations.

Key Features

• Complete bag assembly format keeps all components together for efficient job-site use
• Compact dimensions: 3.3 inches long, 7.5 inches wide, 1.5 inches tall
• Lightweight at 2.15 pounds for easy handling during installation
• Designed for liquid line service in refrigeration systems
• OEM part number 69J46 ensures direct manufacturer sourcing

Compatibility

Designed as an OEM-style liquid line bag assembly for refrigeration systems where DUCANE part number 69J46 is specified.

Installation Notes

Installation should be performed by a licensed HVAC-R technician holding the appropriate EPA Section 608 certification for handling refrigerants. Always recover refrigerant and depressurize the system before disconnecting any liquid line components. Follow all applicable local mechanical codes and manufacturer service procedures when making refrigerant line connections. Verify all connections are leak-free before recharging the system.

Technical Specifications

• Length: 3.3 inches
• Width: 7.5 inches
• Height: 1.5 inches
• Packed Dimensions: 10.00 inches x 7.00 inches x 1.00 inch
• Gross Weight: 2.15 pounds
• Volume: 0.021 cubic feet
• Application: Refrigeration
• UPC: 138352

Standard Information

• Brand: DUCANE
• Manufacturer Part Number: 69J46
