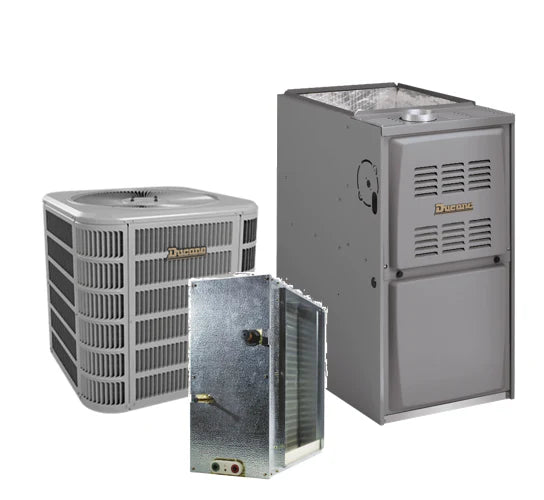

Ducane 3.0 Ton 14+ SEER Condensing Unit The 4AC16L delivers significant energy savings and efficiencies of up to 16 SEER when paired with a matched Ducane variable-speed or constant-torque furnace or air handler
Overview:
- 3.0 Ton 14+ SEER Condensing Unit
- 28.25 Inches Width x 28.25 Inches Depth
- 3/8LL 7/8SL
- 30A MOCP
- 205 Lbs - Ships via Freight
Compressor:
- High-efficiency scroll compressor
- Internally protected against high temperature motor overload conditions
- Heavy-duty materials
Cabinet:
- Full metal louvered construction to protect the coil/hail protection
- Individual louver panels; 4 screws to remove for ease of coil cleaning and service
- Corner-mounted controls for easy service
- Baked polyester paint finished over galvanized steel for maximum durability
- 45-degree offset valves for easy service
Coils:
- Omniguard total corrosion protection technology designed coil
- Enhanced tube-and-fin coil design featuring MHT Technology
- Lanced fins for maximum heat transfer
- Every coil factory tested for leakproof construction
- Raised coil prevents debris from impeding airflow
Components:
- Factory installed high pressure switch
- Thread-on pressure switches with Schrader core for simple, quick replacement
- Filter drier shipped loose for installation flexibility
- Fan orifice for smoother airflow and sound level reduction
- Charged for 15 feet of line set
Warranty:
- 10 year limited warranty on compressor
Ducane 80G1UH045AE12 - 1.5-3 Ton (80G1UH045AE12)
- 1.5-3 Ton
- 44 MBH Input
- 80% AFUE
- 1 Stage Gas Furnace
- ECM CT Motor
- 14.5 Inches Width x 33 Inches Height x 28 in. Depth
- 111 Lbs
Advanced Distributor Products HH56636A265A2102AP - 1.5-3.0 Ton Copper/Aluminum
- 1.5-3.0 Ton Copper/Aluminum
- Galvanized Cabinet
- Horizontal Slab Coil
- W/ TXV
- 31.0 Inches Width x 10.0 Inches Depth x 22.75 Inches Height
- 44 Lbs
