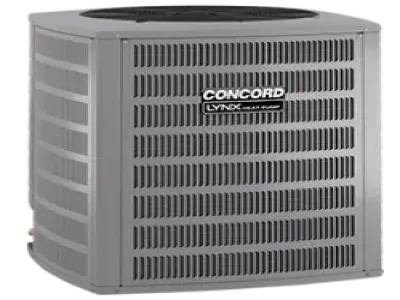

Ducane 16D04 16 SEER Condenser Concord 3.5 Ton

Product Description

The Ducane 16D04 is a 16 SEER condenser designed for residential applications. This unit offers a nominal capacity of 3.5 tons and operates at 208/230 VAC, making it suitable for most standard electrical systems.

• ENERGY STAR certified for energy-saving performance
• Permanently lubricated condenser fan motor
• OmniGuard corrosion protection technology

Product Highlights

The Ducane 16D04 offers a heavy-duty, 1-stage compressor, ensuring reliable performance without the need for annual maintenance. The unit is built to withstand corrosive elements, extending its life significantly.

Product Information

Standard Information

• Brand: Ducane
• Manufacturer: Allied Air Enterprises

Technical Specifications

• Type: Louvered
• Color: Gray
• Material: Galvanized Steel
• Motor HP: 1/6 hp
• Fuse Size: 40 A
• Dimensions: 28-1/4 inches W x 28-1/4 inches D x 37 inches H
• SEER Rating: 16
• Sound Level: 76 dBA
• Power Source: 208/230 VAC, 1 ph, 60 Hz
• Certifications: AHRI Certified, ENERGY STAR Certified, ETL Listed
• Nominal Capacity: 3.5 ton
• Refrigerant Type: R-410A
• Suction Line Size: 7/8 inches
• Discharge Line Size: 3/8 inches
