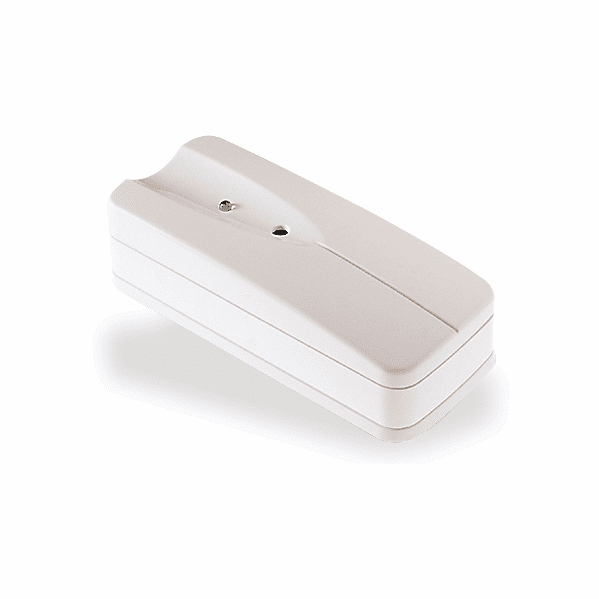

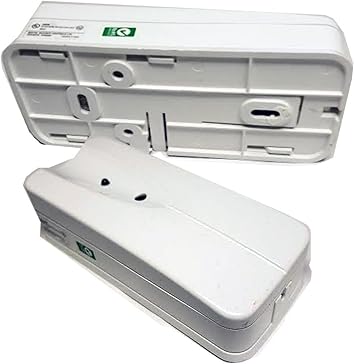

Dsc WLS912l-433 Wireless Glassbreak Detector

Product Description

The DSC WLS912L-433 is a wireless glassbreak detector designed to detect the sound of shattering framed glass. It uses Dynamic Signal Processing (DSP) to accurately detect plate, laminated, wired (safety) and tempered glass types, while rejecting false alarm sounds. It has a built-in RF transmitter to establish a supervised, one-way communications link with a DSC wireless security system.

• Based on the Acuity glassbreak detector
• Tamper-activated test mode: should be tested using the AFT-100 glassbreak simulator
• 2 lithium batteries included

Product Highlights

The WLS912L-433 features a high-performance microphone and an installer selectable Dip Switch with 2 different levels of detection that allow optimising false alarm immunity for certain acoustic environments.

Product Information

Standard Information

• Brand: DSC
• Manufacturer Part Number: WLS912L-433

Technical Specifications

• Item model number: WLS912L-433
• Manufacturer: DSC
• Operating Voltage: 3.0V (two 3V Lithium batteries)
• Operating Temperature: 32°F to 122°F (0°C to 50°C)
• Relative Humidity: 5 to 95% max. non condensing
• Battery Capacity: 1500 mAh
• Low Battery level: 2.65V
• Input rating: 3Vdc (max)/0.2mA
