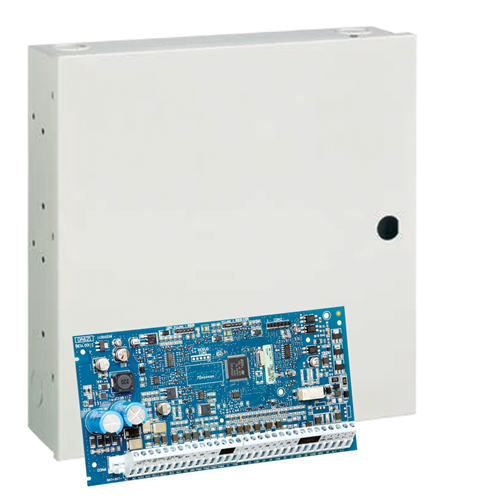

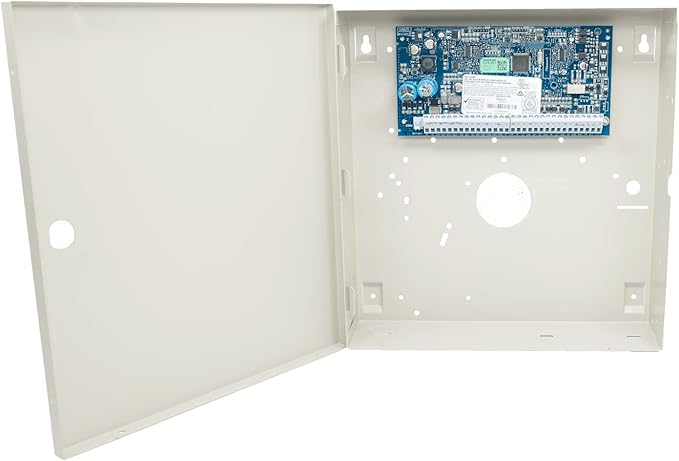

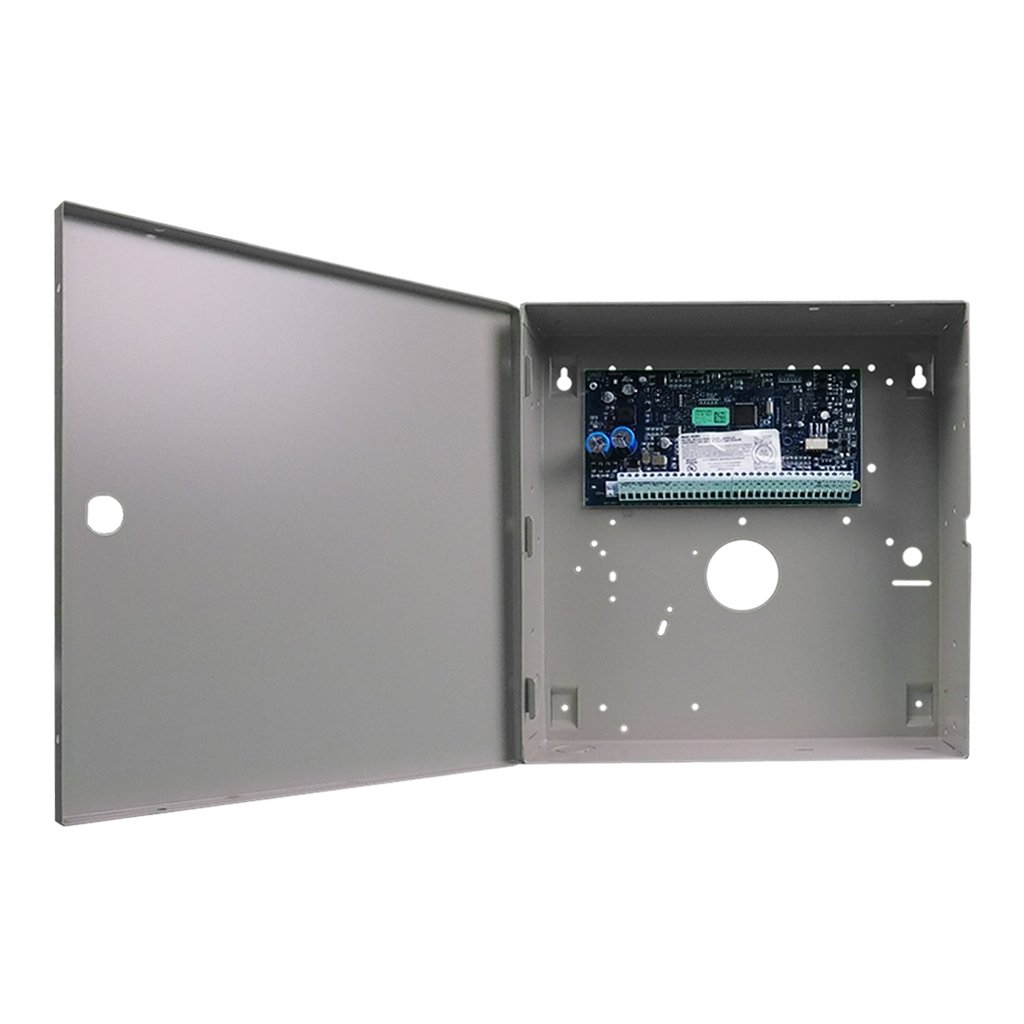

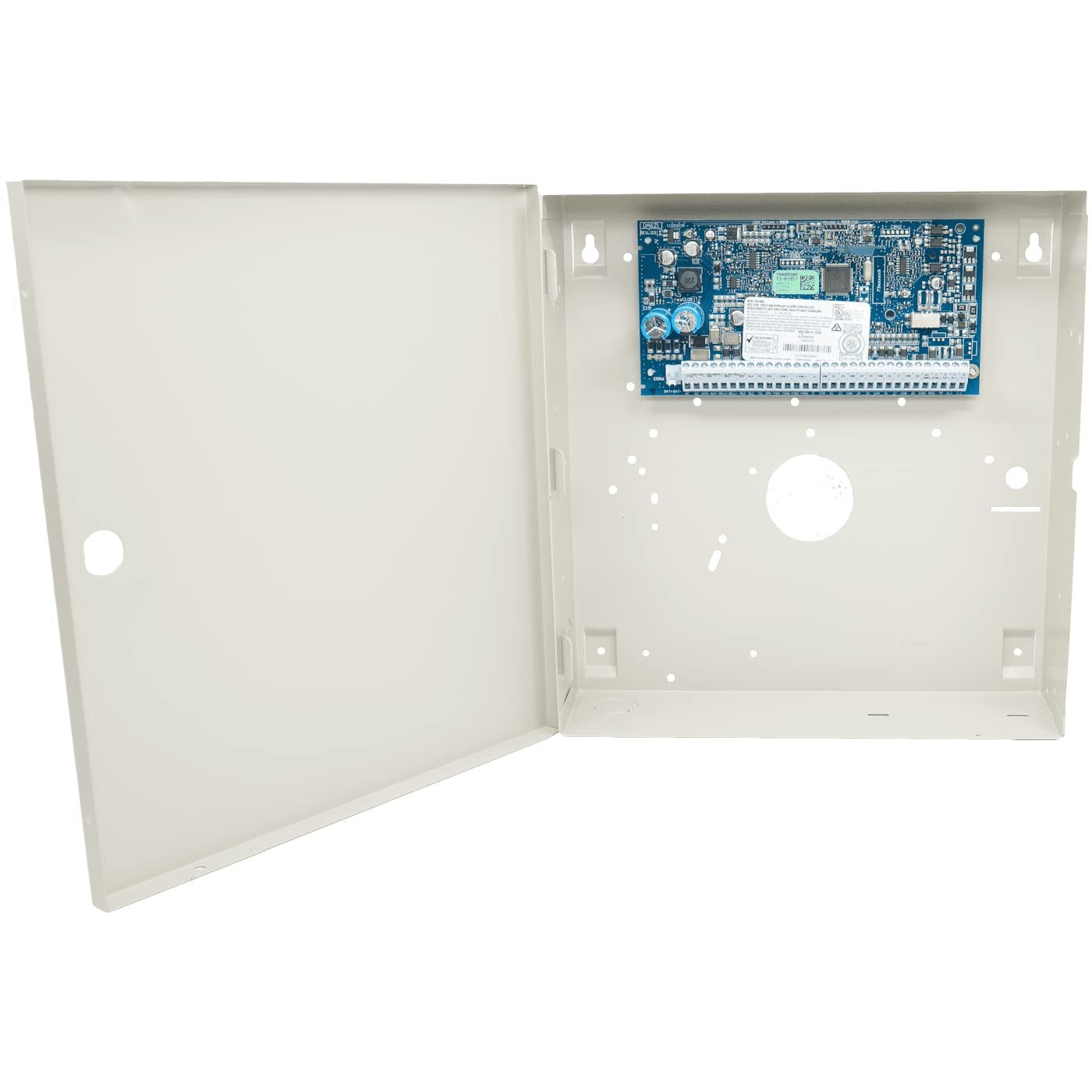

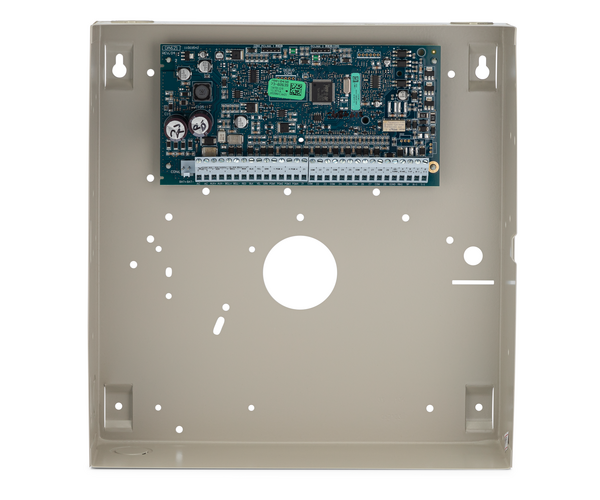

Dsc HS2064nk PowerSeries Neo Security Control Panel

Product Description

The DSC HS2064NK PowerSeries Neo Security Control Panel features 8 on-board zones and is expandable to 64 wireless and hardwired zones. It includes 4 PGM outputs, expandable to 80 (HSM2204, HSM2208), and supports template programming. The panel connects up to 8 supervised keypads with keypad zones, has 8 partitions, a 500-event buffer, and 500 user codes.

• 8 on-board zones
• Expandable to 64 wireless and hardwired zones
• 4 PGM outputs: expandable to 80 (HSM2204, HSM2208)

Product Highlights

Ideal for medium to large homes and small businesses, this security control panel supports up to 500 user codes and 8 keypads.

Product Information

Standard Information

• Brand: DSC
• Manufacturer Part Number: DSC-HS2064NK

Technical Specifications

• On-board zones: 8
• Expandable zones: 64 wireless and hardwired
• PGM outputs: 4 (expandable to 80 with HSM2204, HSM2208)
• Partitions: 8
• Event buffer: 500
• User codes: 500
• Keypads: Up to 8 supervised keypads with keypad zones
• Brand: DSC
• Power Source: Corded Electric
• Connectivity Technology: Wireless
• Installation Type: Screw-In
• Alert Type: Motion
• Control Method: Remote
• Manufacturer: Dsc
• Part Number: HS2064NK
• Supplier Part #: HS2064NK
• Input Voltage: 16.5 Volt AC
• Input Frequency: 50/60 Hertz
• Input Current: 85 Milliampere
• Power Consumption: 40 VA
