Product Description

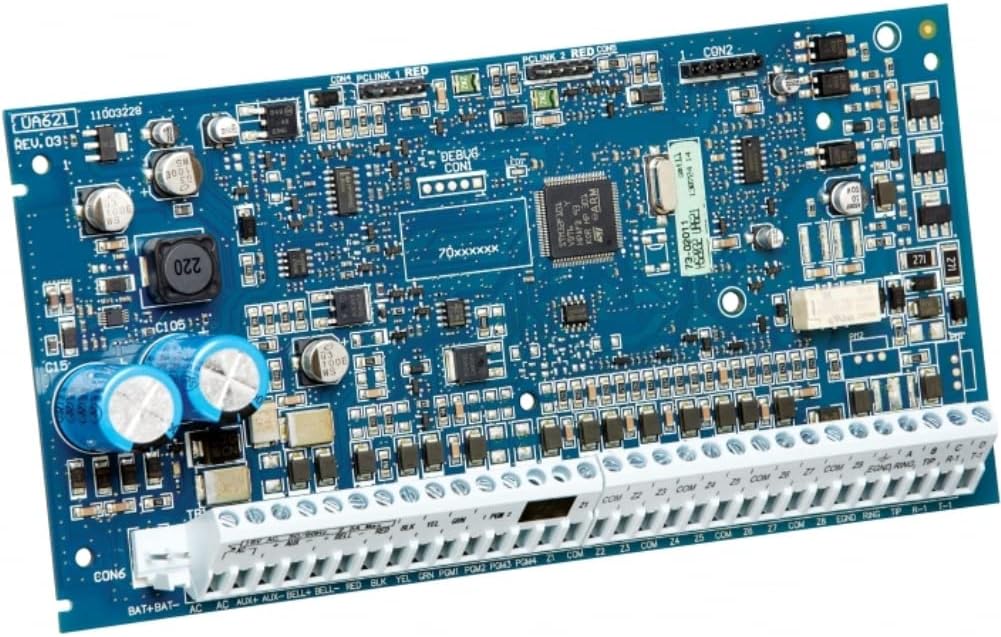

The DSC HS2032NK PowerSeries Neo security system control panel combines wired and wireless technology, supporting up to 32 zones. It features expandable PGM outputs, supervised keypads, partitions, and user codes. Interconnected smoke detector support and compatibility with smart hub thermostats enhance safety and convenience. The system is designed for residential and commercial applications.
- 8 on-board zones, expandable to 32 wireless and hardwired zones
- 2 PGM outputs, expandable to 38
- Connect up to 8 supervised keypads with keypad zones
Product Highlights
Hybrid security system with flexible scalability, PowerG wireless technology, and smart home integration.
Product Information
Standard Information
-
Brand: DSC
-
Manufacturer Part Number: HS2032NK
Technical Specifications
-
On-board Zones: 8
-
Expandable Zones: Expandable to 32 wireless and hardwired zones
-
PGM Outputs: 2 PGM outputs: expandable to 38 (HSM2204, HSM2208)
-
Keypads: Connect up to 8 supervised keypads with keypad zones
-
Partitions: 4
-
Event Buffer: 500-event buffer
-
User Codes: 72
-
Brand: DSC
-
Display Type: LCD
-
Operating Temperature: 20 Degrees Celsius
-
Item Model Number: HS2032NKCP01
-
Power Supply: 16.5 VAC/40 VA @ 50/60 Hz
-
Current Draw (Panel): 85 mA (Nominal)
-
Auxiliary & Output: 13.75 ± 5% Vdc /700 mA
-
Bell Output: Yes
-
Operating Environment: 32° to 120° F (0° to 49° C)
-
Relative Humidity: 93%
-
Total Zones Supported: 32
-
Keypad Zone Expansion: Yes
-
Hardwired Zone: Yes
-
Wireless Zone Expansion: Yes
-
Number of Hardwired Keypads: 8
-
Number of Wireless Keypads: 8
-
Number of Wireless Receivers: 1
-
Number of Wireless Repeaters: 8
-
On-Board PGM Outputs: 2
-
Number of Main Panel Low-Current PGM Outputs: 1
-
Number of Main Panel High-Current PGM Outputs: 1
-
PGM Expansion: Yes
-
Number of Additional High-Current PGM Outputs: 4
-
Number of Additional Low-Current PGM Outputs: 32
-
Number of Access Codes: 71 + master
-
Panel Event Buffer: 500
-
Phone Line Supervision: Yes
-
Siren Supervision: Yes
-
SIA CP-01 Compliant: Yes
-
SMS Command and Control: Yes
-
Upload/Download Support: Yes
-
Direct-Connect (PC Link) Downloading Support: Yes
-
DLS SA End-User Downloading Support: Yes
-
Internet Alarm Communications: Yes
-
Audio Alarm Verification: with HSM2955(R)
-
Cellular Alarm Communications: Yes
-
Battery Required: Yes
-
Approvals: FCC/IC, UL/ULC, SIA CP-01, CSFM, CNC, Anatel
