Metal-Fab 7M90 Double Wall Adjustable Elbow, 7 in, SureLock, 90 deg, Galvanized

Product Description

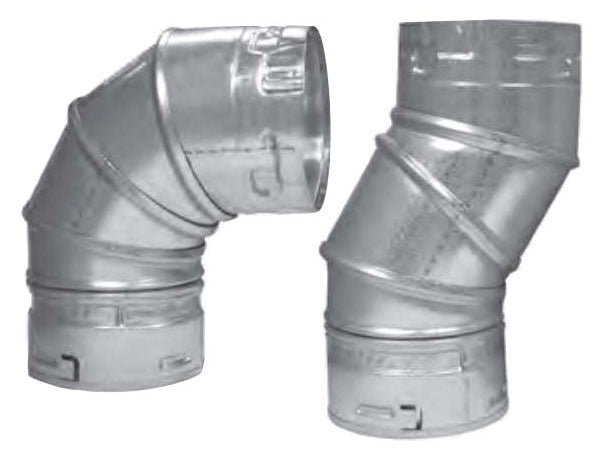

The Metal-Fab 7M90 is a double wall adjustable elbow designed for gas vent applications. This product features a round design and a 90-degree angle for effective venting in various setups. Built with a combination of aluminum alloy and galvanized steel, it ensures durability and reliability.

• Constructed from aluminum alloy and G90 galvanized steel
• Designed for 90-degree applications
• UL 441 and NFPA 54/211 compliant

Product Highlights

This elbow is suitable for use with gas boilers, fireplaces, and furnaces. It is designed for quick installation with a locking tab system, eliminating the need for screws.

Product Information

Standard Information

• Brand: Metal-Fab
• MPN: 7M90

Technical Specifications

• Type: Double Wall, Adjustable, Short Radius, Type B
• Size A: 7 inch
• Size B: 7 inch
• Angle: 90 Degree
• Material: Aluminum Alloy (Inner Wall), G90 Galvanized Steel (Outer Wall)
• Material Thickness: 0.012 inch (Inner Wall), 0.018 inch (Outer Wall)
• Temperature Rating: 530 Deg F
• Applicable Standard: UL 441, NFPA 54/211
• Clearance: 1 inch
