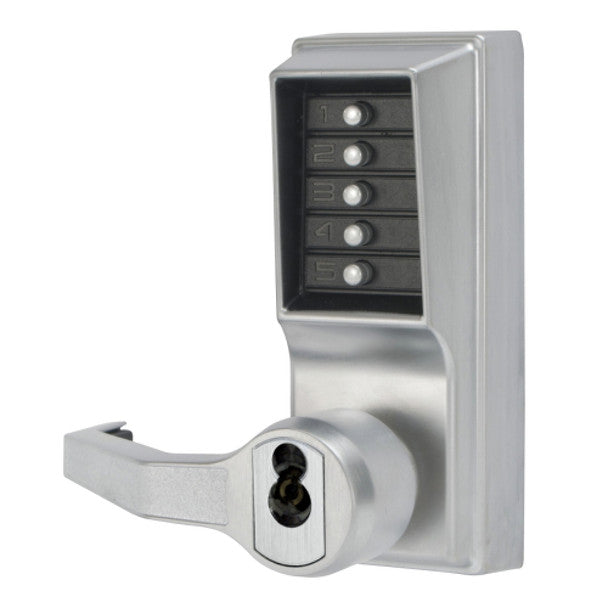

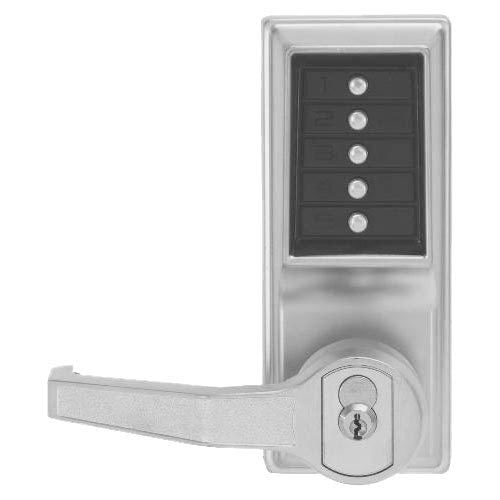

Dormakaba LL1021C-26D-41 Simplex Lever Lock Corbin Russwin Prepped

Product Description

The DORMAKABA LL1021C-26D-41 Simplex push button lock offers combination entry and is prepped for Corbin Russwin IC key override (less core). This mechanical pushbutton lock provides a convenient way to control access between public and private areas without the need for batteries. It is designed for left-hand or left-hand reverse doors.

• Single access code for all users
• Easily programmed via keypad without removing the lock
• Cylindrical latch with 3-hour UL/ULC fire rating on "A" labeled doors

Product Highlights

The LL1021C-26D-41 is a mechanical pushbutton lock that offers key override, easy programming, and fire rating.

Product Information

Standard Information

• Brand: DORMAKABA
• Manufacturer Part Number: LL1021C-26D-41

Technical Specifications

• Handing: Left Hand or Left Hand Reverse Only
• ADA-compliant lever: Yes
• Lock Type: Mechanical Lock, No Batteries needed
• Finish: 26D Satin Chrome (626)
• Keying: Corbin Russwin Key Override (less core)

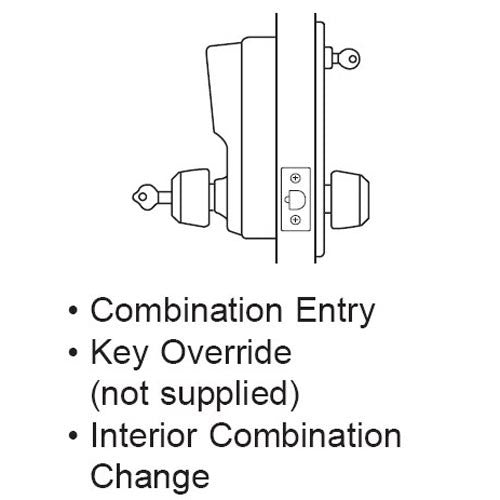

• Function: Cylindrical Lock, Cipher Lock, Combination Entry, Corbin Russwin Key Override (less core)

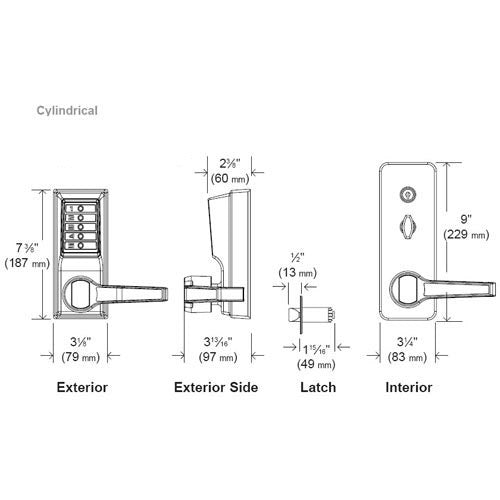

• Locking Device: Cylindrical 1/2 (13mm) throw latch, floating face plate 2-3/4 (70mm) backset (UL listed)
• Operation Mode: Single credential access
• Certification and Standards: Americans with Disabilities Act (ADA), Compliance with D.O.D. 5220.22M; Highly weather resistant, 3-hour UL/ULC fire rating for "A" label doors
• Fire Rating: 3 Hours
• Cylinder Type: Corbin Russwin 6-Pin LFIC Less Core
• Lever/Knob Design Family: Curved Return Lever
• Lock Platform: Cylindrical Lock with Keypad Trim
• Latch Backset Dimension: 2-3/4"
• Access Function: Field Configurable
• Keypad Type: Mechanical
• Series Name: Simplex
• Door Thickness: 1-3/8" to 2-1/4"
• Model: LL1021C-26D-41
• Series: Simplex L1000 Series
• Grade: ANSI/BHMA Grade 1
• Backset: 2-3/4 in. (70mm)
• Latch Throw: 1/2 in. (13mm)
• Key Override: Corbin Russwin LFIC (core not included)
• Installation: Commercial
• Std. Strike Type: ASA
