Product Description

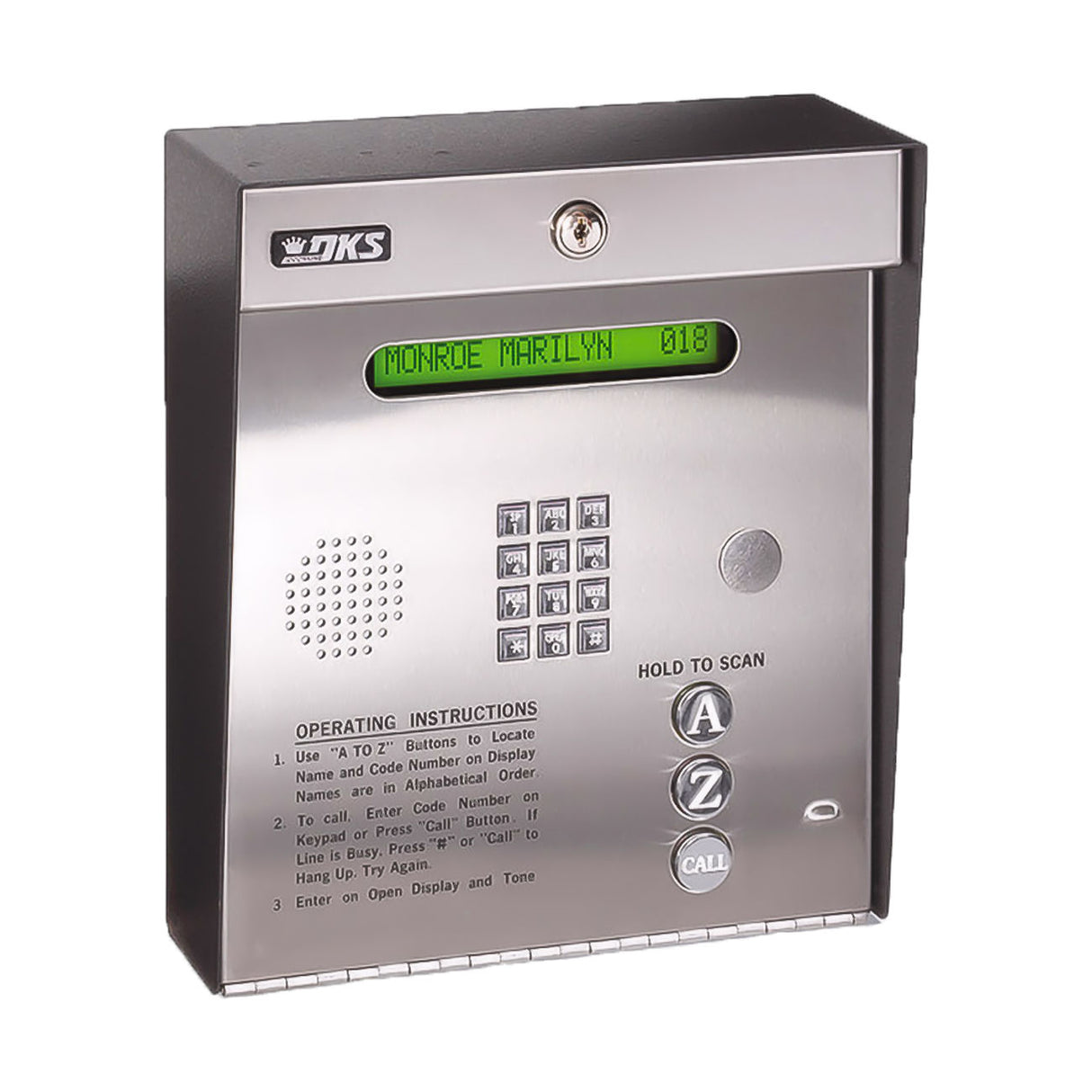

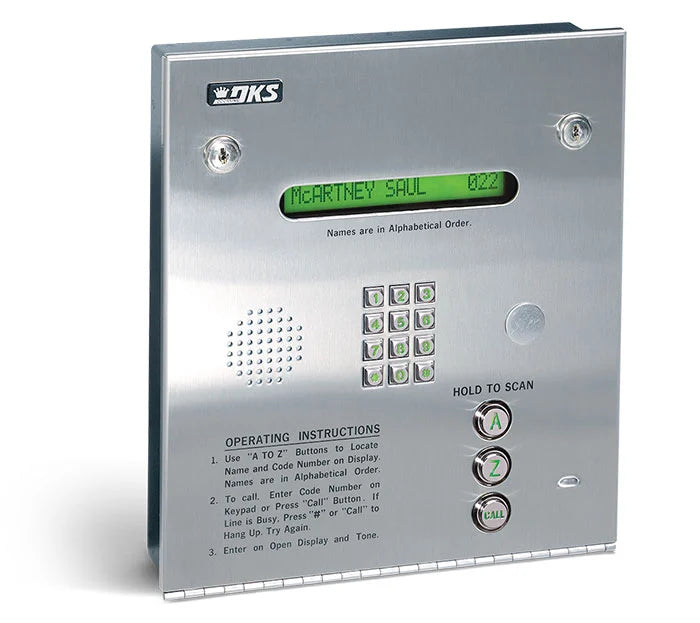

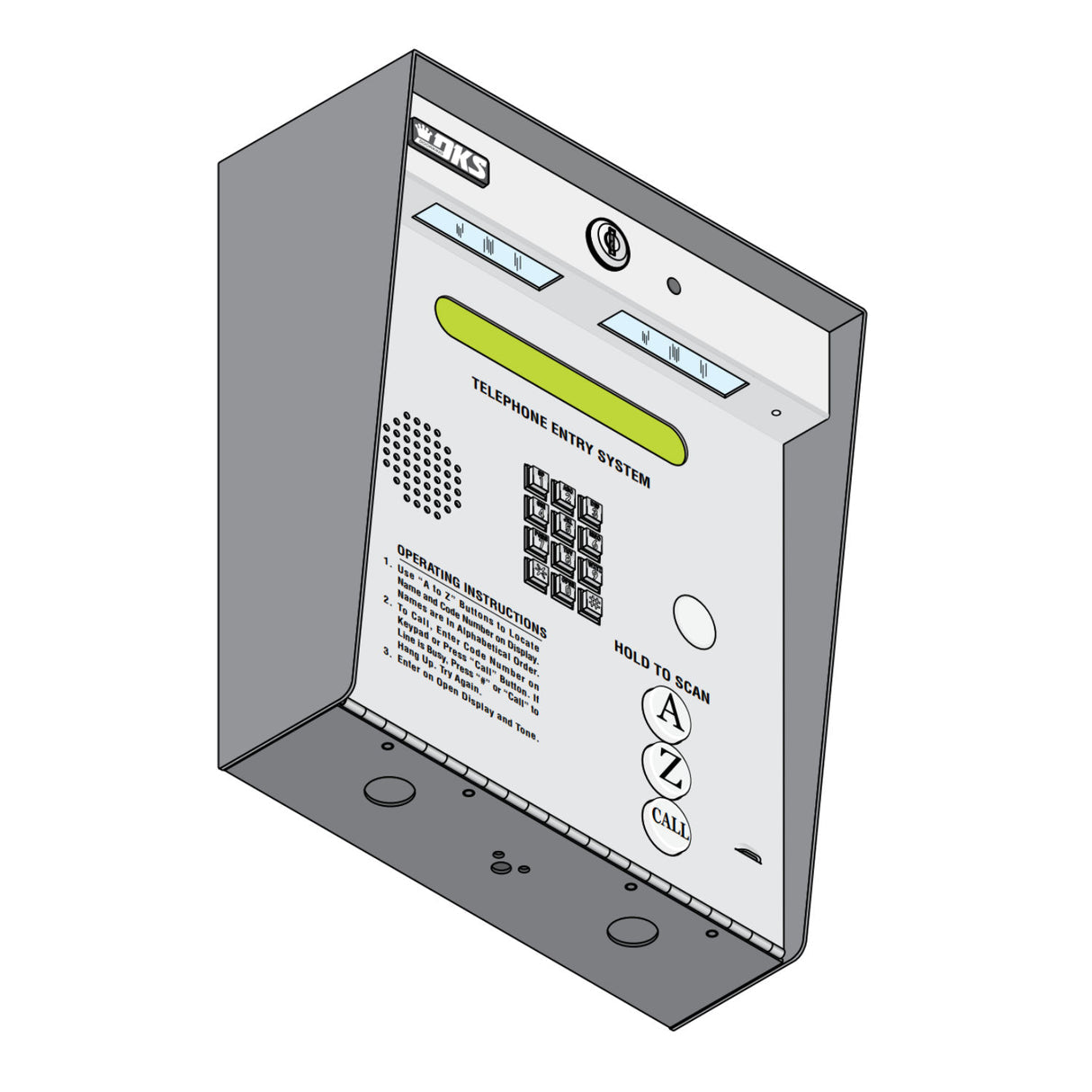

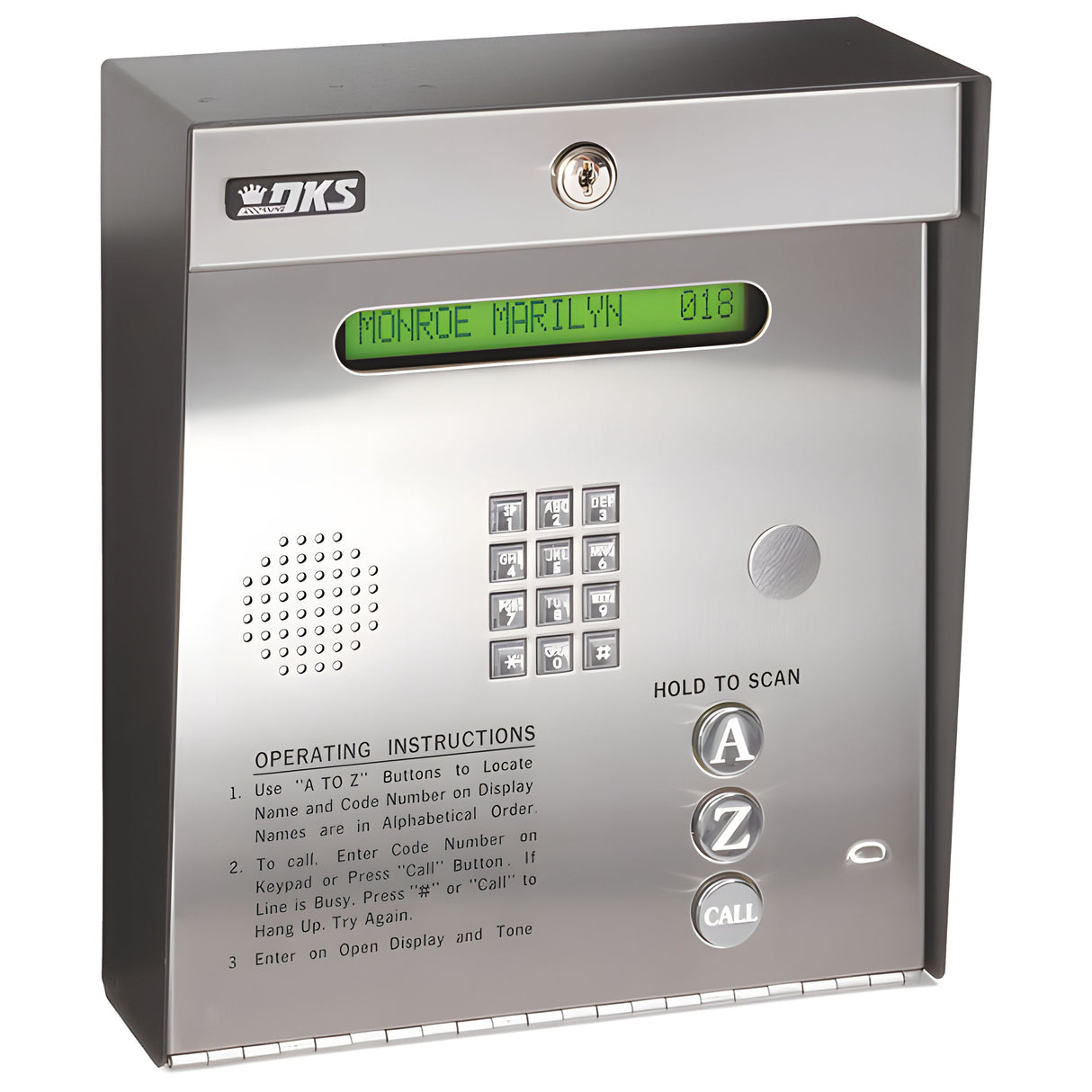

The DOORKING 1835-080 Series stores up to 3,000 phone numbers and 8,000 device codes and can be expanded to control up to 48 wired access points. The Model 1835 is an ideal Telephone Entry System suited for apartment and gated community applications as well as office buildings and industrial sites.
- Communicate with Guests via Phone
- Entry System Programming via Cloud or Windows Account Manager
- 1 Line, 20 Character LED Directory Screen
Product Highlights
Ideal for apartment, gated community, office buildings, and industrial sites. Features a built-in electronic directory, Remote Account Manager programming software, and card reader interface.
Product Information
Standard Information
-
Brand: DOORKING
-
Manufacturer Part Number: 1835-080
-
Country of Origin: America
Technical Specifications
-
True Full Duplex Communication: Stores up to 3000 telephone numbers and names (names are limited to 15 characters max).
-
Stores up to 255 area codes: Transaction buffer stores last 8000 events.
-
Stores up to 8000 access card codes: dependent on system memory.
-
31 security (permission) levels: 29 programmable with 4 time zones each.
-
8 hold open time zones: Three anti-pass back configurations: passive, active and trap.
-
Elevator control: (note 1) for up to 8 elevators, each serving 64 floors.
-
Expandable: (note 2) to control up to 48 wired entry points (or 24 wirelessly).
-
4-digit entry codes: one for each telephone number.
-
3 form ":c:" dry contact relays: Single-line directory display uses super-twist LCD with 1/2-inch characters.
-
EEPROM memory chip: Requires touch-tone, loop-start central office phone line.
-
Two 16 VAC, 20 VA power transformers supplied: FCC (US): DUF6VT-12874-OT-T
-
DOC (CAN): 1736 4528 A
-
Compliant with UL 294: ETL listed.
-
Environmental: 10
F to 145
(-12
C to 62
C)
-
Directory: Electronic Scrolling
-
PC Programmable: Yes
-
Maximum Memory Capacity: 3000
-
Manufacturer: DKS DoorKing
-
Product Type: Intercom
-
Application Type: Gate | Door | Barrier | Garage
-
Installation Type: Residential | Commercial | Industrial | HOA
-
Voltage: 16.5V
-
Power Type: AC
-
Mounting Type: Surface mount
-
UL/ETL Certification: Yes
-
Part Number: 1835-080
-
Memory Capacity: 3,000 users
-
Power Supply: 16.5 VAC, 30 VA transformer
-
Construction: Heavy-duty aluminum enclosure
-
ADI Part Number: 7L-1835080
-
Brand Name: DoorKing Systems
-
Product Model: 1835
-
Product Usage: Access Control, Apartment, Building, Commercial, Door Entry, Elevator, Gate, Gated Community, Industrial, Office, Residential
-
Depth: 4.8"
-
Form Factor: Surface Mount
-
Height: 13"
-
Width: 11.3"
-
Input Voltage: 16V AC
-
Power Source: AC
-
Mount Type: Surface Mount
