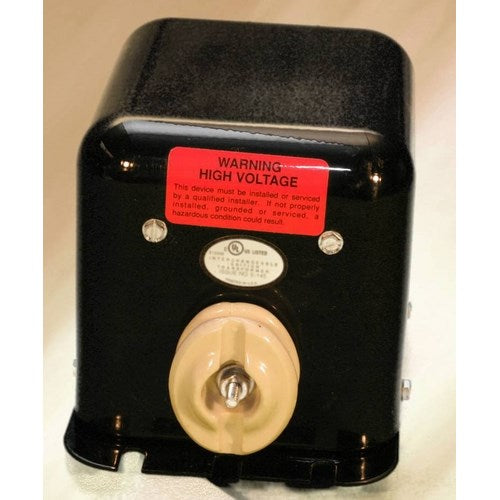

Dongan A06-SA6 DON 175VA 6000V Ignition Transformer

Product Description

Dongan A06-SA6 is an enclosed ignition transformer designed for various industrial applications. It features a primary voltage of 120 VAC and a secondary voltage of 6000 VAC. This transformer has a power rating of 175 VA and operates at a frequency of 60 Hz. With a maximum amperage of 20 mA and a 100% duty cycle, it is suitable for continuous operation in demanding environments.

• Application: Industrial Oil and Gas Applications
• Dimensions: 4.44 inches L x 6.75 inches W x 4.31 inches H
• Type: Enclosed, NEMA 1 rated

Product Highlights

This product is specifically designed to power ignition systems in furnaces and other industrial equipment.

Product Information

Standard Information

• Manufacturer: Dongan Electric
• UPC: 78249012020

Technical Specifications

• Power Rating: 175 VA
• Secondary Voltage: 6000 VAC
• Frequency Rating: 60 Hz
• Maximum Amperage Rating: 20 mA
• Temperature Rating: 55 deg C
• Duty Cycle: 100%
• Enclosure: NEMA 1
• Phase: 1
