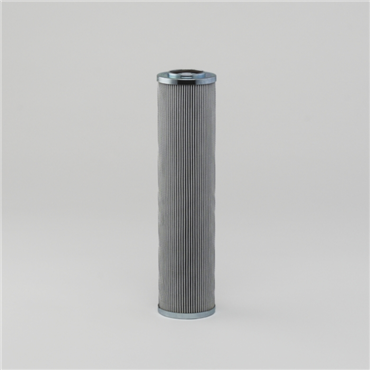

Donaldson P566223 Cartridge Fuel Filter

Product Description

The Donaldson P566223 is a cartridge fuel filter designed to provide efficient filtration for high-pressure systems. This filter helps protect individual components from contaminants, ensuring smooth operation and longevity. Selecting the right filter is crucial and should be based on the series of the head, bowl length, and required micron rating. With synthetic media, this filter delivers enhanced protection over a wide range of micron ratings.

• 3.1 inches outside diameter
• Cartridge style
• Designed for high-pressure applications

Product Highlights

The P566223 filter features advanced pleat pack design for premium protection and long filter life.

Product Information

Standard Information

• Brand: Donaldson
• Part Number: 110026769

Technical Specifications

• Inner Diameter: 1.62 inches, 41.15 mm
• Outer Diameter: 3.1 inches, 78.84 mm
• Overall Length: 16.79 inches, 426.5 mm
• Seal Material: Viton
• Media Type: Synthetic
• Collapse Burst Pressure: 290.08 psi, 20 bar
• Efficiency Beta Rating: 25 Micron @ Beta 1000
• Weight: 1.7 LB
