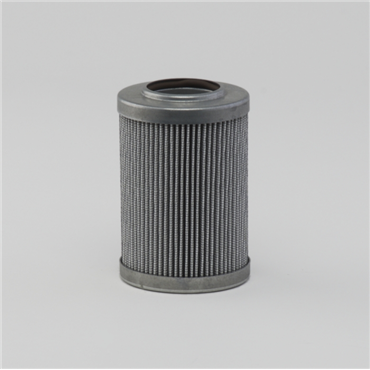

Donaldson P566207 Cartridge Fuel Filter

Product Description

The Donaldson P566207 is a cartridge fuel filter designed for various hydraulic applications. It features a synthetic media type that effectively captures contaminants, ensuring optimal filtration performance. The outer diameter measures three point one inches, suitable for many hydraulic systems.

• Effective filtration with twelve micron efficiency
• Durable hydraulic cartridge design
• Constructed with Viton seal material

Product Highlights

This filter is designed to provide reliable performance in filtering fuel and ensuring the longevity of your systems.

Product Information

Standard Information

• Brand: Donaldson
• Part Number: 100720120

Technical Specifications

• Inner Diameter: 1.62 inches, 41.15 mm
• Outer Diameter: 3.1 inches, 78.84 mm
• Overall Length: 4.65 inches, 118.1 mm
• Collapse Burst: 290.08 psi, 20 bar
• Media Type: Synthetic
• Seal Material: Viton
• Efficiency Beta: 12 Micron @ Beta 1000
• Filter Series: W061, W350, FPK04, W620
• Weight: 0.75 lbs
• EAN or UPC: 742330174999
