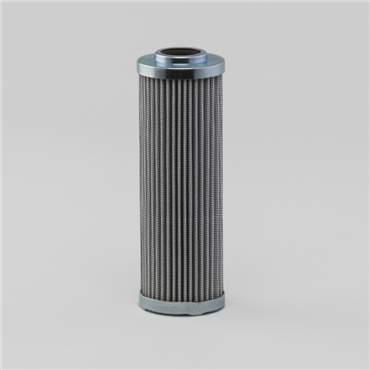

Donaldson P564860 Cartridge Fuel Filter

Product Description

The Donaldson P564860 is a cartridge fuel filter designed to meet high filtration standards. This filter features a size of two point two inches in outer diameter and is engineered for high efficiency and durability.

• Overall length is six point six nine inches
• Media type is synthetic to optimize filtering performance
• Inner diameter is one inch, ensuring compatibility with various systems

Product Highlights

This cartridge-style fuel filter is ideal for ensuring clean fuel delivery in automotive and industrial applications. With a collapse burst rating of four hundred fifty millimeters, it can withstand high-pressure environments.

Product Information

Standard Information

• Brand: Donaldson
• Part #: 100181541

Technical Specifications

• Overall Length: 6.69 inches, 169.9 mm
• Inner Diameter: 1 inch, 25.5 mm
• Outer Diameter: 2.2 inches, 56 mm
• Media Type: Synthetic
• Seal Material: Viton
• Collapse Burst: 449.62 psi, 31 bar
• Efficiency Beta: 12 Micron @ Beta 1000
• Weight: 0.8 LB
