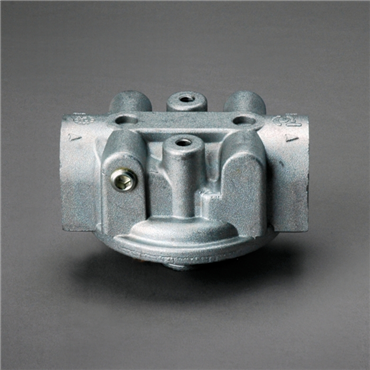

Donaldson P563288 Head Assembly

Product Description

The Donaldson P563288 Head Assembly is designed for built-in system protection. This part is essential for maintaining the efficiency of return line filters. Its robust construction allows it to manage high surge flows effectively, ensuring the product meets the operational demands of your system.

• 1/2-14 NPT inlet and outlet sizes
• Inline mounting design
• Easy spin-on filter element replacement

Product Highlights

The P563288 assembly is crucial for the effective filtration in various applications.

Product Information

Standard Information

• Brand: Donaldson
• Part Number: 100181773

Technical Specifications

• Height: 2.4 inches (61 mm)
• Length: 3.74 inches (95 mm)
• Weight: 0.7 lb
• Inlet Size: 1/2-14 NPT
• Outlet Size: 1/2-14 NPT
• Thread Size: 1-12 UN
• Bypass Valve: Yes
• Max Flow GPM (Head Only): 15
• Filter Series: SP15/25
